Lamar 16,000 GVWR Dump Trailers
Lamar 16,000 GVWR dump trailers are built for the heaviest-duty jobs. With tandem 8K axles, a 7-gauge steel floor, and reinforced scissor lift, these trailers are made to handle serious loads like rock, scrap, and equipment with ease. Whether you're on a construction site or handling large-scale cleanup, Lamar's 16K dump trailers deliver the strength, stability, and reliability professionals count on. If you are interested, call us at (317) 743-0020 to get yours today!

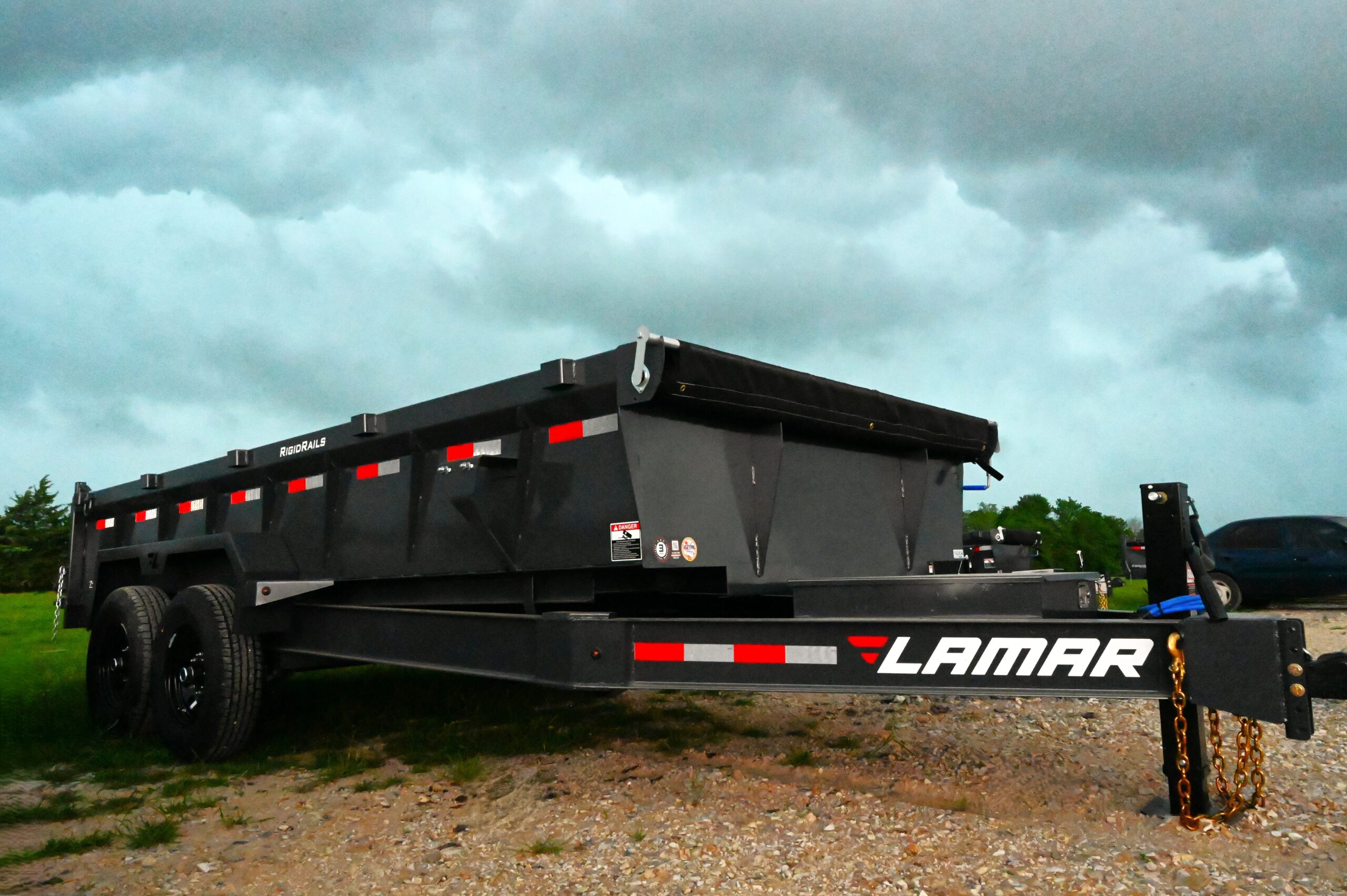

Scissor Dump Sizes & Payloads
-
- DL288312 – 83″x12′: Weight – 4,725 lbs; Payload – 11,275 lbs – $12,190
- DL288314 – 83″x14′: Weight – 4,870 lbs; Payload – 11,130 lbs – $12,990
- DL288316 – 83″x16′: Weight – 5,465 lbs; Payload – 10,535 lbs – $13,690

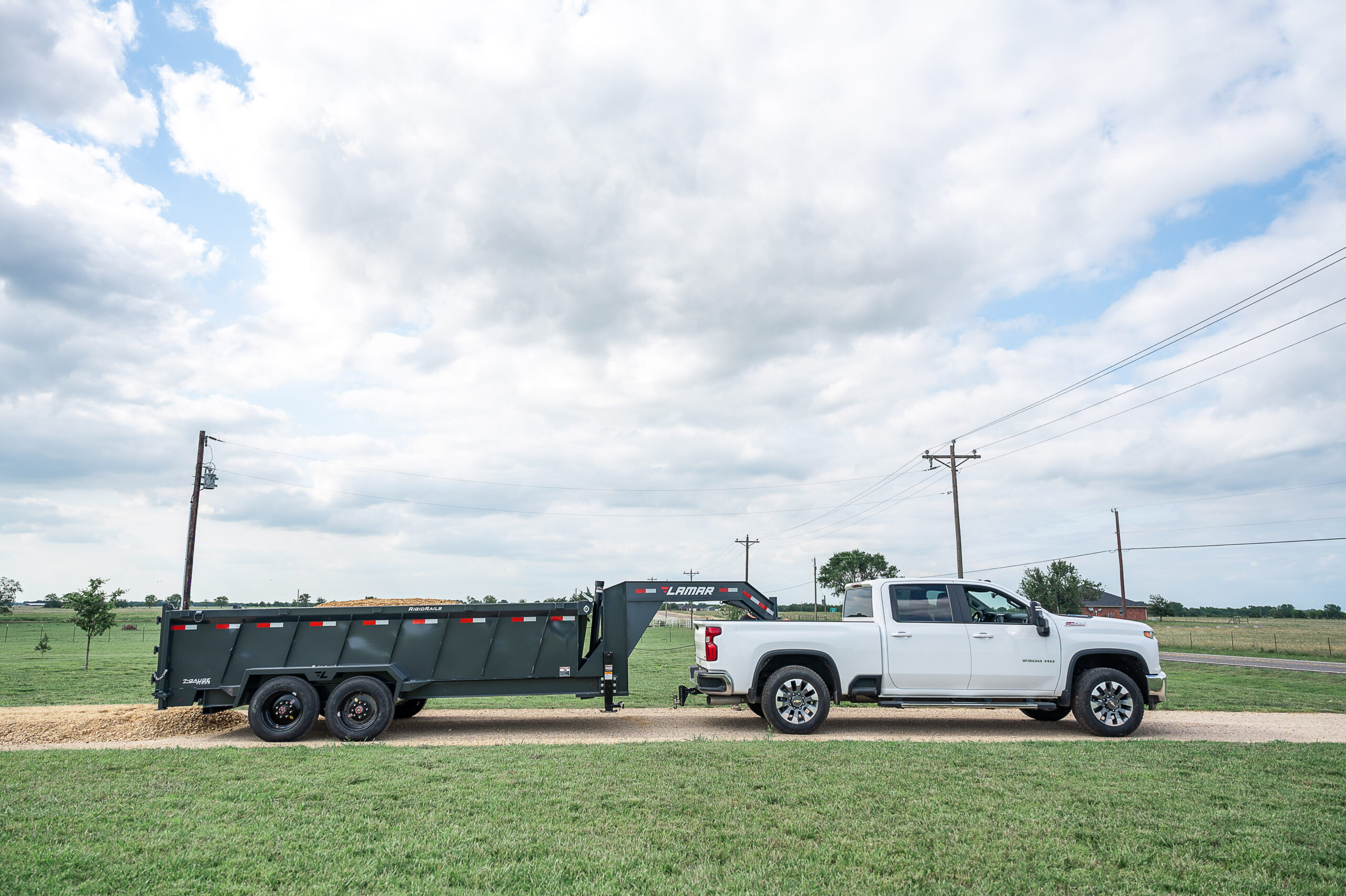

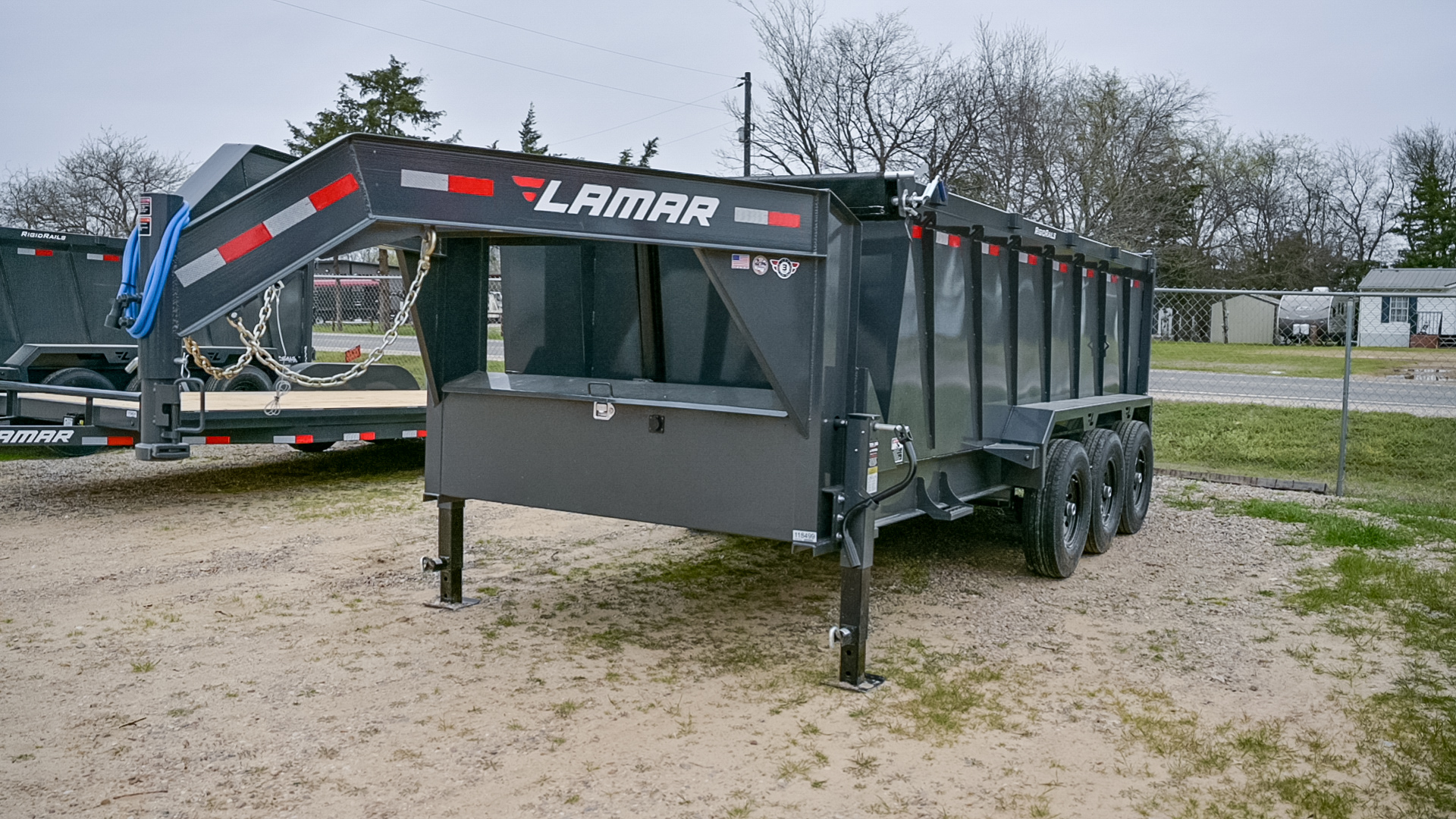

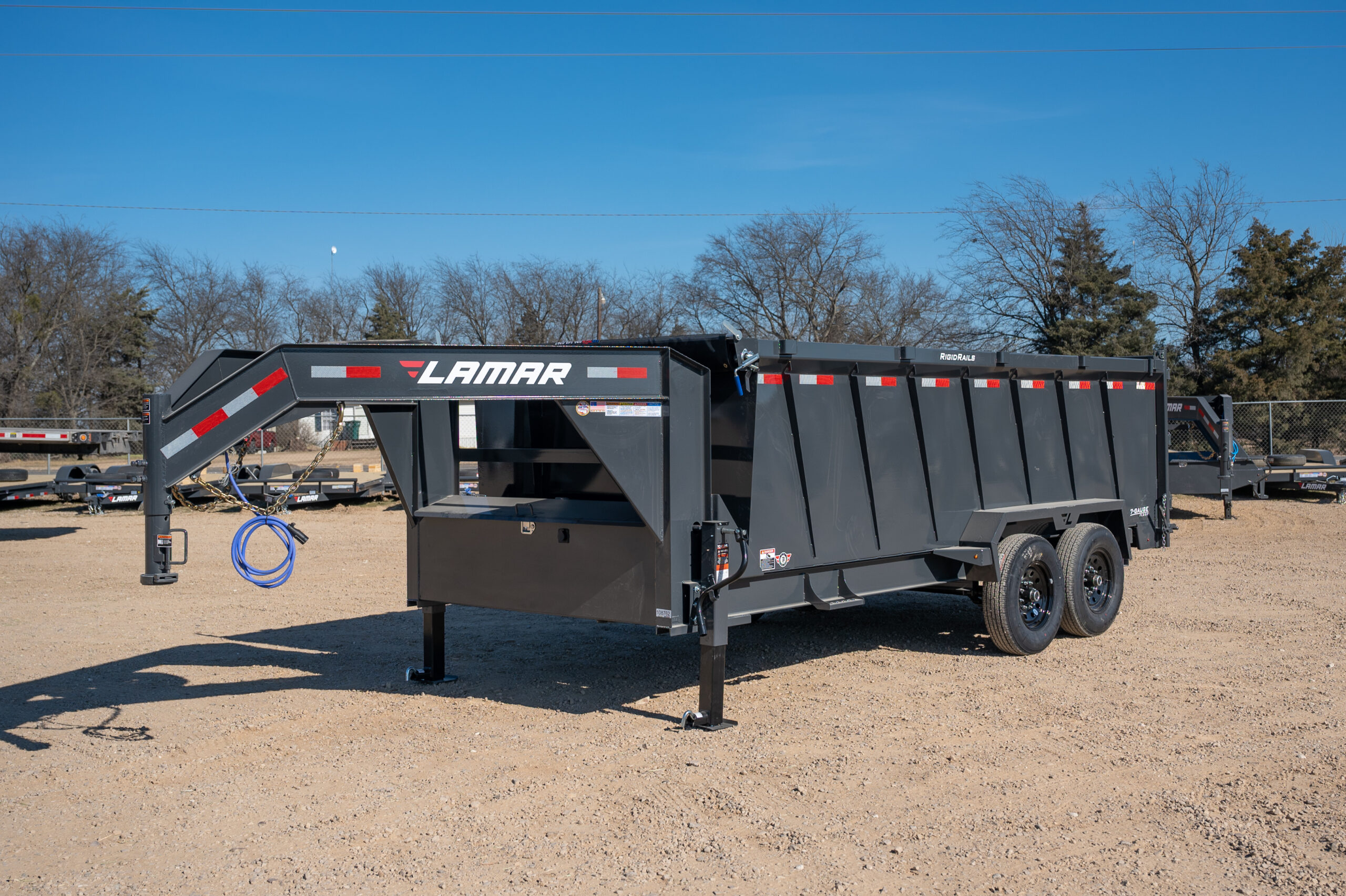

Gooseneck Version:
-
- DL288314 – 83″x14′: Weight – 5,370 lbs; Payload – 10,630 lbs – $14,290
- DL288316 – 83″x16′: Weight – 5,965 lbs; Payload – 10,035 lbs – $14,990

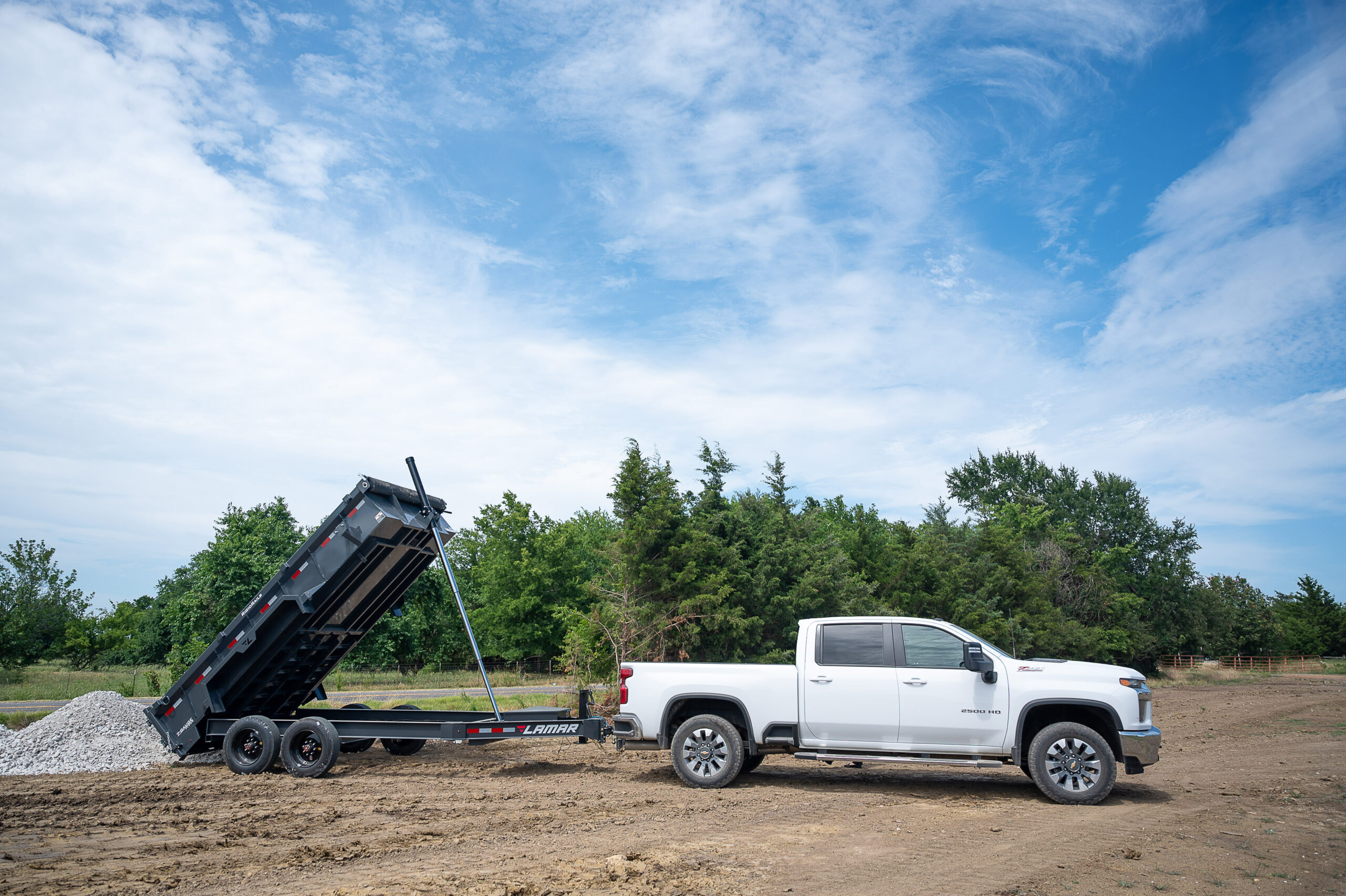

Telescopic Dump Sizes & Payloads
-
- DT288314 – 83″x14′: Weight – 4,765 lbs; Payload – 11,235 lbs – $13,190
- DT288316 – 83″x16′: Weight – 5,360 lbs; Payload – 10,640 lbs – $13,890
Gooseneck Version:
-
- DT288314 – 83″x14′: Weight – 5,265 lbs; Payload – 10,735 lbs – $14,490
- DT288316 – 83″x16′: Weight – 5,860 lbs; Payload – 10,320 lbs – $15,190
*Standard pricing listed. Additional options extra.
Brakes & Suspension:
- 8K Oil Bath Electric Brake Spring Axles
Tires:
- 215/75 R17.5 (H) 16 Ply SS Tire
- Spare Tire Mount
Frame:
- 8″ 13 lb I-Beam Frame
- 24″ Sides (6 – 8 cubic yards)
- 12″ Spaced Crossmembers

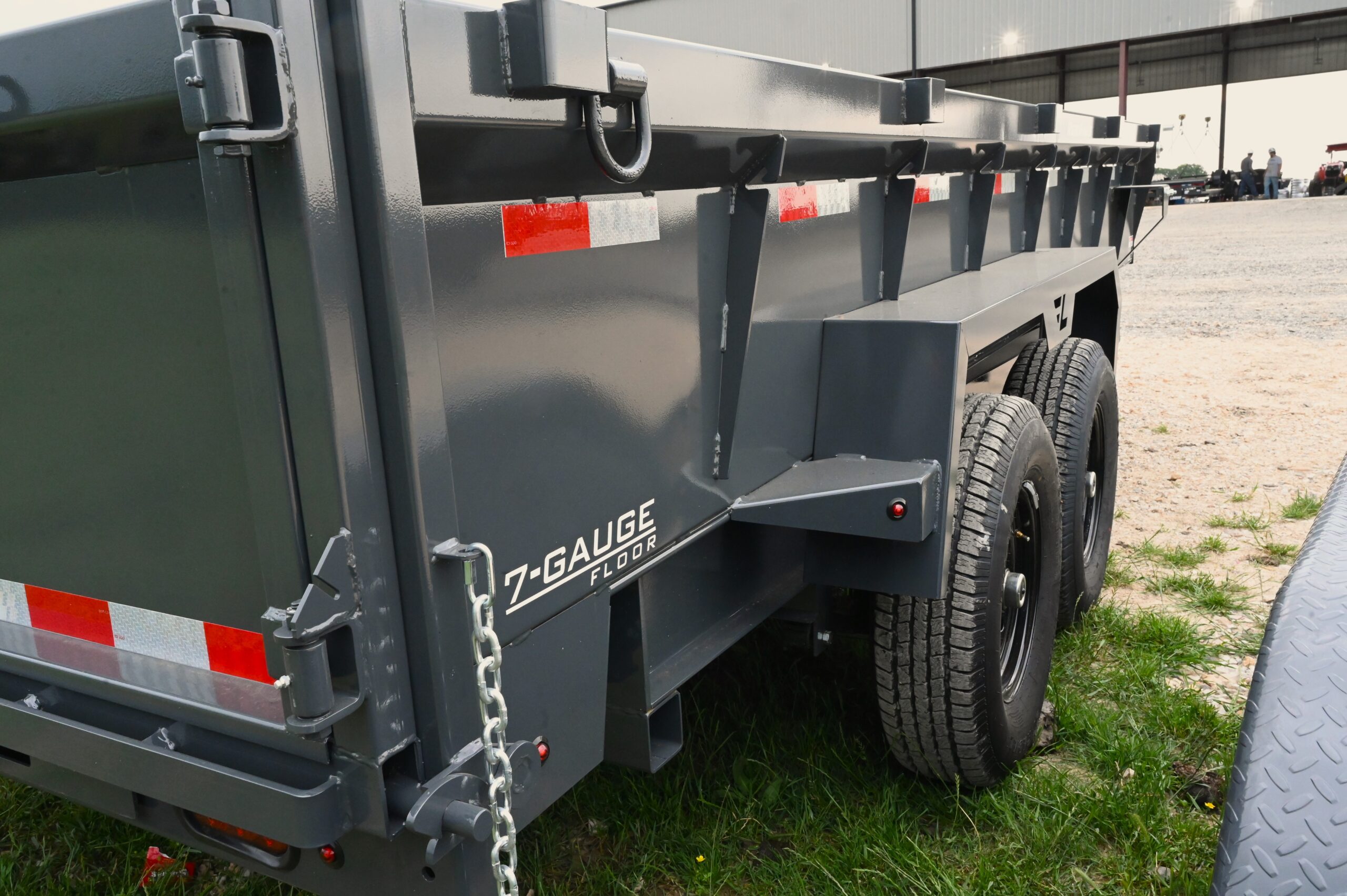

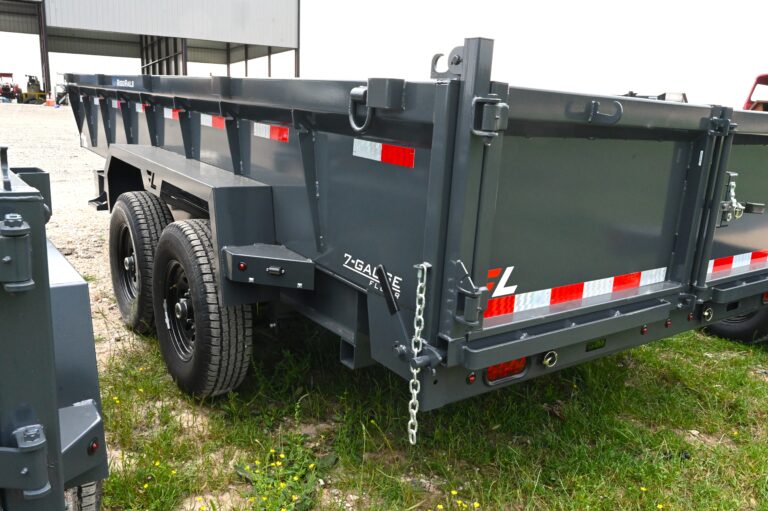

- 7 Gauge Floor
Hitch:
- 2-5/16″ 21K Demco Adjustable Cast Iron Coupler – Bumper Pull

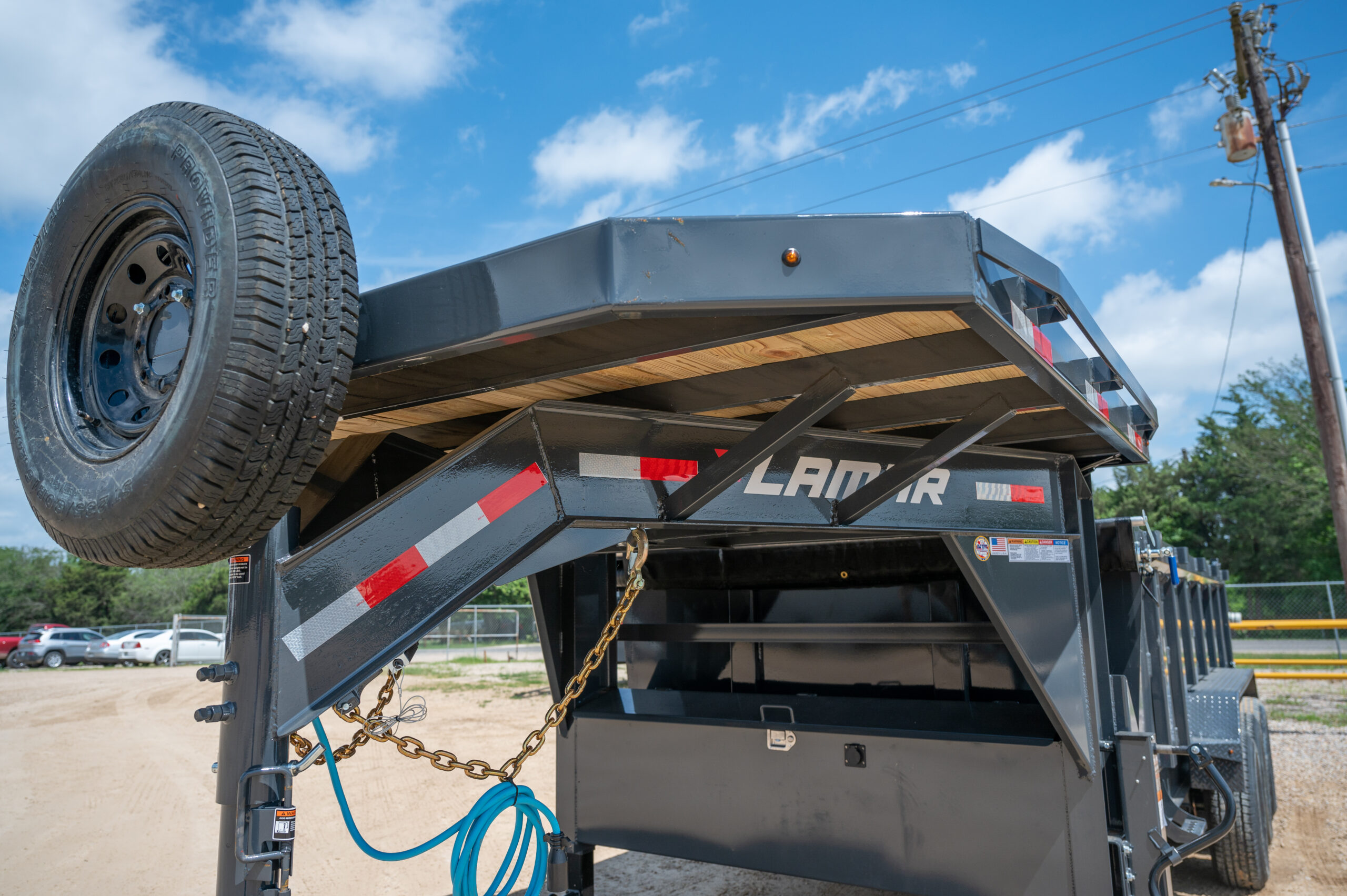

- 2-5/16″ 25K Gooseneck Coupler – Gooseneck
Jack:
- Single 10K Drop-Leg Jack – Bumper Pull
- Dual 10K Drop-Leg Jack – Gooseneck
Cargo Loading:
- Front Tool Box

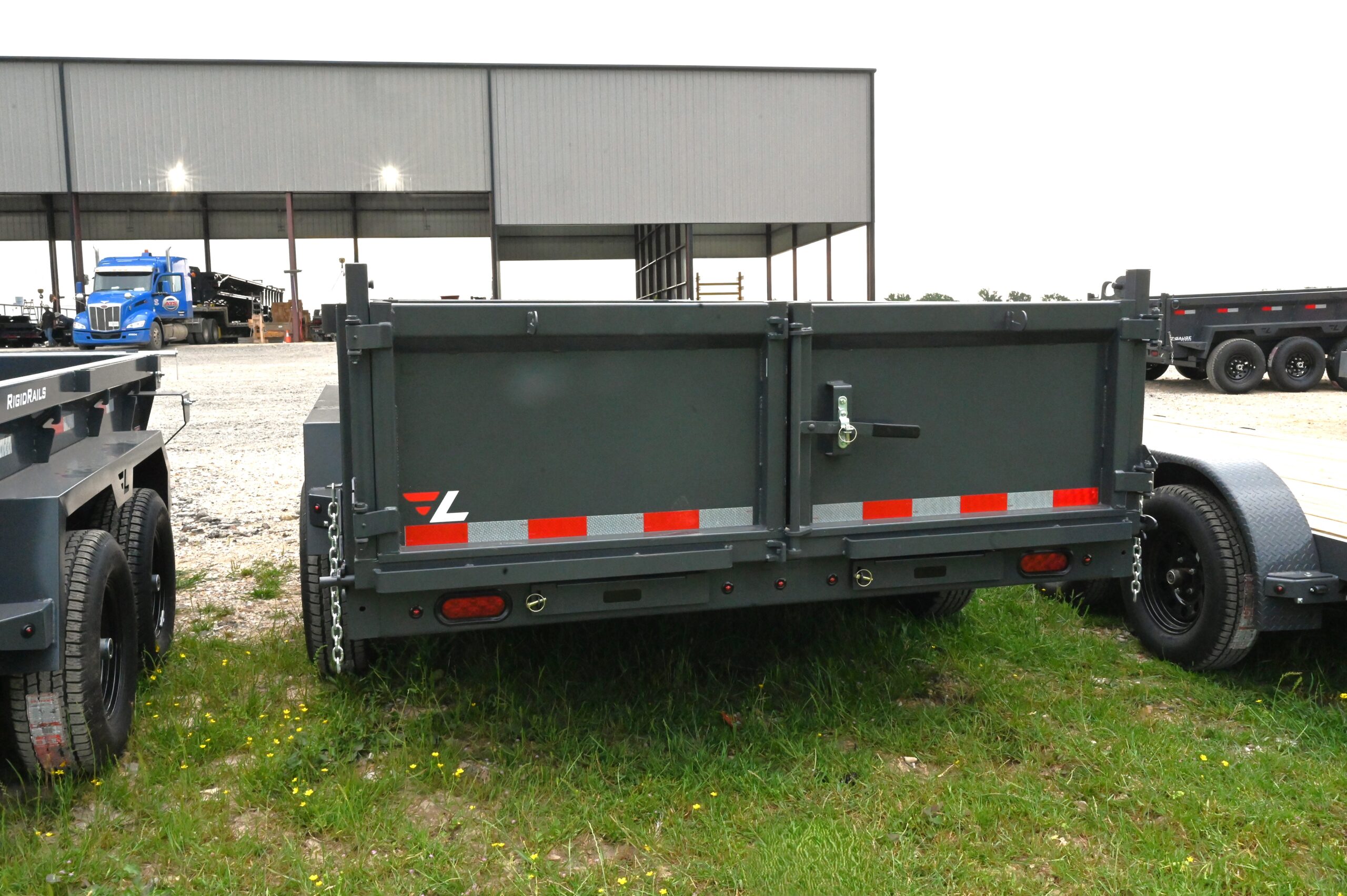

- Spreader Gate

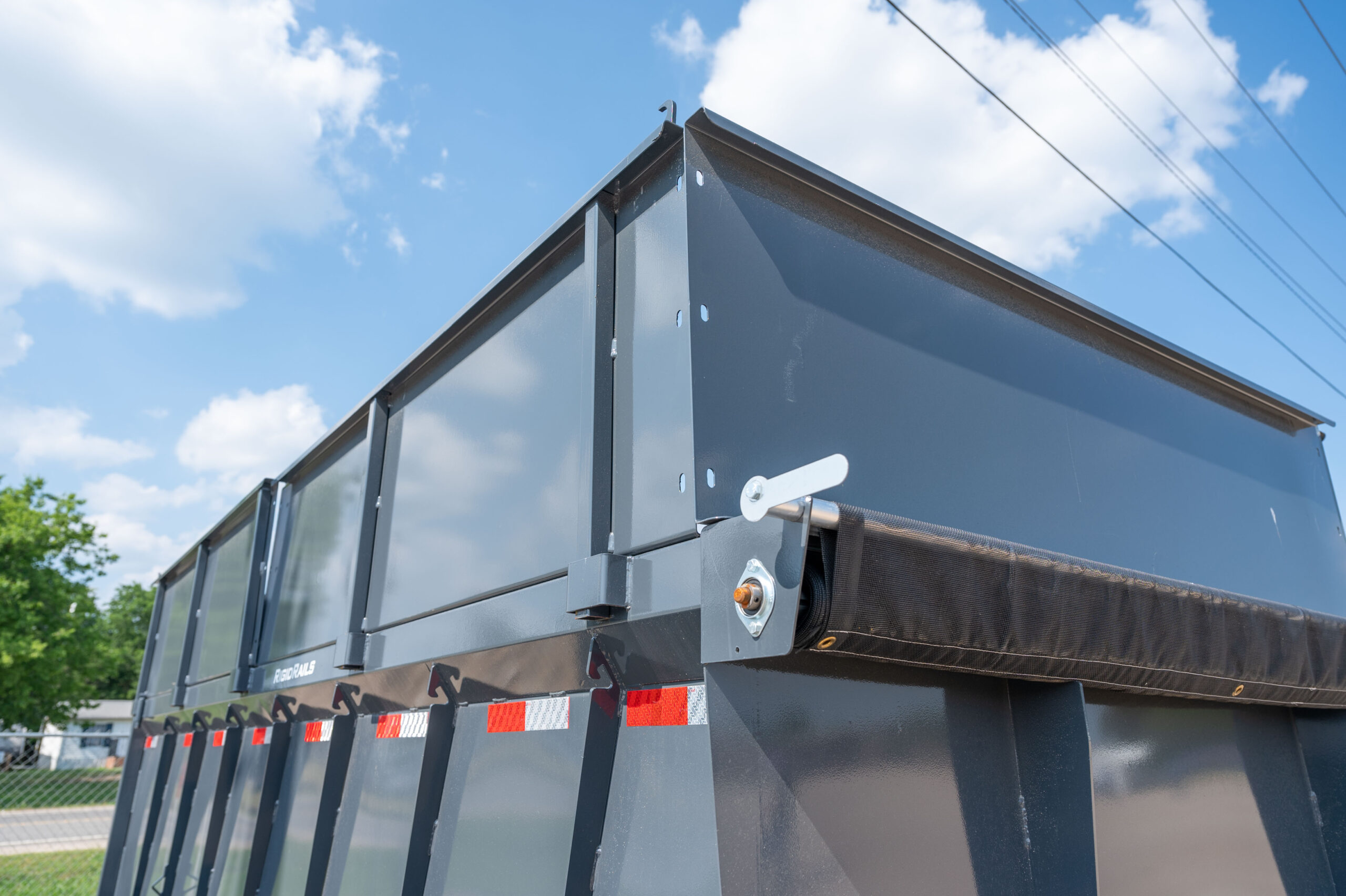

- Easy Roll Mesh Tarp
- Standard Stake Pockets

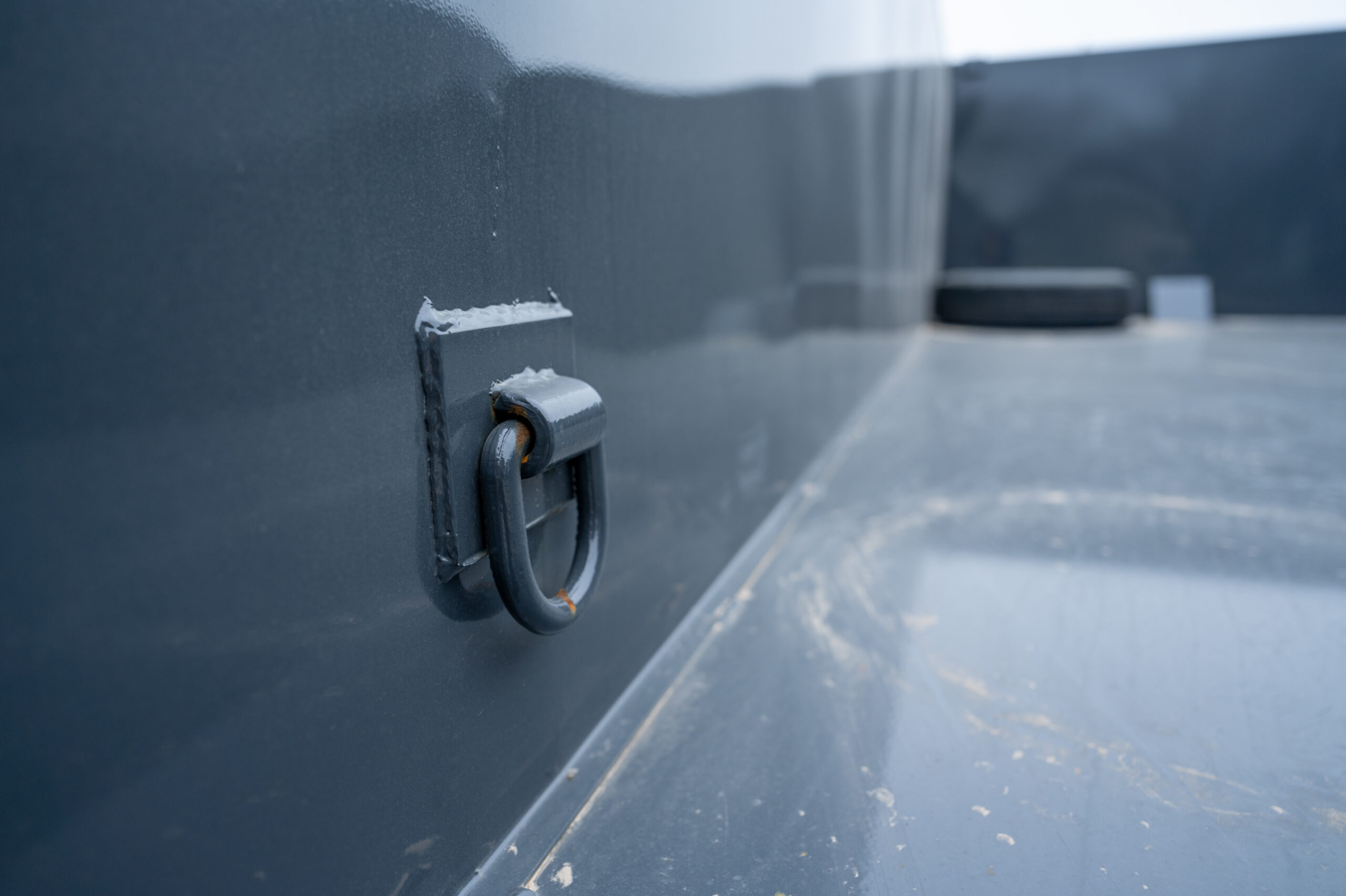

- Four Weld On D-Rings

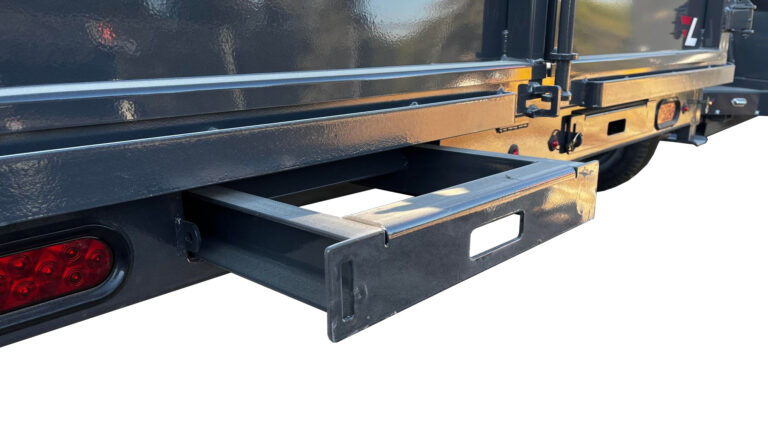

- Pair Of Heavy Duty Slide In Ramps (21°)
Electrical:
- Led Lights
- 5 Amp Trickle Charger
- 12V Deep Cycle Battery Kit
- Weather Resistant Harness (-65°F)
- 3 Way 12V DC Pump
- 6″ Bore By 21″ Stroke Cylinder (45°) – Scissor Dump

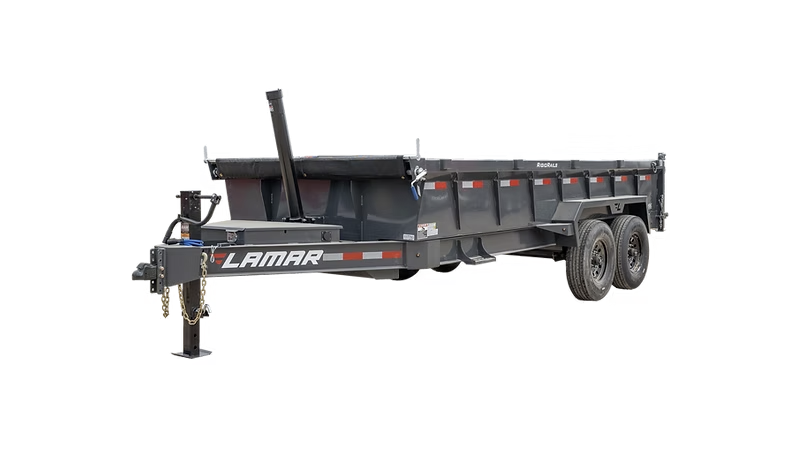

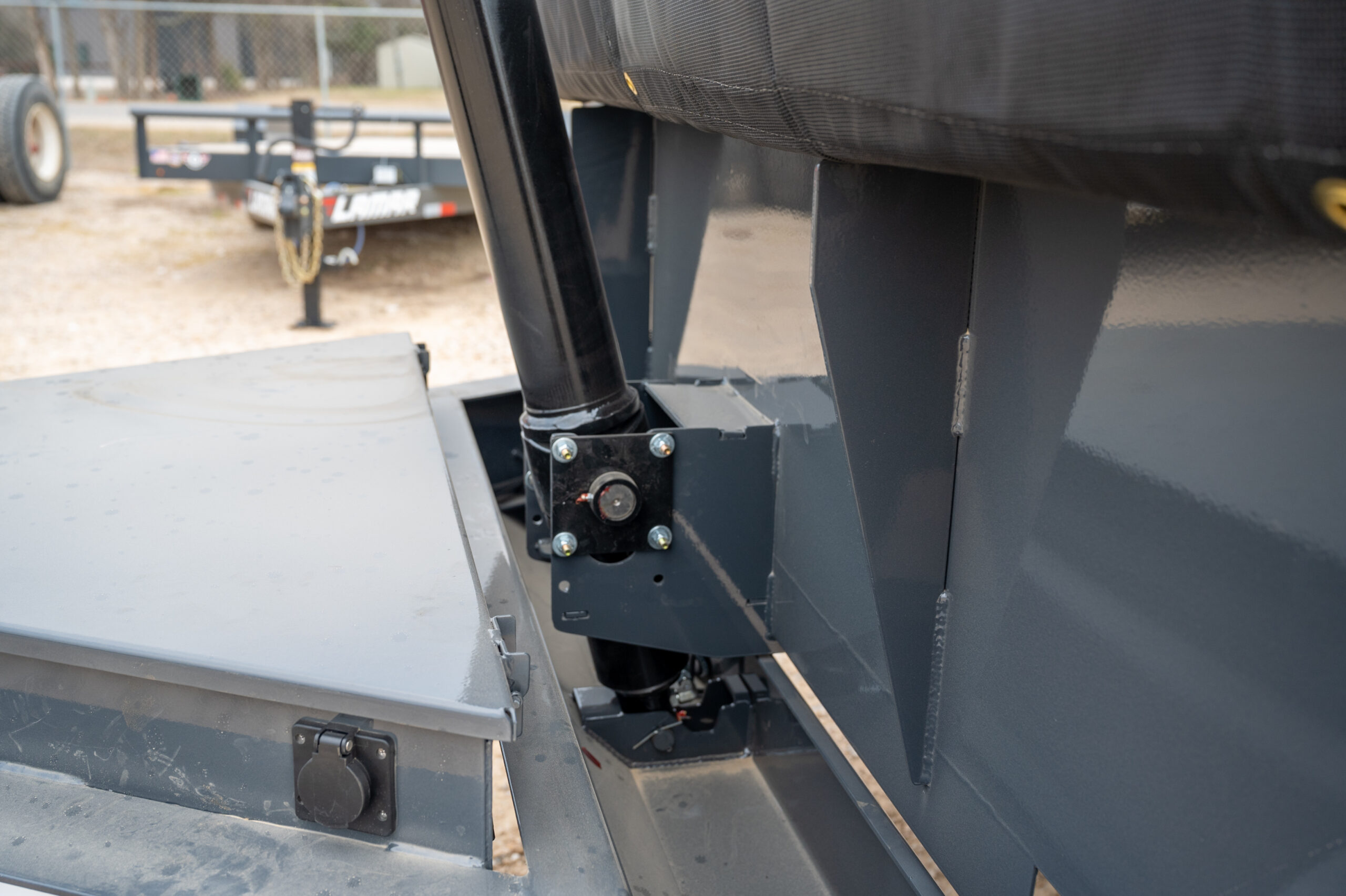

- Front Mounted Telescopic Lift (45°) – Telescopic Dump
Color:
- Lamar Charcoal Gray Powder Coat
Options:
- 3′ High Sides – $900
- 4′ High Sides – $1,500
- Single Hydraulic Jack – $1,500
- Dual Hydraulic Jacks – $2,000
