Gooseneck Flatbed Trailers for Sale
We offer a wide range of Gooseneck Flatbed Trailers for sale here at Trailer Sales of Indiana. We offer great value brands in Quality, Load Trail, Sure Trac and Lamar Trailers. Feel free to click between the tabs to compare features between our Gooseneck Flatbed Trailers. Give us a call us today! (317) 743-0020
Lamar Trailers

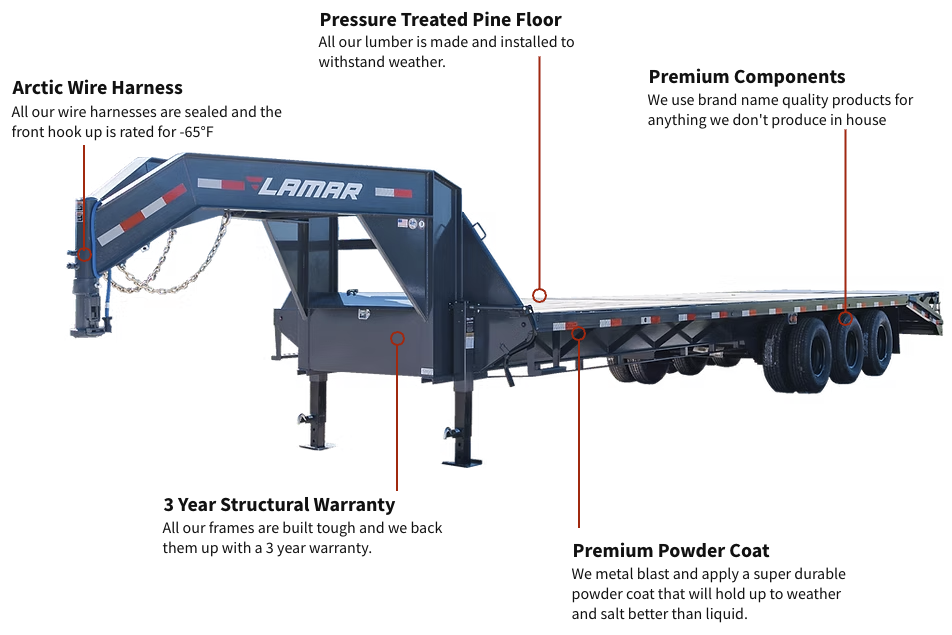

Lamar Brand Gooseneck Flatbed Trailers: FS Model
Available Sizes – 14,000 GVWR:
- 102″ x 25′: Weight – 5,020 lbs; Payload – 8,980 lbs
- 102″ x 30′: Weight – 5,480 lbs; Payload – 8,520 lbs
- 102″ x 36′: Weight – 6,500 lbs; Payload – 7,500 lbs
- 102″ x 40′: Weight – 7,800 lbs; Payload – 6,200 lbs
Available Sizes – 16,000 GVWR:
- 102″ x 18′: Weight – 4,975 lbs; Payload – 11,025 lbs
- 102″ x 20′: Weight – 5,090 lbs; Payload – 10,910 lbs
- 102″ x 22′: Weight – 5,200 lbs; Payload – 10,800 lbs
- 102″ x 25′: Weight – 5,170 lbs; Payload – 10,830 lbs
- 102″ x 30′: Weight – 5,630 lbs; Payload – 10,370 lbs
- 102″ x 36′: Weight – 7,150 lbs; Payload – 8,850 lbs
- 102″ x 40′: Weight – 8,020 lbs; Payload – 7,980 lbs
Available Sizes – 21,000 GVWR:
- 102″ x 25′: Weight – 5,590 lbs; Payload – 15,410 lbs
- 102″ x 30′: Weight – 6,370 lbs; Payload – 14,630 lbs
- 102″ x 36′: Weight – 7,070 lbs; Payload – 13,930 lbs
- 102″ x 40′: Weight – 8,370 lbs; Payload – 12,630 lbs
Standard Specifications
Brakes & Suspension:
- 7K Easy Lube Electric Brake Spring Axles (14,000 GVWR, 21,000 GVWR)
- 8K Electric Brake Oil Bath Spring Axles (16,000 GVWR)
Tires:
- 235/80 R16 (E)10Ply Tire (14,000 GVWR, 21,000 GVWR)
- 215/75 R17.5 (H) 16Ply SS Tire Black Wheel (16,000 GVWR)
Frame:
- Torque Tube (Standard on 36’+)
- Under-Frame Bridge (Standard on 30’+)
- 12″ 14 lb I-Beam Frame (Standard on 25′-30′)
- 12″ 19 lb I-Beam Frame (Standard on 32’+)
- 16″ Spaced Crossmembers
- Treated Yellow Pine Floor
Hitch:
- 2-5/16″ 25K Gooseneck Coupler
- Ground to Coupler Height – 25″ – 33″
Jack:
- Dual 10K Drop-Leg Jack
Cargo Loading:
- Front Tool Box
- Rub Rail
- Stake Pockets
- 96″ Slide In Ramps (Mega Ramps Upgrade Available)
Electrical:
- Led Lights
- Weather Resistant Harness (-65°F)
- Pair Of Side Turn Flashers (Standard on 30’+)
Color:
- Lamar Charcoal Gray Powder Coat
Loading Angles:
-
- Straight Deck with 96″ Slide In Ramps – 21°
- 5′ Dove with Rhino Ramps – 17°
Options:
- Hydraulic Jacks
- Winch Plate
- Weld On Strap Winches
- Sliding Strap Track & Winches
- Solar Charger
- 6″ or 12″ Raised Neck & Coupler
- Tri Axle Configuration Instead of Tandem Axle
Want a bumper pull trailer instead, click here to explore options.
View more information on Lamar’s website by clicking here.
[ back to top ]
Lamar Brand Gooseneck Flatbed Trailers: FD Model
Available Sizes – 20,000 GVWR
- 102″ x 25′: Weight – 5,845 lbs; Payload – 14,155 lbs
- 102″ x 32′: Weight – 6,835 lbs; Payload – 13,165 lbs
- 102″ x 36′: Weight – 7,272 lbs; Payload – 12,728 lbs
- 102″ x 40′: Weight – 7,600 lbs; Payload – 12,400 lbs
Available Sizes – 24,000 GVWR
- 102″ x 25′: Weight – 6,120 lbs; Payload – 17,880 lbs
- 102″ x 32′: Weight – 7,110 lbs; Payload – 16,890 lbs
- 102″ x 36′: Weight – 7,547 lbs; Payload – 16,453 lbs
- 102″ x 40′: Weight – 7,875 lbs; Payload – 16,125 lbs
Standard Specifications
Brakes & Suspension:
- 10K Electric Brake Spring Axles (20,000 GVWR Model)
- 12K Electric Brake Spring Axles (24,000 GVWR Model)
Tires:
- 235/80 R16 (E) 10Ply Tire With Black Dual Wheel
- Spare Mount
Frame:
- Torque Tube (Standard on 36’+)
- Under-Frame Bridge (Standard on 30’+)
- 12″ 19 lb I-Beam Frame
- 16″ Spaced Crossmembers
- Treated Yellow Pine Floor
- 5′ Dove Tail
Hitch:
- 2-5/16″ 25K Gooseneck Coupler
Jack:
- Dual 10K Drop-Leg Jack
Cargo Loading:
- Front Tool Box
- Rub Rail
- Standard Stake Pockets
- Pair of 96″ Slide-In Ramps
Electrical:
- Led Lights
- Weather Resistant Harness (-65°F)
- Pair Of Side Turn Flashers (Standard on 30’+)
Color:
- Lamar Charcoal Gray Powder Coat
Loading Angles:
-
-
Straight Deck with 96″ Slide In Ramps – 22°
- 5′ Dove with Rhino Ramps – 18°
- 9′ Dove with Hydraulic Dove – 20°
-
Options:
- 9′ Hydraulic Dovetail
- Hydraulic Jacks
- Winch Plate
View more information about this trailer by clicking here.
[ back to top ]
Lamar Brand Gooseneck Flatbed Trailers: FG Model
Available Sizes – 30,000 GVWR Tandem Axle
- 102″ x 25′: Weight – 8,890 lbs; Payload – 21,110 lbs
- 102″ x 32′: Weight – 9,735 lbs; Payload – 20,265 lbs
- 102″ x 36′: Weight – 10,300 lbs; Payload – 19,700 lbs
- 102″ x 40′: Weight – 10,840 lbs; Payload – 19,160 lbs
Available Sizes – 30,000 GVWR Triple Axle
- 102″ x 32′: Weight – 9,735 lbs; Payload – 20,265 lbs
- 102″ x 36′: Weight – 10,300 lbs; Payload – 19,700 lbs
- 102″ x 40′: Weight – 11,300 lbs; Payload – 18,700 lbs
Standard Specifications
Brakes & Suspension:
- 10K Electric Brake Spring Axles (Triple Axle Model)
- 15K Electric Brake Spring Axles (Tandem Axle Model)
Tires:
- 215/75 R17.5 (H) 16 Ply Tire Black Dual Wheels
- Spare Mount
Frame:
- Torque Tube (Standard on 36’+)
- Under-Frame Bridge (Standard on 30’+)
- 12″ 22 lb I-Beam Frame
- 16″ Spaced Crossmembers
- Treated Yellow Pine Floor
- 5′ Dove Tail
Hitch:
- 2-5/16″ 30K Gooseneck Coupler
Jack:
- Dual 10K Drop-Leg Jacks
Cargo Loading:
- Front Tool Box
- Rub Rail
- Standard Stake Pockets
- Pair of 96″ Slide-In Ramps (Mega Ramps Upgrade Available)
Electrical:
- Led Lights
- Weather Resistant Harness (-65°F)
- Pair Of Side Turn Flashers (Standard on 30’+)
Color:
- Lamar Charcoal Gray Powder Coat
Loading Angles:
-
-
Straight Deck with 96″ Slide In Ramps – 22°
- 5′ Dove with Rhino Ramps – 18°
- 9′ Dove with Hydraulic Dove – 20°
-
Options:
- 9′ Hydraulic Dovetail
- Winch Plate
- 12″ Spaced Crossmembers
- 12″ 22 lb Low-Profile Pierced Beam
- 8′ Deck over Neck
- Oak Floor
- Dual 10K Hydraulic Jacks
- Dual 10K 2-Speed Jacks
- Dual 25K 2-Speed Jost Jacks
View more information about this trailer by clicking here.
[ back to top ]
Load Trail Trailers

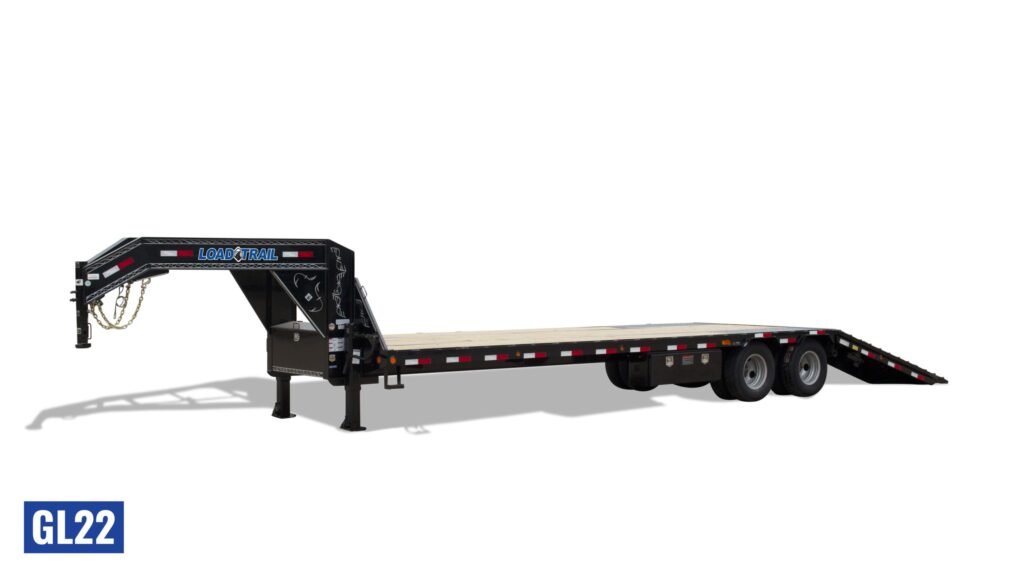

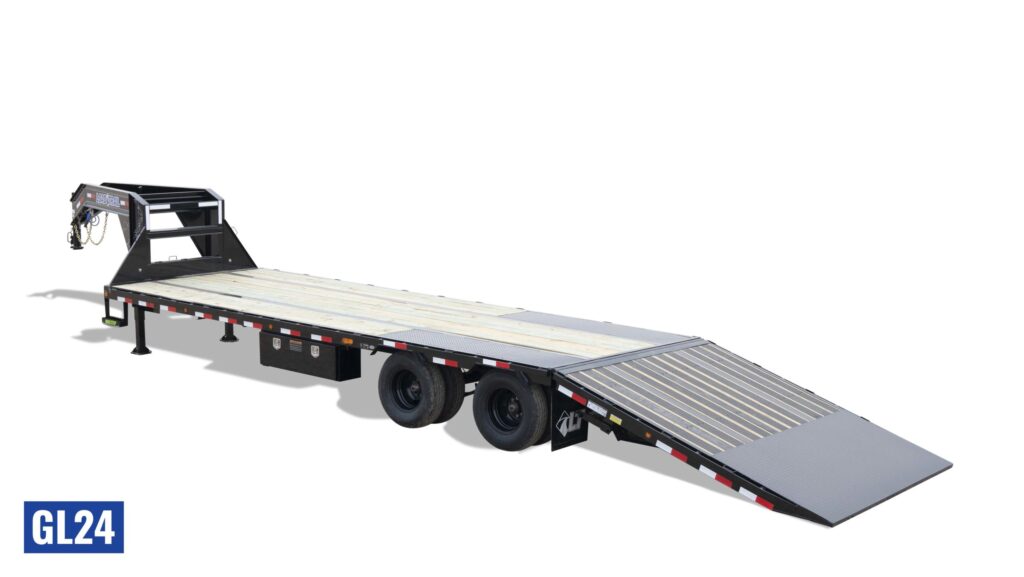

Load Trail Gooseneck Flatbed Trailers: GL Model
Standard Features (22,000 – 24,000 GVWR)
Dimensions
- Length: 28′ – 44′
- Width: 102″
- Deck Height: 33.5″
Chassis & Frame
-
Neck: 12″ I-Beam
-
Frame: 12″ Pierced I-Beam
-
Crossmembers: 3″ Channel, 16″ On-Center
-
Floor: Treated Wood
- Under Frame/Pipe Bridge Standard on Models 36 ft & Up
Running Gear
-
Axles: (2) 10,000 lb Dexter Electric Brake Axles (GL 22 – 22,000 GVWR Model), 12,000 lb Dexter Electric Brake Axles (GL 24 – 24,000 GVWR Model)
-
Suspension: Dexter Heavy-Duty Suspension System
-
Wheels: 16″ 8-Hole Tandem Dual
-
Tires: ST235/80 R16 LRE
-
Spare Tire: Fold-Down Mount
- Ramps: 5′ Mega Ramps (Hydraulic Dovetail Upgrade Available)
Jacks & Coupler
-
Jacks: (2) 10,000 lb Drop-Leg
Storage
-
Front Toolbox: Full-Width Steel Storage
-
Side Storage: 48″ Side-Mount
Tie-Down & Rail
-
Rub Rail: 2″ with Pipe Spools and Stake Pockets
-
Step: 15″ MAX-Step
Electrical & Lighting
-
Lighting: LED Stop, Tail, & Clearance Lights
-
Wiring: 16 Ga. 5-Way Double-Insulated Harness
-
Plug: 7-Way Cold Weather Cord
Safety
-
Safety Chains: (2) 3/8″ Grade 70
Finish
-
Pretreatment: Mechanical and/or Chemical for Maximum Paint Adhesion
-
Finish: Sherwin-Williams Powdura OneCure – Black Primer with Polyester TGIC Gloss Topcoat
Options
- 9′ or 10′ Hydraulic Dovetail
- Dual 10k Hydraulic Jacks
- Oak Floor
- Winch Plate
- 102” x 96” Deck-Over-Neck
- Ratchet Track (Weld-On)
- Pipe Bridge (Helps Prevent Trailer Bed Twisting)
- ~20 Different Colors of Paint
*Due to the wide range of available configurations, please contact a sales representative if you do not see a specific option listed. We are happy to assist with custom requests.
To see this trailer on Load Trail’s website, please click here.
[ back to top ]

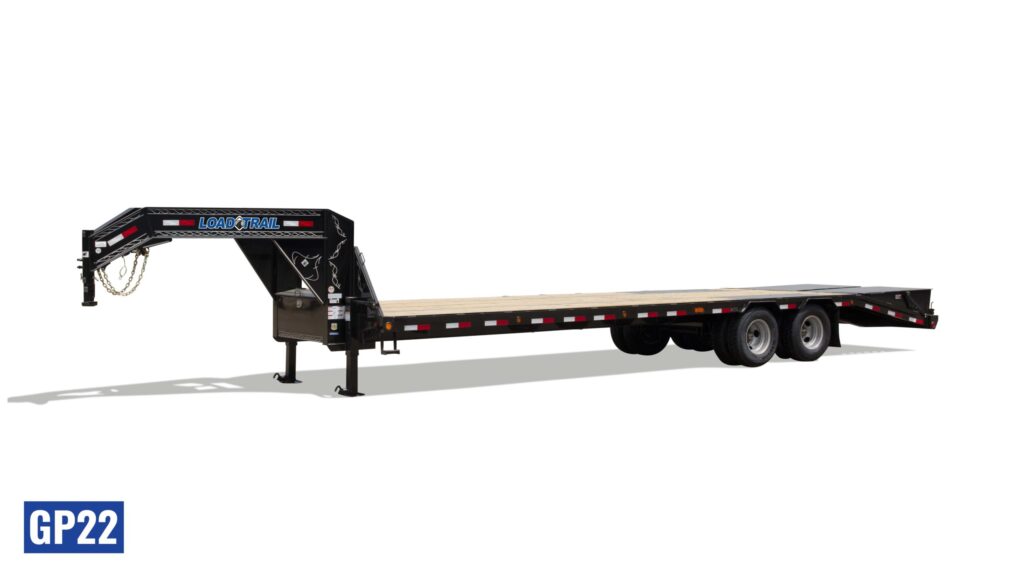

Load Trail Gooseneck Flatbed Trailers: GP Model
Standard Features (20,000 – 24,000 GVWR)
Dimensions
- Length: 20′ – 40′
- Width: 102″
- Deck Height: 33.5″
Chassis & Frame
-
Neck: 12″ I-Beam
-
Frame: 12″ I-Beam
-
Crossmembers: 3″ Channel, 16″ On-Center
-
Floor: Treated Wood
- Under Frame/Pipe Bridge Standard on Models 36 ft & Up
Running Gear
-
Axles: (2) 10,000 lb Dexter Electric Brake Axles (GL 22 – 22,000 GVWR Model), 12,000 lb Dexter Electric Brake Axles (GL 24 – 24,000 GVWR Model)
-
Suspension: Dexter Heavy-Duty Suspension System
-
Wheels: 16″ 8-Hole Tandem Dual
-
Tires: ST235/80 R16 LRE
-
Spare Tire: Fold-Down Mount
- Ramps: 8′ Slide In Ramps (Mega Ramps Upgrade Available)
Jacks & Coupler
-
Jacks: (2) 10,000 lb Drop-Leg
Storage
-
Front Toolbox: Full-Width Steel Storage
-
Side Storage: 48″ Side-Mount
Tie-Down & Rail
-
Rub Rail: 2″ with Pipe Spools and Stake Pockets
-
Step: 15″ MAX-Step
Electrical & Lighting
-
Lighting: LED Stop, Tail, & Clearance Lights
-
Wiring: 16 Ga. 5-Way Double-Insulated Harness
-
Plug: 7-Way Cold Weather Cord
Safety
-
Safety Chains: (2) 3/8″ Grade 70
Finish
-
Pretreatment: Mechanical and/or Chemical for Maximum Paint Adhesion
-
Finish: Sherwin-Williams Powdura OneCure – Black Primer with Polyester TGIC Gloss Topcoat
Options
- Dual 10k Hydraulic Jacks
- Oak Floor
- Winch Plate
- 102” x 96” Deck-Over-Neck
- Ratchet Track (Weld-On)
- Pipe Bridge (Helps Prevent Trailer Bed Twisting)
- ~20 Different Colors of Paint
*Due to the wide range of available configurations, please contact a sales representative if you do not see a specific option listed. We are happy to assist with custom requests.
To see this trailer on Load Trail’s website, please click here.
[ back to top ]

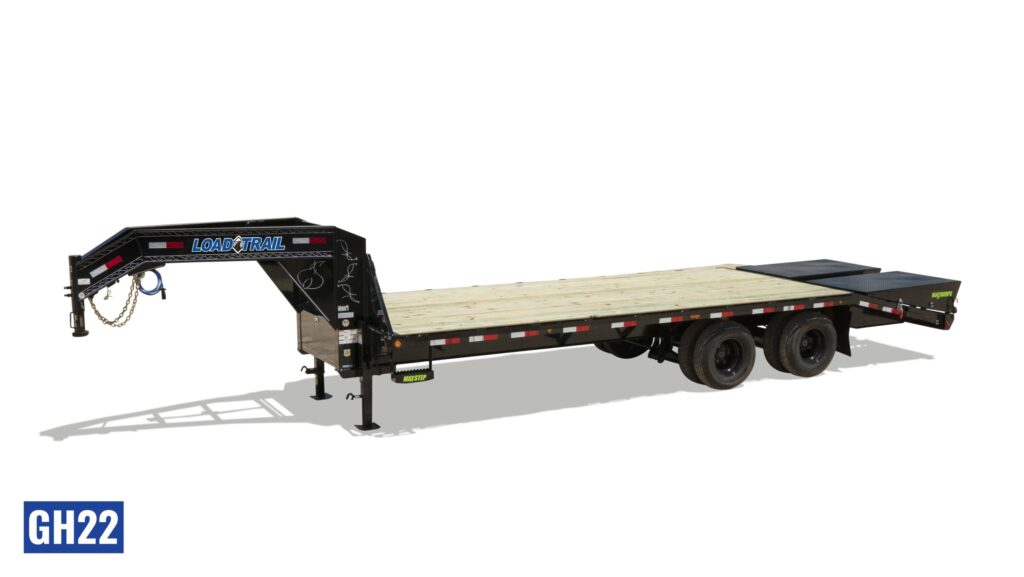

Load Trail Gooseneck Flatbed Trailer: GH Model
Standard Features (20,000 – 24,000 GVWR)
Dimensions
- Length: 20′-44′
- Width: 102″
- Deck Height: 37″
Chassis & Frame
-
Neck: 12″ I-Beam
- Frame: 12″ I-Beam
-
Crossmembers: 3″ Channel, 16″ On-Center
-
Floor: Treated Wood Flooring
Running Gear
- Axles: (2) 10,000 lb Dexter Electric Brake Axles (GL 22 – 22,000 GVWR Model), 12,000 lb Dexter Electric Brake Axles (GL 24 – 24,000 GVWR Model)
-
Suspension: Heavy-Duty Suspension System (HDSS)
-
Wheels: 16″ 8-hole Tandem Dual
-
Tires: ST235/80 R16 LRE
-
Spare: Fold-down Spare Tire Mount
- Under Frame/Pipe Bridge Standard on Models 36 ft & Up
Loading
-
Ramps: 8′ Slide-In Ramps (Mega Ramps Upgrade Available)
-
Step: 15″ MAX-Step
Storage & Accessories
-
Storage: Full-Width Front Toolbox
-
Winch Plate: 8″ Channel
Coupling & Support
-
Coupler: 2-5/16″ Adjustable Round Gooseneck
-
Jacks: (2) 10,000 lb Drop-Leg
-
Safety Chains: 5/16″ Grade 70 (GL 22 – 22,000 GVWR Model), 3/8” Grade 70 (GL 24 – 24,000 GVWR Model)
Electrical
-
Lighting: LED Stop, Tail, and Clearance Lights
-
Wiring: 16-Gauge, 5-Way Double-Insulated Wire Harness
-
Plug: Cold Weather Harness with 7-Way RV Plug
Tie-Down & Rail
-
Rub Rail: 2″ Rub Rail with Pipe Spools and Stake Pockets
Finish
-
Pretreatment: Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
-
Finish: Black Sherwin-Williams Powdura OneCure – Primer with Polyester TGIC Gloss Powder Topcoat
Options
- Dual 10k Hydraulic Jacks
- Oak Floor
- Winch Plate
- 102” x 96” Deck-Over-Neck
- Ratchet Track (Weld-On)
- Pipe Bridge (Helps Prevent Trailer Bed Twisting)
- ~20 Different Colors of Paint
*Due to the wide range of available configurations, please contact a sales representative if you do not see a specific option listed. We are happy to assist with custom requests.
To see this trailer on Load Trail’s website, click here.
[ back to top ]
Sure Trac Trailers

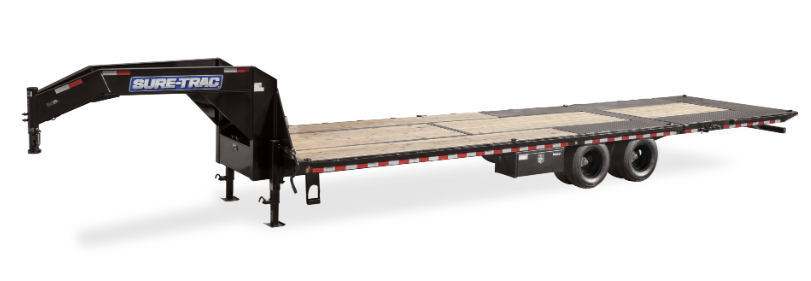

Heavy Duty Low Profile Beavertail Deckover
The Sure-Trac Heavy Duty Low Profile Beavertail Deckover Trailer is built for serious hauling, offering strength, versatility, and dependable performance for demanding jobs. Its sloped beavertail rear creates a smoother loading angle, making it easier to move heavy equipment, vehicles, and machinery on and off the deck. The lower deck height improves overall stability while towing, helping you stay confident and in control on the road. A reinforced I-beam frame and Cross-Trac bracing add durability and structural strength for long-term reliability. Full-width ramps and integrated side steps provide convenient access and flexible loading options for a wide range of equipment. Designed with safety and usability in mind, this trailer delivers a dependable solution for work, recreation, and everything in between.
| Specification | 8.5 x 20+5, 15K | 8.5 x 20+5, 17.6K | 8.5 x 20+5, 22.5K | 8.5 x 20+5, 25.9K | 8.5 x 20+5, 32K |
|---|---|---|---|---|---|
| Model # | ST-HD010225-150 | ST-HD010225-176 | ST-HD010225-225 | ST-HD010225-259 | ST-HD010225-320 |
| GVWR (lbs) | 15000 | 17600 | 22500 | 25900 | 32000 |
| GAWR (lbs/axle) | 7000 | 8000 | 10000 | 12000 | 15000 |
| Curb Weight | 4640 | 4740 | 5540 | 5840 | 6210 |
| Payload | 10360 | 12860 | 16960 | 20060 | 25790 |
| Main Frame | W12 x 14#/ft., I-Beam | W12 x 19#/ft., I-Beam | |||
| Side Rails | 5″ C-Channel | 6″ C-Channel | |||
| Cross Members | 3″ C-Channel (16″ On-Center) | 3″ C-Channel (12″ On-Center) | |||
| Beaver Tail | 5′ w/ Self-Cleaning Cleats | ||||
| Coupler | Adjustable Pintle Eye | Adjustable 4-Bolt Pintle Eye | |||
| Jack | Setback HD 12K Drop Leg Jack | ||||
| Axles | Oil Bath Hubs with Brakes | ||||
| Suspension | Slipper Spring | ||||
| Tires | 235/80R16 LRE | 215/75R17.5 LRJ | 235/80R16 LRE | 235/80R16 LRE | 215/75R17.5 LRJ |
| Wheels | 16″, 8 on 6.5, Radial | 17.5″, 8 on 6.5, Radial | 16″, 8 on 6.5, Radial | 16″, 8 on 6.5, Radial | 17.5″, 8 on 275mm, Radial |
| Decking | 2 x 6 Pressure Treated Pine | ||||
| Lights | All LED Lights | ||||
| Electric Plug | 7-Way RV-Style Molded Plug | ||||
| Finish | Industrial Grade Polymer Finish, High Gloss Black | ||||
| Overall Length | 378″ | ||||
| Deck Height | 32″ | ||||
| Coupler Height | Adjustable 21″ – 29″ | ||||
| Ramps | Full-Width Ramps with Diamond Plate Bottoms | ||||
| Frame | Pierced I-Beam, Cross Trac Bracing | ||||
| Other | Side Steps, Stake Pockets and Rub Rail, Spare Tire Carrier, Diamond Plate Deck Over Wheels | ||||
*Please note as these specifications were taken from the Bumper Pull version of this trailer, some specs may differ. If you don’t see the length that you are looking for, it is possible that the model is offered in lengths not shown. Please contact for more details at (317) 743-0020
Heavy Duty Low Profile Hydraulic Beavertail Deckover
Take your hauling to the next level with the Sure-Trac® Heavy Duty Low Profile Hydraulic Beavertail Deckover Trailer, built for strength, control, and dependable performance. Its low-profile deck keeps the loading height down, making it easier and safer to move heavy equipment, machinery, and vehicles without unnecessary strain or risk. The hydraulic beavertail operates smoothly, letting you raise and lower the deck quickly for efficient, no-hassle loading. A reinforced frame with Cross-Trac™ bracing adds rigidity and long-term durability, even under demanding, high-frequency use. Multiple tie-down options, including heavy-duty D-rings, stake pockets, and chain spools, give you confidence that every load stays secure on the road. Whether you’re in construction, landscaping, or vehicle transport, this trailer is designed to simplify your workflow and handle tough jobs day after day. Use the chart below to compare specs between the different models, and if you would like to speak to a sales rep, call us at (317) 743-0020
| Specification | 8.5 x 20+10, 22.5K | 8.5 x 20+10, 25.9K | 8.5 x 20+10, 30K |
|---|---|---|---|
| Model # | ST-HBD10230-225G | ST-HBD10230-259G | ST-HBD10230-300G |
| GVWR (lbs) | 22500 | 25900 | 30000 |
| GAWR (lbs/axle) | 10000 | 12000 | 15000 |
| Curb Weight | 6520 | 6680 | 7580 |
| Payload | 15980 | 19220 | 22420 |
| Main Frame | W12 x 19#/ft., I-Beam(Pierced), Cross Trac Bracing, Diamond Plate Deck Over Wheels | ||
| Side Rails | 6″ C-Channel | ||
| Cross Members | 3″ C-Channel (16″ On-Center) | 3″ Channel (12″ On-Center) | |
| Beaver Tail | Wood Deck | ||
| Gooseneck Coupler | Adjustable 2-5/16″ Ball Coupler | ||
| Jack | Dual Setback HD 12K Drop Leg Jacks with Toolbox (Between Uprights), Tool Tray and Winch Receiver Tube (In Neck) | ||
| Axles | Oil Bath Hubs with Brakes | ||
| Suspension | Slipper Leaf Spring | ||
| Tires | 235/80R16 LRE | 215/75R17.5 LRJ | |
| Wheels | 16″, 8 on 6.5, Radial | 17.5″, 8 on 275mm, Radial | |
| Decking | 2 x 6 Pressure Treated Pine | ||
| Lights | All LED Lights | ||
| Electric Plug | 7-Way RV-Style Molded Plug | ||
| Finish | Industrial Grade Polymer Finish, High Gloss Black | ||
| Overall Length | 497″ | ||
| Deck Height | 32″ | ||
| Coupler Height | Adjustable 31″ – 39.75″ | ||
| Beavertail Payload | 5000 lbs | ||
| Beavertail Lifting Capacity | 8000 lbs (Center of Tail) | ||
| Load Angle | 15 Degrees | ||
| Battery | Group 24 Deep Cycle | ||
| Beavertail Specifications | 10′ Hydraulic Beavertail with HD 5″ Bore Twin Lift Cylinder | ||
| Other | Sealed Brake Connections, Everlink Wiring Harness, Breakaway Switch w/ Battery, 5/8″ D-Rings, Spare Tire Carrier, Stake Pockets and Rub Rail, Side Steps | ||
Pro Series Deckover Gooseneck
The Pro Series® Deckover is built to deliver a smoother, more controlled haul with its exclusive Lippert HDSS suspension and rigid Cross-Trac™ frame design, reducing vibration and stress on both equipment and operator. A lightweight single-piece gooseneck improves balance and gives the trailer a sleek, modern look, while the fold-away side step provides easy deck access without getting in the way. Swivel LED loading lights and midship marker and turn signals improve visibility and safety, making every load—whether short runs or long-distance pulls—more predictable and less fatiguing.
*Trailer shown with non standard options.
| Specification | 8.5 x 20+5, 25K | 8.5 x 20+5, 25.9K | 8.5 x 20+5, 32K |
|---|---|---|---|
| Model # | ST-PSD10225-250G | ST-PSD10225-259G | ST-PSD10225-320G |
| GVWR (lbs) | 25000 | 25900 | 32000 |
| GAWR (lbs/axle) | 10000 | 12000 | 16000 |
| Curb Weight | 6200 | 6500 | 6900 |
| Payload | 18800 | 19400 | 25100 |
| Main Frame | W12 x 14#/ft., I-Beam(Pierced), Fabricated Single Piece Gooseneck | W12 x 19#/ft., I-Beam(Pierced), Fabricated Single Piece Gooseneck | |
| Side Rails | 6″ C-Channel | ||
| Cross Members | 3″ C-Channel (16″ On-Center) | 3″ C-Channel (12″ On-Center) | |
| Beaver Tail | 5′ w/ Self-Cleaning Cleats | ||
| Coupler | Adjustable 2-5/16″ Gooseneck Coupler | Adjustable 3″ Square Gooseneck Coupler | |
| Jack | Dual 2-Speed, HD 12K Drop Leg Jacks with Toolbox (Between Uprights) | ||
| Axles | Oil Bath Hubs with Brakes, 48″ Spread | ||
| Suspension | Lippert HDSS – Heavy Duty Slipper Suspension | ||
| Tires | 235/80R16 LRE | 215/75R17.5 LRJ | |
| Wheels | 16″, 8 on 6.5, Radial | 17.5″, 8 on 275mm, Radial | |
| Decking | 2 x 6 Pressure Treated Pine | ||
| Lights | All LED Lights, Midship Turns, and Swivel Work Lights | ||
| Electric Plug | 7-Way RV-Style Molded Plug | ||
| Finish | Industrial Grade Polymer Finish, High Gloss Black | ||
| Overall Length | 408″ | ||
| Deck Height | 33.5″ | ||
| Coupler Height | Adjustable 31″ – 39.75″ | ||
| Ramps | Full-Width Ramps with Latch | ||
| Other | Drop Down Steps, Spare Tire Carrier, Tool Tray, Winch Receiver Tube, Chain Spools, Diamond Plate Deck Over Wheels, Cross Trac Bracing | ||
Quality Trailers
GENERAL DUTY Quality Brand Gooseneck Flatbed Trailers
12,000 GVWR 24FT.
Standard I-beam frame with 24″ cross member spacing, radial tires, rubber mounted sealed beam lighting in enclosed light boxes with conventional wiring with gel filled connectors.
GVWR 12000 lb. – Capacity 10000 lb. with 2000 lb. Hitchload
Standard Specifications
- Treated wood deck
- 96″ wood deck 101.5″ to outside of rubrails
- 6000 lb. braking axles with 4 wheel brakes
- Double eye spring suspension
- 235/80 R16 load range E 10 ply rating Castle Rock Radial tires
- 8” I-beam frame (W8x10)
- 4″ flat bar side rails
- 3″ channel cross members – 24″ spacing
- 10″ I-beam uprights, 8″ I-beam neck with tool tray
- 5 ft. swing-up ramps with support foot
- 2 5/16″ adjustable gooseneck coupler
- 12000 lb. drop-foot jack
- Metal plate over wheels for lowest possible loaded deck height (33″)
- Stake pockets and rubrail
- Self charging break away kit, safety chains, skip DOT reflective tape and all rubber mounted sealed beam lighting with conventional wiring with gel filled connectors
- Primed, 2 coats of acrylic enamel, pin stripe
[ back to top ]
PROFESSIONAL GRADE Quality Brand Gooseneck Flatbed Trailers
GVWR 17000 lb. – Capacity 13000 lb. with 4000 lb. Hitchload
Available Sizes:
- 24 ft. (20’+4′ dove tail)
- 24 ft. (20’+4′ popup dove tail) – Pop-up weight rating 2,500lbs.
- 28 ft. (24’+4′ dove tail)
- 28 ft. (24’+4′ popup dove tail) – Pop-up weight rating 2,500lbs.
Standard Specifications
- Treated wood deck
- 96″ wood deck 101.5″ to outside of rubrails
- 7000 lb. braking axles with 4 wheel brakes
- Slipper spring suspension
- 235/80 R16 load range E 10 ply rating West Lake Radial tires
- 10” I-beam frame (W10x12)
- 6″ flat bar side rails
- 3″ channel cross members – 16″ spacing
- 12″ I-beam uprights, 10″ I-beam neck (toolbox and lockable lid)
- Toolbox with lockable lid built into tongue
- 5 ft. swing-up ramps with support foot. These are extra heavy duty ramps made of 4″ channel with spring assist.
- 2 5/16″ adjustable gooseneck coupler
- 12000 lb. drop-foot jack
- Metal plate over wheels for lowest possible loaded deck height (33″)
- Stake pockets and rubrail
- Self charging break away kit, safety chains, full DOT reflective tape and all rubber mounted LED sealed beam lighting with U.S made sealed modular harness with 2 year warranty
- Primed, 2 coats of acrylic enamel, pin stripe
[ back to top ]
PROFESSIONAL GRADE Tandem Dual Gooseneck Flatbed Trailers
Available Sizes:
- 25,000 GVWR – 25ft. Tandem Dual
- 25,000 GVWR – 25ft. Tandem Dual Pop-up Dovetail
- 25,000 GVWR – 30ft. Tandem Dual
- 25,000 GVWR – 30ft. Tandem Dual Pop-up Dovetail
Heavier main frame I-beams and side rails with 16″ cross member spacing, dual jacks, premium radial tires, LED rubber mounted sealed beam lighting in enclosed boxes with sealed modular wiring harness.
GVWR 25000 lb. – Capacity 20000 lb. with 5000 lb. Hitchload
Standard Specifications:
- Treated wood deck
- 96″ wood deck 101.5″ to outside of rubrails
- 10000 lb. oil bath axles with all wheel brakes
- Slipper spring suspension
- 235/80 R16 load range E 10 ply rating West Lake Radial tires
- 12” I-beam frame (W12x16)
- 6″ channel side rails
- 3″ channel cross members – 16″ spacing
- 12″ I-beam uprights, 12″ I-beam neck (toolbox and lockable lid)
- 5 ft. swing-up ramps with support foot
- 2 5/16″ adjustable gooseneck coupler
- Dual 12000 lb. drop-foot jacks
- Metal plate over wheels for lowest possible loaded deck height (35″)
- Stake pockets and rubrail
- Self charging break away kit, safety chains, full DOT reflective tape and all rubber mounted LED sealed beam lighting with U.S. made sealed modular harness with 2 year warranty
- Primed, 2 coats of acrylic enamel, pin stripe
To view more details on Gooseneck Flatbed Trailers at Quality Trailers website click here.
Need a Fender Gooseneck Equipment Trailer instead? Click here.
[ back to top ]
Contact Us Today For Gooseneck Flatbed Trailers in Indiana
Call us at (317) 743-0020 or fill out the form below and one of our friendly sales associates will be in touch. Thank you.
"*" indicates required fields
