Tandem Axle Utility Trailers
We offer several brands of Tandem Axle utility trailers. Regardless of brand, your dual-axle trailer can transport a variety of goods, equipment, or vehicles, and features increased stability and weight-carrying capacity compared to single-axle counterparts. Click between the tabs below to compare the values that these brands offer. Call Trailer Sales of Indiana today at (317) 743-0020 to figure out which trailer best meets your needs.

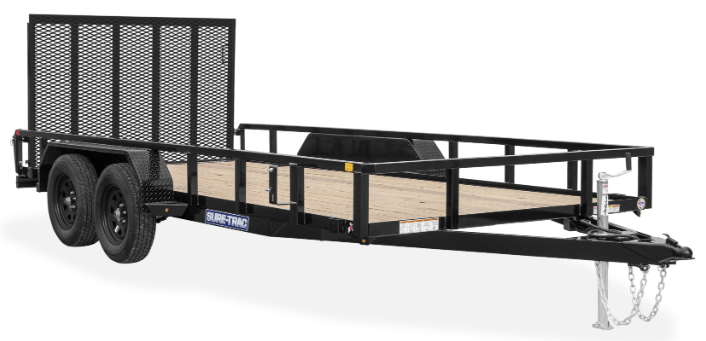

Sure Trac Tandem Axle Utility Trailers
Sure Trac 7,000 GVWR Tandem Axle Utility Trailer Comparison (82" Wide)
Viewing on your phone? You can scroll the table sideways to see all sizes.
| Specification | 82x14 | 82x16 | 82x18 | 82x20 |
|---|---|---|---|---|
| GVWR (lbs) | 7000 | 7000 | 7000 | 7000 |
| GAWR (lbs/axle) | 3500 | 3500 | 3500 | 3500 |
| Curb Weight | 1700 | 1820 | 2200 | 2410 |
| Payload | 5300 | 5180 | 4800 | 4590 |
| Frame | 3 x 2 x 1/4 Angle | |||
| Cross Members | 3 x 2 x 3/16 Angle (24" On-Center) | |||
| Top Rail | 2 x 2 Square Tube | |||
| Tongue | 4" Channel (A-Frame) | |||
| Uprights | 2 x 2 Square Tube | |||
| Coupler | 2-5/16" A-Frame Ball Coupler | |||
| Jack | Setback 2K Zinc Plated Jack | |||
| Fenders | Tread Plate, Double Brake | |||
| Axles | Easy Lube Hubs with Brakes | |||
| Suspension | Equalized Leaf Spring | |||
| Tires | 205/75R15 LRC | |||
| Wheels | 15", 5 on 4.5, Radial Tires | |||
| Decking | 2 x 6 Pressure Treated Pine | |||
| Lights | All LED Lights | |||
| Electric Plug | 7-Way RV-Style Molded Plug | |||
| Finish | Industrial Grade Polymer Finish, High Gloss Black | |||
Sure Trac 7,000 GVWR Tandem Axle Utility Trailer Comparison (82" Wide)
Viewing on your phone? You can scroll the table sideways to see all sizes.
| Specification | 82x16 | 82x18 | 82x20 |
|---|---|---|---|
| GVWR (lbs) | 9900 | 9900 | 9900 |
| GAWR (lbs/axle) | 5200 | 5200 | 5200 |
| Curb Weight | 2530 | 2650 | 2770 |
| Payload | 7370 | 7250 | 7130 |
| Frame | 5 x 3 x 1/4 Angle | ||
| Cross Members | 3 x 2 x 3/16 Angle (24" On-Center) | ||
| Top Rail | 3 x 2 Tube | ||
| Tongue | 5" Channel (A-Frame) | ||
| Uprights | 2 x 2 Square Tube | ||
| Coupler | 2-5/16" A-Frame Ball Coupler | ||
| Jack | Setback 7K Drop Leg Jack | ||
| Fenders | Tread Plate, Double Brake | ||
| Axles | Easy Lube Hubs with Brakes | ||
| Suspension | Equalized Leaf Spring | ||
| Tires | 225/75R15 LRD | ||
| Wheels | 15", 6 on 5.5, Radial Tires | ||
| Decking | 2 x 6 Pressure Treated Pine | ||
| Lights | All LED Lights | ||
| Electric Plug | 7-Way RV-Style Molded Plug | ||
| Finish | Industrial Grade Polymer Finish, High Gloss Black | ||
Lamar Tandem Axle Utility Trailers
Lamar Brand Tandem Utility Trailers – 7,000 GVWR
7,000 GVWR
- UC238312 83″ x 12′: Weight – 1,704 lbs; Payload – 5,296 lbs
- UC238314 83″ x 14′: Weight – 1,737 lbs; Payload – 5,263 lbs
- UC238316 83″ x 16′: Weight – 1,793 lbs; Payload – 5,207 lbs
- UC238318 83″ x 18′: Weight – 1,910 lbs; Payload – 5,090 lbs
Standard Specifications
- 3.5K Electric Brake Spring Axles
- 24″ Spaced Crossmembers
- Straight Deck
- Straight Deck
- Smooth Teardrop Fenders
- Treated Yellow Pine Floor
- 4″ Channel Frame
- Side Rails
- Wrap Tongue
- 2″ X 2″ Angle Toprail
- 2K Top-Wind Flip Jack
- Led Lights
- Weather Resistant Harness (-65°F)
- 205/75 R15 (C) 6 Ply Tires
- Spare Tire Mount
- 2″ 7K Ram A-Frame Cast Iron Coupler
- Stake Pockets
- 4′ Spring Assisted Lay-Down Gate
- Lamar Charcoal
Loading Angles – Based
Straight Deck with 4′ Gate – 24°
2′ Dove with 4′ Gate – 16°
Lamar Brand Tandem Utility Trailers – 10,000 GVWR
10,000 GVWR
-
U5258316 83″ x 16′: Weight – 2,165 lbs; Payload – 7,835 lbs
-
U5258318 83″ x 18′: Weight – 2,300 lbs; Payload – 7,700 lbs
-
U5258320 83″ x 20′: Weight – 2,460 lbs; Payload – 7,540 lbs
-
U5258322 83″ x 22′: Weight – 2,640 lbs; Payload – 7,360 lbs
-
U5258324 83″ x 24′: Weight – 2,856 lbs; Payload – 7,144 lbs
Standard Specifications:
- 2-5/16″ 12.5K RAM A-Frame Cast Coupler
- Straight Deck
- Wrap Tongue
- 5″ Channel Frame
- 5.2K EZ Lube Idler & Elec Brake Spring Axle
- Diamond Plate Fenders
- Standard Stake Pockets
- 7K Drop-Leg Jack
- Standard Height Side Rails
- 24″ Center-to-Center Crossmembers
- Treated Yellow Pine Floor
- Lamar Gray Powder Coat
- 3″ x 2″ Angle Top Rail
- Rear Ramp
- 235/80 R16 (E) 10-Ply Tire
Options to Add On:
- 2′ Dovetail
- Pipe Toprail
- 2 5/16 21″K Demco Adj Cast Coupler
[ back to top ]
Lamar Brand Tandem Axle Utility Trailers – 14,000 GVWR
14,000 GVWR
-
U6278316 – 83″ x 16′: Weight – 2,550 lbs; Payload – 11,450 lbs
-
U6278318 – 83″ x 18′: Weight – 2,730 lbs; Payload – 11,270 lbs
-
U6278320 – 83″ x 20′: Weight – 2,935; Payload – 11,065 lbs
-
U6278322 – 83″ x 22′: Weight – 3,036; Payload – 10,964 lbs
-
U6278324 – 83″ x 24′: Weight – 3,150; Payload – 10,850 lbs
Options to Add On:
- 2′ Dovetail
- Pipe Toprail
For a link to view this trailer on Lamar Trailers website, click here.
Only need a Single Axle Utility Trailer, click here.
[ back to top ]
Quality Tandem Axle Utility Trailers
GENERAL DUTY Quality Brand Tandem Axle Utility Trailers
2 ft. dove tail with spring assisted gate, wrap around channel tongue, radial tires, rubber mounted sealed beam lighting in enclosed light boxes, conventional wiring with gel filled connectors.
GVWR 7000 lb: Capacity 6000 lb. with 1000 lb. Hitch load. Ramp Capacity 4500 lb.
- 7,000 GVWR 14ft.
- 7,000 GVWR 16ft.
- 7,000 GVWR 18ft.
GVWR 8500 lb: Capacity 7000 lb. with 1700 lb. Hitch load. Ramp Capacity 4500 lb.
- 8,500 GVWR 18ft.
- 8,500 GVWR 20ft.
GVWR 10000 lb.: Capacity 10,000 lb. with 1500 lb. Hitch load. Ramp Capacity 4500 lb.
- 10,000 GVWR 20ft.
Standard Specifications
- Treated wood deck
- Standard 2 ft. dove tail
- 82″ between fenders
- Braking axles and wheel brakes
- 7000: 3500 lb. braking axles with 4 wheel brakes
- 8500: 4400 lb. braking axles with 4 wheel brakes
- 10000: 5200 lb. braking axles with 4 wheel brakes
- Double eye spring suspension
- Castle Rock Radial Tires:
- 7000: 205/75 R15 load range C 6 ply rating Castle Rock Radial tires
- 8500 & 10000: 225/75 R15 load range D 8 ply rating Castle Rock Radial tires
- 3x3x3/16″ angle frame
- 3x3x3/16″ top rail
- 3″ channel cross members
- Channel wrap-around tongue
- 7000 & 8500: 4″
- 10000: 5″
- 4 ft. full landscape gate (spring-assist standard)
- 2 5/16″ A-frame coupler
- Top wind jack
- Diamond plate fenders with backs
- Steps in front and behind fenders
- Stake pockets, self charging break away kits, safety chains, skip DOT reflective tape, and all rubber mounted sealed beam lighting, conventional wiring with gel filled connectors
- Primed, 2 coats of acrylic enamel, pin striped
[ back to top ]
PROFESSIONAL GRADE Quality Brand Tandem Axle Utility Trailers
Heavier main frame and closer cross members, premium radial tires, swing-up jack, LED rubber mounted sealed beam lighting in enclosed boxes with sealed modular wiring harness.
GVWR 7000 lb.: Capacity 6000 lb. with 1000 lb. Hitch load. Ramp Capacity 4500 lb.
- 7,000 GVWR 16ft.
- 7,000 GVWR 18ft.
GVWR 8500 lb.: Capacity 7000 lb. with 1500 lb. Hitch load. Ramp Capacity 4500 lb.
- 8,500 GVWR 18ft.
- 8,500 GVWR 20ft.
GVWR 10000 lb.: Capacity 8,500 lb. with 1500 lb. Hitch load. Ramp Capacity 4500 lb.
- 10,000 GVWR 20ft.
Standard Specifications:
- Treated wood deck
- Standard 2 ft. dove tail
- 82″ between fenders
- Braking axles and wheel brakes
- 7000: 3500 lb. braking axles with 4 wheel brakes
- 8500: 4400 lb. braking axles with 4 wheel brakes
- 10000: 5200 lb. braking axles with 4 wheel brakes
- Double eye spring suspension
- West Lake Radial Tires:
- 7000: 205/75 R15 load range D 8 ply rating West Lake Radial tires
- 8500 & 10000: 225/75 R15 load range E 10 ply rating West Lake Radial tires
- 3x3x3/16″ angle frame
- 3x3x3/16″ top rail
- 3″ channel cross members
- Channel wrap-around tongue
- 7000 & 8500: 4″
- 10000: 5″
- 4 ft. full landscape gate (spring-assist standard)
- 2 5/16″ A-frame coupler
- Swing-up jack
- Diamond plate fenders with backs
- Steps in front and behind fenders
- Stake pockets, self charging break away kit, safety chains, full DOT reflective tape, and all rubber mounted LED sealed beam lighting with U.S. made sealed modular harness with 2 year warranty
- Primed, 2 coats of acrylic enamel, pin striped
For a link to view this trailer on Quality Trailers website click here.
Only need a Single Axle Utility Trailer, click here.
[ back to top ]
Purchase Your Tandem Axle Utility Trailer in Indiana
Call us at (317) 743-0020 or fill out the form below and one of our friendly sales associates will be in touch. Thank you.
