Single Axle Utility Trailers
Trailer Sales of Indiana offers several great brands of Single Axle Utility Trailers. Whether you're hauling debris to the landfill, or towing your side-by-side to the trailhead, a single axle utility trailer is a great choice for a low cost multi-purpose trailer. See what utility trailers we offer by clicking between the tabs to compare the values that these brands offer. Call us today and we can help you decide which brand, grade, and GVWR best suits your needs! (317) 743-0020

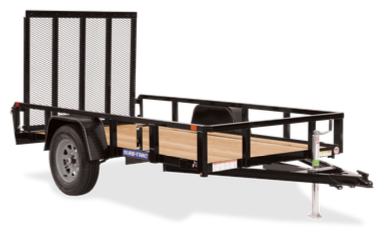

Sure Trac Single Axle Utility Trailers
Standard Specifications
Dimensions
- Length: 8′-14′
- Width: 5′-7′
- Weight: 890 – 1,420 lbs
- GVWR: 2,990 lbs
Frame & Structure
- Frame: 3 x 2 x 3/16 Angle
- Cross Members: 3 x 2 x 3/16 Angle (24” On-Center)
- Top Rail: 2 x 2 Square Tube
- Tongue: 3” Channel (A-Frame)
- Uprights: 2 x 2 Square Tube
- 13″ Tall Sides
- Stake Pockets
- Front and Rear Board Retainers
- Spare Tire Carrier
- Self-Retained Gate Pins
Running Gear
- Axle: 3.5K Idler Axle w/ Easy Lube Hubs
- Suspension: Leaf Spring
- Tires: 205/75R15 LRC
- Wheels: 15″, 5 on 4.5
- Fenders: Tread Plate, Square Rolled
Electrical & Lighting
- Lights: All LED Lights
- Electric Plug: 4-Way Flat Molded Plug
Jacks & Coupler
- Coupler: 2″ A-Frame Coupler
- Jack: Setback 2K Zinc Plated Jack
- Safety Chains
Deck & Finish
- Decking: 2 x 6 Pressure Treated Pine
- Finish: Industrial Grade Polymer Finish, High Gloss Black
Options
- Split Rear Landscape Gate
- 2′ Beavertail For Easier Loading
- Front Mounted Toolbox
- Mesh Sides Upgrade
- 5+ Color Options
Lamar Single Axle Utility Trailers
Lamar Trailer’s UC model is the smallest channel frame utility model. The UC is your top choice for a trailer with enhanced frame stiffness, but does not have the weight of a larger model.
| UC1383x12 | 83″ x 12′: Weight – 1,325 lbs; Payload – 2,175 lbs |
| UC1383x14 | 83″ x 14′: Weight – 1,465 lbs; Payload – 2,035 lbs |
Standard Specifications
Brakes & Suspension:
- 3.5K EZ Lube Idler Spring Axle
Tires:
- 205/75 R15 (C) 6Ply Tire, Spare Tire Mount
Frame:
- 24″ Spaced Crossmembers
- Straight Deck
- Treated Yellow Pine Floor
- 4″ Channel Frame
- Side Rails
- Wrap Tongue
- 2″ X 2″ Angle Toprail
Hitch:
- 2″ 7K Ram A-Frame Cast Iron Coupler
Jack:
- 2K Top-Wind Flip Jack
Cargo Loading:
- 4′ Spring Assisted Lay-Down Gate
- Standard Stake Pockets
Electrical:
- Led Lights
- Weather Resistant Harness (-65°F)
Color:
- Lamar Charcoal Gray Powder Coat
Loading Angles:
-
Straight Deck with 4′ Gate – 24°
Options:
- 2′ Dovetail
- Pipe Rail
- 5k Axle
Please Note – The Picture below shows a Lamar Tandem (two axles instead of one) Axle Utility Trailer – but a Lamar Single Axle Utility Trailer has the same great features that this picture calls attention too!
To view these trailers on Lamar Trailers website click here.
Decided you wanted a Tandem Axle Utility Trailer instead, click here.
[ back to top ]
Quality Single Axle Utility Trailers
General Duty Models
The General Duty single axle is our base model and gets the job done at a great cost. Its main frame consists of 3x3x3/16″.
2990 GVWR Single Axle General Duty – Capacity 2600 lb. with 390 lb. Hitch load
Gate Capacity 2000 lb.
Sizes Available:
60”x10’
77”x10’
77”x12’
77”x14’
Standard Specifications:
- Treated wood deck
- 60″ or 77″ between fenders
- 3500 lb. idler axle
- Double eye spring suspension
- 205/75 R15 load range C 6 ply rating Castle Rock Radial tires
- 3x3x3/16″ angle frame
- 2x2x1/8″ top rail
- 2x2x3/16″ angle cross members on 60″ wide
- 2x2x1/4″ angle cross members on 77″ wide
- 3″ channel tongue
- 4 ft. full landscape gate
- 2″ A-frame coupler
- Top wind jack
- Fenders with backs
- Steps in front and behind fenders
- Safety chains and DOT approved lighting
- Primed, 2 coats of acrylic enamel, pin striped
Options:
- 18″ Mesh Sides Available on Some Models
[ back to top ]
Professional Duty Models
The Professional Grade models keep the heavier main frame of the General Duty model but adds a sealed modular wiring harness with all LED lighting, tubing top rails, and premium radial tires. Another reason to upgrade to the Professional Grade is a spare tire mount comes standard. Adding a spare 205/75 R15 load range D 8 ply rating West Lake Radial tire ensures peace of mind when traveling down the road.
GVWR 2990 lb. – Capacity 2600 lb. with 390 lb. Hitchload
Gate Capacity 2000 lb.
Sizes Available:
60”x10’
77”x10’
77”x12’
77”x14’
Standard Specifications:
- Treated wood deck
- 60″ or 77″ between fenders
- 3500 lb. idler axle
- Double eye spring suspension
- 205/75 R15 load range D 8 ply rating West Lake Radial tires
- Spare Tire Mount
- 3x3x3/16″ angle frame
- 2×2 tubing top rail
- 2x2x3/16″ angle cross members on 60″ wide
- 2x2x1/4″ angle cross members on 77″ wide
- 3″ channel tongue
- 4 ft. spring assisted full landscape gate
- 2″ A-frame coupler
- Swing up jack
- Fenders with backs
- Steps in front and behind fenders
- Safety chains, sealed modular wiring harness with LED lighting, and full reflective tape
- Primed, 2 coats of acrylic enamel, pin striped
Options:
- 18″ Mesh Sides Available on Some Models
To view these trailers on Quality Trailers website click here.
Decided you wanted a Tandem Axle Utility Trailer instead, click here.
[ back to top ]
