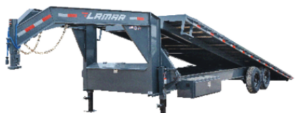

Deckover Tilt Trailers

Available Sizes – Bumper Pull or Gooseneck Options Available

14,000 GVWR 102″ x 24′: Weight – 5,600 lbs: Payload – 8,400 lbs

14,000 GVWR 102″ x 26′: Weight – 5,900 lbs: Payload – 8,100 lbs

16,000 GVWR 102″ x 24′: Weight – 5,750 lbs: Payload – 10,250 lbs

16,000 GVWR 102″ x 26′: Weight – 6,050 lbs: Payload – 9,950 lbs

Available Sizes – Bumper Pull or Gooseneck Options Available

21,000 GVWR 102″ x 26′: Weight – 6,525 lbs: Payload – 14,475 lbs  (3 axle version)

Standard Specifications:

The main upgrade coming from a 14,000 GVWR to a 16,000 GVWR or 21,000 GVWR is that the larger GVWR trailers have a dual channel frame which makes the frame stiffer and stronger over the 14,000 GVWR.

Brakes & Suspension:

• 7K Easy Lube Electric Brake Spring Axles – 14,000 and 21,000 GVWR
• 8K Electric Brake Oil Bath Spring Axles – 16,000 GVWR

Tires:

Frame:

• 10″ 12 lb I-Beam Frame
• 16″ Spaced Crossmembers
• Treated Yellow Pine Floor
• 16,000, 21,000 GVWR – Dual Channel Frame

Hitch:

• 2-5/16″ 21K Demco Adjustable Cast Iron Coupler

Jack:

• Dual 10K Drop-Leg Jack – 14,000 GVWR
• Dual 10K Drop-Leg Jack – 16,000 & 21,000 GVWR

Cargo Loading:

• Expanded Metal Tool Tray
• Rub Rail
• Standard Stake Pockets

Electrical:

• Led Lights
• Weather Resistant Harness (-65°F)

Color:

• Lamar Charcoal Gray Powder Coat

Loading Angles:

• 15 degree tilt angle

To view more details on Lamer Trailers website click here.

Out of your budget? Save some money and buy an Gooseneck Flatbed Trailer that loads & unloads with ramps, click here.

[ back to top ]

Standard Specifications

Dimensions

• GVWR: 14,000 – 21,000 GVWR
• Length: 22′-32′
• Width: 102″
• Deck Height: 36″

Frame & Structure

• Neck: 10″ I-Beam
• Frame: 10″ I-Beam
• Deck frame: 6″ I-Beam
• Crossmembers: 3″ channel, 16″ on-center
• Floor: Treated wood flooring
• Tail: Steel diamond plate knife edge
• Rub rail: 2″ rub rail, pipe spools & stake pockets
• Step: 15″ MAX-step

Axles & Suspension

• Axles: 7,000 lb Dexter grease electric brake (14,000 GVWR, 21,000 GVWR Models), 8,000 lb Dexter oil bath electric brake (16,000 GVWR Model)
• Suspension: Multi-leaf spring
• Wheels: 16” 8-hole wheels (14,000 GVWR, 21,000 GVWR Models), 17.5” 8-Hole Wheels (16,000 GVWR Model)
• Tires: ST235/80 R16 LRE (14,000 GVWR, 21,000 GVWR Models), ST215/75 R17.5 LRH (16,000 GVWR Model)
• Spare: Fold-down spare tire mount

Coupler, Jack & Chains

• Coupler: 2-5/16” adjustable gooseneck
• Jack: (2) 10,000 lb drop-leg
• Safety chains: (2) 5/16” grade 70

Deck & Storage

• Deck: Full tilt-deck
• Side storage: 48″ side-mount toolbox (hydraulic storage)
• Front storage: Full-width toolbox

Hydraulics

• Hydraulics: Power up/power down w/ 12v battery + 5 amp charger
• Cylinder: 5″ x 15.75″ x 2″ + scissor hoist

Electrical

• Lights: LED stop, tail, & clearance lights
• Wiring: 16 ga. 5-way double-insulated wire harness
• Plug: 7-way RV plug w/ cold weather cord

Finish & Protection

• Pretreatment: Mechanical and/or chemical pretreatment for maximum paint adhesion
• Finish: (Black) Sherwin-Williams Powdura OneCure, primer w/ polyester TGIC gloss powder topcoat

Options

• Solar Panel Charger
• Dual Hydraulic Jacks
• ~20 Different Colors Other than Black
• Tuff Wireless Remote
• Raised Neck (6″ or 12″ Extra)
• Oak Floor
• Winch Plate

*Due to the wide range of available configurations, please contact a sales representative if you do not see a specific option listed. We are happy to assist with custom requests.

To view this trailer on Load Trail’s website, click here. Alternatively, if you would like a non-tilt gooseneck flatbed, click here.
