Split Tilt Fender Equipment Trailers

If you're searching for a tilt trailer that is designed for easy loading and unloading due to the split-bed tilting to the ground (with a fixed front bed) you've come to the right place. Trailer Sales of Indiana has you covered with our inventory of tilt equipment trailers that are built to last. Load, haul, and unload your equipment, small tractor, and other goods efficiently with an adjustable tilt trailer. Browse through our offerings using the tabs below, or speak to a sales representative today!  (317) 743-0020

Kraftsman

 15,000 GVWR Split Tilt Fender Equipment Trailer

Model T6-15



Standard Specifications

Construction

  • 6” Channel Main Frame, Tongue, & Wrapper
  • 3” Crosspieces on 16” Centers
  • 12” Tall Bump Rail with “K” Brackets
  • Double-Break Diamond Treadplate Fenders

Electrical

  • Rubber Mounted, Lifetime LED Lighting
  • Marker Lights on Front of Trailer & Steps
  • USA Made Sealed Wiring Harness
  • 7-Way RV-Style Plug

Undercarriage

  • 2 x 7,000 lb. EZ-Lube Axles
  • 12” x 2” Brakes on Both Axles
  • Slipper Spring Suspension
  • 8 on 6.5” Bolt Pattern, 16” x 6” Steel Wheels
  • 4 x 235/80 R16 10 Ply Radial Tires

Dimensions

  • 15,000 GVWR, 11,500 lb. Max Capacity
  • 7’ Stationary Deck, 15’ Tilt Deck Std.
  • 15” Knife-Edge Approach Plate
  • 26” Approx. Deck Height
  • Approx. 4’ Tongue, 6” Channel Construction

Additional Features

  • Nominal 2” Pressure Treated #1 Pine Decking
  • Tilt-Lock Operated from Driver’s Side of Deck
  • 2 5/16” Adj. Channel Coupler, Safety Chains
  • Stake Pockets & Rail Rails with Chain Spools
  • Lockable Toolbox, 12K Spring Loaded Jack

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Options

  • Red/Tan Paint
  • Fork Holders
  • Oak Deck Upgrade

To view more details on Kraftsman Trailers website click here.

Prefer a Gooseneck version instead, click here for more details.

[ back to top ]



16,000 GVWR Split Tilt Fender Equipment Trailer

Kraftsman 16,000 GVWR Equipment Tilt Trailer



Standard Specifications

Construction

  • 6” Channel Main Frame, Tongue, & Wrapper
  • 3” Crosspieces on 16” Centers
  • 12” Tall Bump Rail with “K” Brackets
  • Double-Break Diamond Treadplate Fenders

Electrical

  • Rubber Mounted, Lifetime LED Lighting
  • Marker Lights on Front of Trailer & Steps
  • USA Made Sealed Wiring Harness
  • 7-Way RV-Style Plug

Undercarriage

  • 2 x 8,000 lb. EZ-Lube Dexter Axles
  • 12” x 2” Brakes on Both Axles
  • Heavy Duty Slipper Spring Suspension
  • 8 on 6.5” Bolt Pattern, 16” x 6” Steel Wheels
  • 4 x 235/85 R16 16 Ply Radial Tires

Dimensions

  • 16,000 GVWR, 12,500 lb. Max Capacity
  • 7’ Stationary Deck, 15’ Tilt Deck Std.
  • 15” Knife-Edge Approach Plate
  • 26” Approx. Deck Height
  • Approx. 4’ Tongue, 6” Channel Construction

Additional Features

  • Nominal 2” Pressure Treated #1 Pine Decking
  • Tilt-Lock Operated from Driver’s Side of Deck
  • 2 5/16” Adj. Channel Coupler, Safety Chains
  • Stake Pockets & Rail Rails with Chain Spools
  • Lockable Toolbox, 12K Spring Loaded Jack

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Options

  • Red/Tan Paint
  • Fork Holders
  • Oak Deck Upgrade

To view more details on Kraftsman Trailers website click here.

[ back to top ]



18,000 GVWR Split Tilt Fender Equipment Trailer

Versus the 16,000 GVWR, the 18,000 GVWR model has upgraded tires (ST215/75 R17.5 Steel Wheels) and closer crossmembers (12″ versus 16″).



Standard Specifications

Construction

  • 6” Channel Main Frame, Tongue, & Wrapper
  • 3” Crosspieces on 12” Centers
  • 12” Tall Bump Rail with “K” Brackets
  • Double-Break Diamond Treadplate Fenders

Electrical

  • Rubber Mounted, Lifetime LED Lighting
  • Marker Lights on Front of Trailer & Steps
  • USA Made Sealed Wiring Harness
  • 7-Way RV-Style Plug

Undercarriage

  • 2 x 8,000 lb. EZ-Lube Dexter Axles
  • 12.25” x 2.5” Brakes on Both Axles
  • 7 Leaf Heavy Duty Slipper Spring Suspension
  • 8 on 6.5” Bolt Pattern, 17.5” x 6.75” Steel Wheels
  • 4 x 215/75 R17.5 16 Ply Radial Tires

Dimensions

  • 18,000 GVWR, 14,500 lb. Max Capacity
  • 7’ Stationary Deck, 15’ Tilt Deck Std.
  • 15” Knife-Edge Approach Plate
  • 26” Approx. Deck Height
  • Approx. 4’ Tongue, 6” Channel Construction

Additional Features

  • Nominal 2” Pressure Treated #1 Pine Decking
  • Tilt-Lock Operated from Driver’s Side of Deck
  • 2 5/16” Adj. Channel Coupler, Safety Chains
  • Stake Pockets & Rail Rails with Chain Spools
  • Lockable Toolbox, 12K Spring Loaded Jack

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Options

  • Red/Tan Paint
  • Fork Holders
  • Oak Deck Upgrade

To view more details on Kraftsman Trailers website click here.

Out of your budget? Save some money and buy an Equipment Trailer that loads & unloads with ramps, click here.

[ back to top ]



Load Trail

14,000 GVWR Tilt-N-Go Trailer

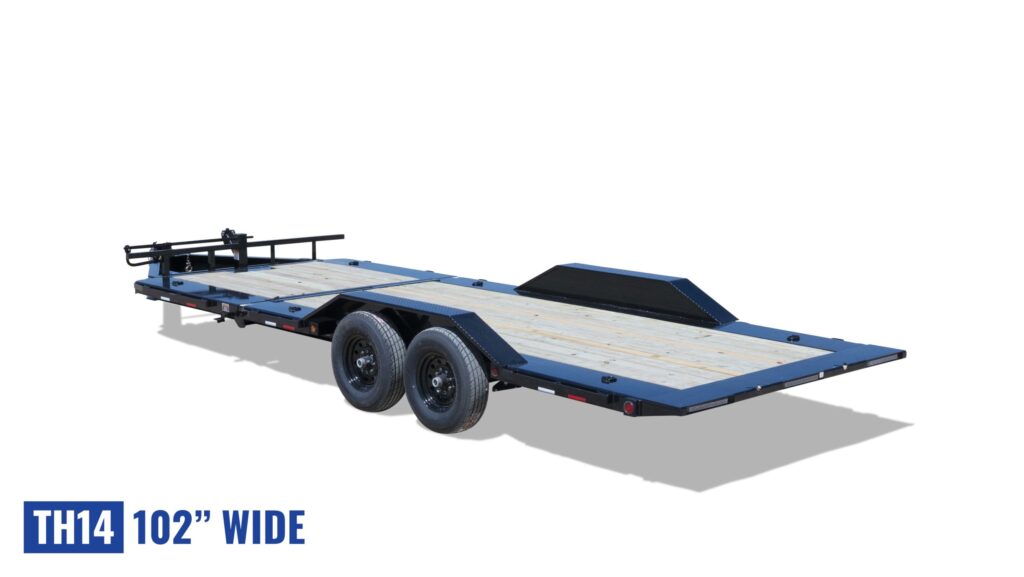

Load Trail Split Tilt Fender Equipment Trailer - TH Model

Standard Specifications

Dimensions

  • Length: 16′-26′
  • Width: 83″-102″
  • Deck Height: 24″
  • Tilt Angle: 10 Degrees

Structure

  • Tongue: 8” I-Beam
  • Frame: 8” I-Beam
  • Crossmembers: 3” Channel, 16” On-center

Running Gear

  • Axles: 7,000 lb Dexter Electric/Torsion (14,000 GVWR, 21,000 GVWR), 8,000 lb Dexter Oil Bath Electric/Torsion Axles (16,000 GVWR)
  • Suspension: Torsion
  • Coupler: 2-5/16” Adjustable
  • Jack: (1) 10,000 lb Drop-Leg
  • Wheels: 16” 8-Hole
  • Tires: ST235/80 R16 LRE (14,000 GVWR), ST215/75 R17.5 LRH 16 Ply (16,000 GVWR)

Hydraulics & Deck

  • Hydraulics: 3” x 10” x 1.25” Gravity Cylinder
  • Deck: 2’ Stationary Deck is Standard on an 18′ model, 4’ Standard on 20′ model, 6’ Standard on 22′ Model, and 8’ Standard on a 24′ Model
  • Tail: 1/8″ Steel Diamond Plate Knife Edge
  • Floor: Treated Wood Flooring

Details

  • Fenders: Steel Diamond Plate
  • D-Rings: (4) Weld-on D-rings
  • Lights: LED Stop, Tail, & Clearance
  • Wiring: 16 Ga. 5-Way Double-Insulated Wire Harness
  • Plug: 7-way Cold Weather Cord
  • Safety Chains: (2) 5/16” Grade 70

Finish

  • Pretreatment: Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
  • Finish: (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

Options

  • Drive Over Fenders
  • ~20 Colors
  • Hydraulic Jack/s
  • Oak Floor
  • Front Tool Box
  • Fork Holders

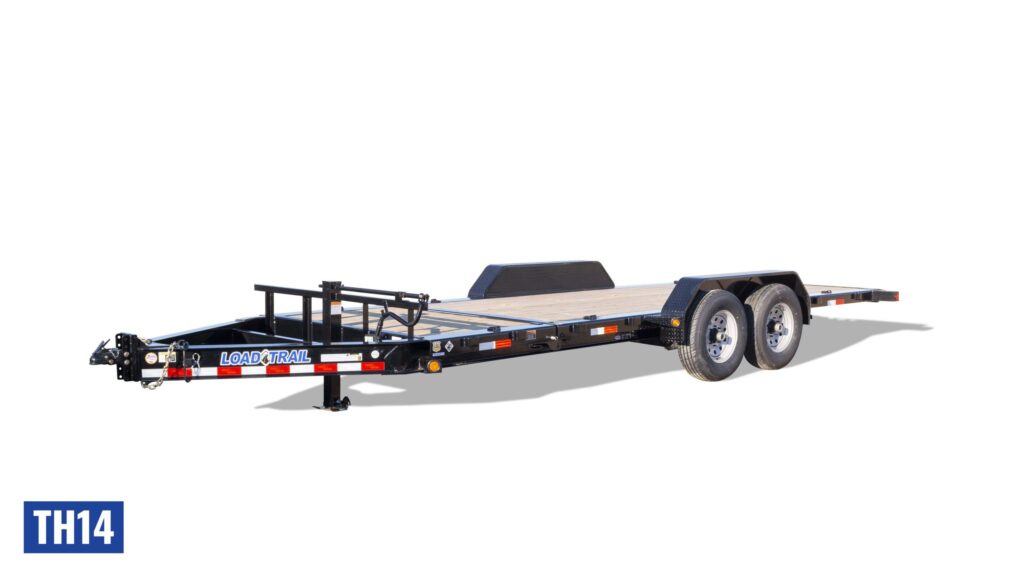

Load Trail Split Tilt Fender Equipment Trailer - TH Model

[ back to top ]



20,000 GVWR Tilt-N-Go Trailer

Standard Specifications

Dimensions

  • Length: 20′-24′
  • Width: 83″
  • Deck Height: 26-3/4″
  • Tilt Angle: 12 Degrees

Structure

  • Tongue: 10” I-Beam
  • Frame: 10” I-Beam
  • Crossmembers: 3” Channel, 16” On-Center

Running Gear

  • Axles: (2) 10,000 Lb Dexter Electric/Torsion (Forward Self Adjusting)
  • Suspension: Torsion
  • Coupler: 2-5/16” Adjustable
  • Jack: (2) 10,000 Lb Drop-Leg
  • Wheels: 17.5” 8-Hole
  • Tires: ST215/75 R17.5 LRH

Hydraulics & Deck

  • Hydraulics: 3” x 10” x 1.25” Gravity Cylinder
  • Deck: 16’ Tilt-Deck (See Notes for Stationary Specs)
  • Tail: 1/8″ Steel Diamond Plate Knife Edge
  • Floor: Treated Wood Flooring

Details

  • Fenders: Steel Diamond Plate
  • D-Rings: (4) Weld-On D-Rings
  • Lights: LED Stop, Tail, & Clearance
  • Wiring: 16 Ga. 5-Way Double-Insulated Wire Harness
  • Plug: 7-Way Cold Weather Cord
  • Safety Chains: (2) 5/16” Grade 70

Finish

  • Pretreatment: Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
  • Finish: (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat

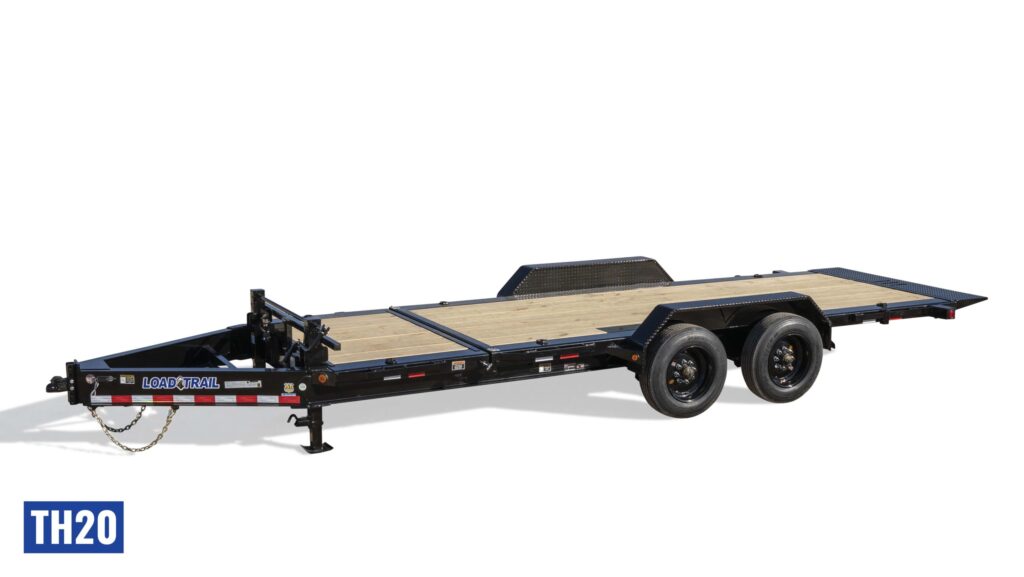

Load Trail Split Tilt Fender Equipment Trailer - TH20 Model

[ back to top ]

Lamar

14,000 GVWR Split Tilt Fender Equipment Trailer

Lamar Brand Tilt Equipment Trailer

Sizes Available:

83″ x 18′: Weight – 3,270 lbs; Payload – 10,730 lbs
83″ x 20′: Weight – 3,510 lbs; Payload – 10,490 lbs
83″ x 22′: Weight – 3,670 lbs; Payload – 10,330 lbs

Standard Specifications

Brakes & Suspension:

  • 7K Easy Lube Electric Brake 22.5° Up Torsion Axles

Tires:

  • 235/80 R16 (E)10Ply Tire

Frame:

  • 12″ Spaced Crossmembers
  • 6″ Channel Frame
  • Treated Yellow Pine Floor

Hitch:

  • 2-5/16″ 21K Demco Adjustable Cast Iron Coupler

Jack:

  • Single 10K Drop-Leg Jack

Cargo Loading:

  • Rub Rail
  • Standard Stake Pockets
  • Six Weld On D-Rings

Electrical:

  • Gravity Up & Down Cushioned Cylinder
  • Led Lights
  • Weather Resistant Harness (-65°F)

Color:

  • Lamar Charcoal Gray Powder Coat

Options:

  • Front Tool Box
  • Oak Floor
  • Gooseneck Upgrade

Lamar Brand Tilt Equipment Trailer

[ back to top ]

To view more details on Lamar Trailers website click here.

Out of your budget? Save some money and buy an equipment trailer that loads and unloads with a ramp, click here.



Quality

PROFESSIONAL GRADE –  15,000 GVWR



PROFESSIONAL GRADE Quality Brand Tilt Equipment Trailer

GVWR 15000 lb., 22 ft. – Capacity 13000 lb. with 2000 lb. Hitchload



Heavy duty frame with 16″ cross member spacing, premium radial tires, LED rubber mounted sealed beam lighting in enclosed light boxes with sealed modular wiring harness.

Standard Specifications:

  • Treated wood deck
  • 82” between fenders
  • 7000 lb. braking axles with 4 wheel brakes
  • Slipper spring suspension
  • 235/80 R16 load range E 10 ply rating West Lake Radial tires
  • 6” channel frame
  • 3″ channel cross members – 16” spacing
  • 6” channel wrap-around tongue, toolbox with lockable lid
  • 2 5/16″ adjustable coupler
  • 12000 lb. drop-foot jack
  • Heavy duty diamond plate fenders with backs
  • Stake pockets and rubrail
  • Self charging break away kit, safety chains, full DOT reflective tape and all rubber mounted sealed beam LED lighting with U.S. made sealed modular harness with 2 year warranty
  • Primed, 2 coats of acrylic enamel, pin striped

[ back to top ]



PROFESSIONAL GRADE – 17,000 GVWR



GVWR 17000 lb., 22 ft. – Capacity 13000 lb. with 2000 lb. Hitchload



Heavy duty frame with 16″ cross member spacing, premium radial tires, LED rubber mounted sealed beam lighting in enclosed light boxes with sealed modular wiring harness

Standard Specifications:

  • Treated wood deck
  • 82” between fenders
  • 7500 lb. braking axles with 4 wheel brakes
  • Slipper spring suspension
  • ST 215/75R 17.5 LRJ WestLake 8 Lug Rim & Tire
  • 6” channel frame
  • 3″ channel cross members – 16” spacing
  • 6” channel wrap-around tongue, toolbox with lockable lid
  • 2 5/16″ adjustable coupler
  • 12000 lb. drop-foot jack
  • Heavy duty diamond plate fenders with backs
  • Stake pockets and rubrail
  • Self charging break away kit, safety chains, full DOT reflective tape and all rubber mounted sealed beam LED lighting with U.S. made sealed modular harness with 2 year warranty
  • Primed, 2 coats of acrylic enamel, pin striped

To view more details on Quality Trailers website click here.

Out of your budget? Save some money and buy an Equipment Trailer that loads & unloads with ramps, click here.

[ back to top ]

Hillcrest

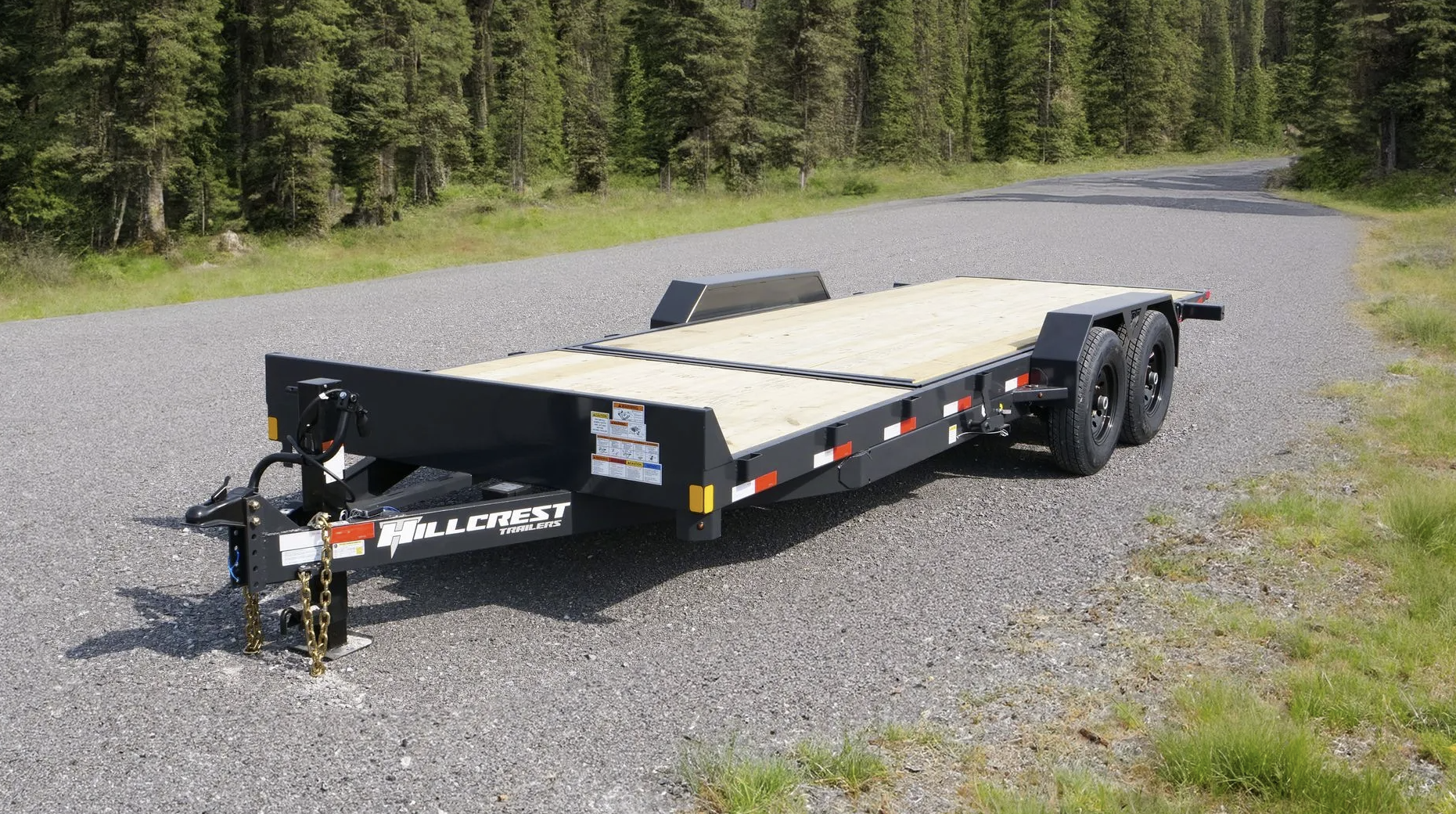

The Hillcrest Split Tilt Equipment trailer combines a 4-6 foot fixed front deck for hauling attachments or extra cargo with a rear tilt section for easy equipment loading. Its hydraulic valve control system gives you smooth, controlled movement when raising or lowering the tilt deck, making loading and unloading safer and more manageable.

Standard Specifications (14,000 GVWR – 16,000 GVWR)

Size & Capacity

  • Lengths Available: 16’+4’=20′. 16’+6’=22′
  • Width: 82″ Between Fenders
  • Weight: 3,680 – 4,140 lbs
  • Payload Capacity: 10,210 – 11,970 lbs
  • GVWR: 14,000 – 16,000 lbs

Chassis/Structure

  • 6″ Channel Frame
  • 6″ Channel Wrap Tongue
  • 3” Channel 16″ OC Crossmembers 2” Treated Floor
  • 2” Treated Floor
  • Removable Double Broke Fenders

Running Gear

  • Axles
    • 2 – 7000# Cambered Axles w/ Quick Lube Hubs (14,000 GVWR)
    • 2 – 8000# Hybrid Cambered Axles (16,000 GVWR)
  • Suspension – Multi‑Leaf Spring w/ Equalizer
  • Tires – 235/80 R16 (E) 10-Ply – 8 Lug
  • Brakes – Forward Self-Adjusting Electric Brakes on All Axles

Coupling & Jack

  • Coupler – 2-5/16″ Adjustable Coupler. Demco Coupler Available Only on 16,000 GVWR Models.
  • Chains – 3/8″ Grade 70 Safety Chains with Safety Latch Hooks
  • Jack – Single 12000# Drop Leg Jack

Lighting & Wiring

  • Wiring – Sealed Modular Wiring Harness
  • Plug – 7-Way RV Plug
  • Lights – Recessed Grommet-Mounted L.E.D. Lighting

Cargo Loading Features

  • Hydraulic Dampening with Valve Control for Tilt Operations
  • 12 Degree Load Angle
  • 4 – 5/8″ D-Rings
  • Stake Pockets

Paint

  • Black Gray Sherwin Williams Super Durable Powder

Additional(Non Standard) Options Available

  • Tool Box
  • Spare Tire Mount

Contact Us Today to Purchase Your Tilt Fender Equipment Trailer in Indiana

Call us at  (317) 743-0020 or fill out the form below and one of our friendly sales associates will be in touch. Thank you.

"*" indicates required fields

Your Name*

By submitting this form, I agree to receive communications by text message about my inquiry. You may opt-out by replying STOP or reply HELP for more information. Message frequency varies. Message and data rates may apply. You may review our privacy policy to learn how your data is used.

This field is for validation purposes and should be left unchanged.
