Split Tilt Gooseneck Fender Equipment Trailers

Our Split Tilt Gooseneck Fender Equipment Trailers offer the same features that our tilt trailers offer, but in addition also have the added benefits that towing with a Gooseneck offer. Call us today!  (317) 743-0020

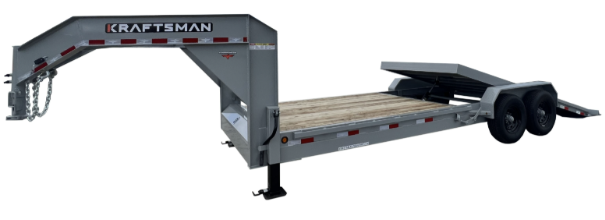

Kraftsman

15,000 GVWR

Standard Specifications

Construction

  • Doubled 6” Channel Main Frame
  • 3” Crosspieces on 16” Centers
  • 12” I-Beam Neck and Uprights
  • Double-Break Diamond Treadplate Fenders
  • 12” Tall Bump Rail with “K” Brackets

Undercarriage

  • 7,000 lb. EZ-Lube Axles
  • 12” x 2” Brakes on Both Axles
  • Slipper Spring Suspension
  • 8 on 6.5” Bolt Pattern, 16” x 6” Steel Wheels
  • 235/80 R16 10 Ply Radial Tires

Additional Features

  • Nominal 2” Pressure Treated #1 Pine Decking (Oak Upgrade Available)
  • Tilt-Lock Operated from Driver’s Side of Deck
  • 2 5/16” Adjustable Gooseneck Coupler
  • Stake Pockets & Rub Rails with Chain Spools
  • Dual 12k Drop Leg, Spring-Loaded Jacks

Electrical

  • Rubber Mounted, Lifetime LED Lighting
  • Marker Lights on Front of Trailer & Steps
  • USA Made Sealed Wiring Harness
  • 7-Way RV-Style Plug

Dimensions

  • 15,000 GVWR, 11,000 lb. Max Capacity
  • 7’ Stationary Deck, 15’ Tilt Deck Std.
  • 15” Knife-Edge Approach Plate
  • 26” Approx. Deck Height
  • Approx. 8’ Gooseneck

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals



To view more details on Kraftsman Trailers website click here.

16,000 GVWR Standard Specifications

Construction

  • Doubled 6” Channel Main Frame
  • 3” Crosspieces on 16” Centers
  • 12” I-Beam Neck and Uprights
  • Double-Break Diamond Treadplate Fenders

Electrical

  • Rubber Mounted, Lifetime LED Lighting
  • Marker Lights on Front of Trailer & Steps
  • USA Made Sealed Wiring Harness
  • 7-Way RV-Style Plug

Undercarriage

  • 2 x 8,000 lb. Dexter EZ-Lube Axles
  • 12” x 2” Brakes on Both Axles
  • Heavy Duty Slipper Spring Suspension
  • 8 on 6.5” Bolt Pattern, 16” x 6” Steel Wheels
  • 4 x 235/85 R16 Radial Tires

Dimensions

  • 16,000 GVWR, 12,500 lb. Max Capacity
  • 7’ Stationary Deck, 15’ Tilt Deck Std.
  • 15” Knife-Edge Approach Plate
  • 26” Approx. Deck Height
  • Approx. 8’ Gooseneck

Additional Features

  • Nominal 2” Pressure Treated #1 Pine Decking
  • Tilt-Lock Operated from Driver’s Side of Deck
  • 2 5/16” Adjustable Gooseneck Coupler
  • Stake Pockets & Rail Rails with Chain Spools
  • Dual 12k Drop Leg, Spring-Loaded Jacks

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Options

  • Oak Deck
  • Fork Holders
  • 18K Upgrade(12″ OC Crossmembers and 215/75 Tires)

If you want a bumper pull version of this trailer, click here.

Quality

Professional Grade – 15,000 GVWR

Quality Brand Fender Gooseneck Equipment Tilt Trailers



15000 GWVR Professional Grade

  • Capacity 13000 lb. with 2000 lb. Hitchload
  • 24’6″ with 10′ fixed front section and 15′ tilting section

Standard Specifications:

  • Treated wood deck
  • 82″ between fenders
  • 7000 lb. braking axles with 4 wheel brakes
  • Slipper spring suspension
  • 235/80 R16 load range E 10 ply rating West Lake Radial tires
  • 6” channel frame with doubler
  • 3″ channel cross members – 16” spacing
  • 8” channel neck and uprights with tool tray and lockable lid
  • 2 5/16 adjustable coupler
  • 12000 lb. drop-foot jack
  • Heavy duty diamond plate fenders with backs
  • Stake pockets and rub rail
  • Self charging break away kit, safety chains, full DOT reflective tape and all rubber mounted LED sealed beam lighting with U.S. made sealed modular harness with 2 year warranty
  • Primed, 2 coats of acrylic enamel, pin striped

To view more details on Quality Trailers website click here.

Out of your budget? Save some money and buy a Fender Equipment Trailer that loads & unloads with ramps, click here.
