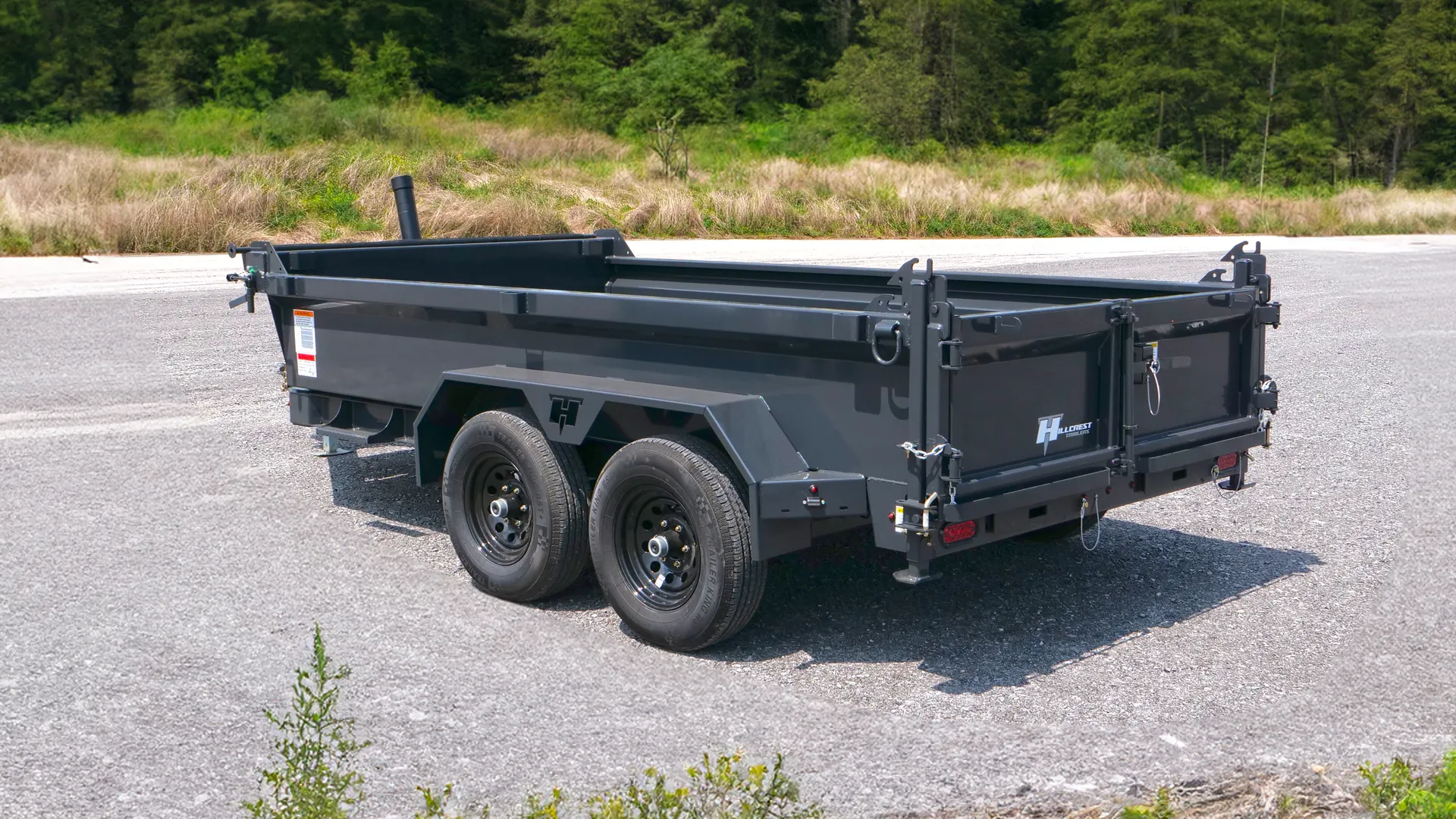

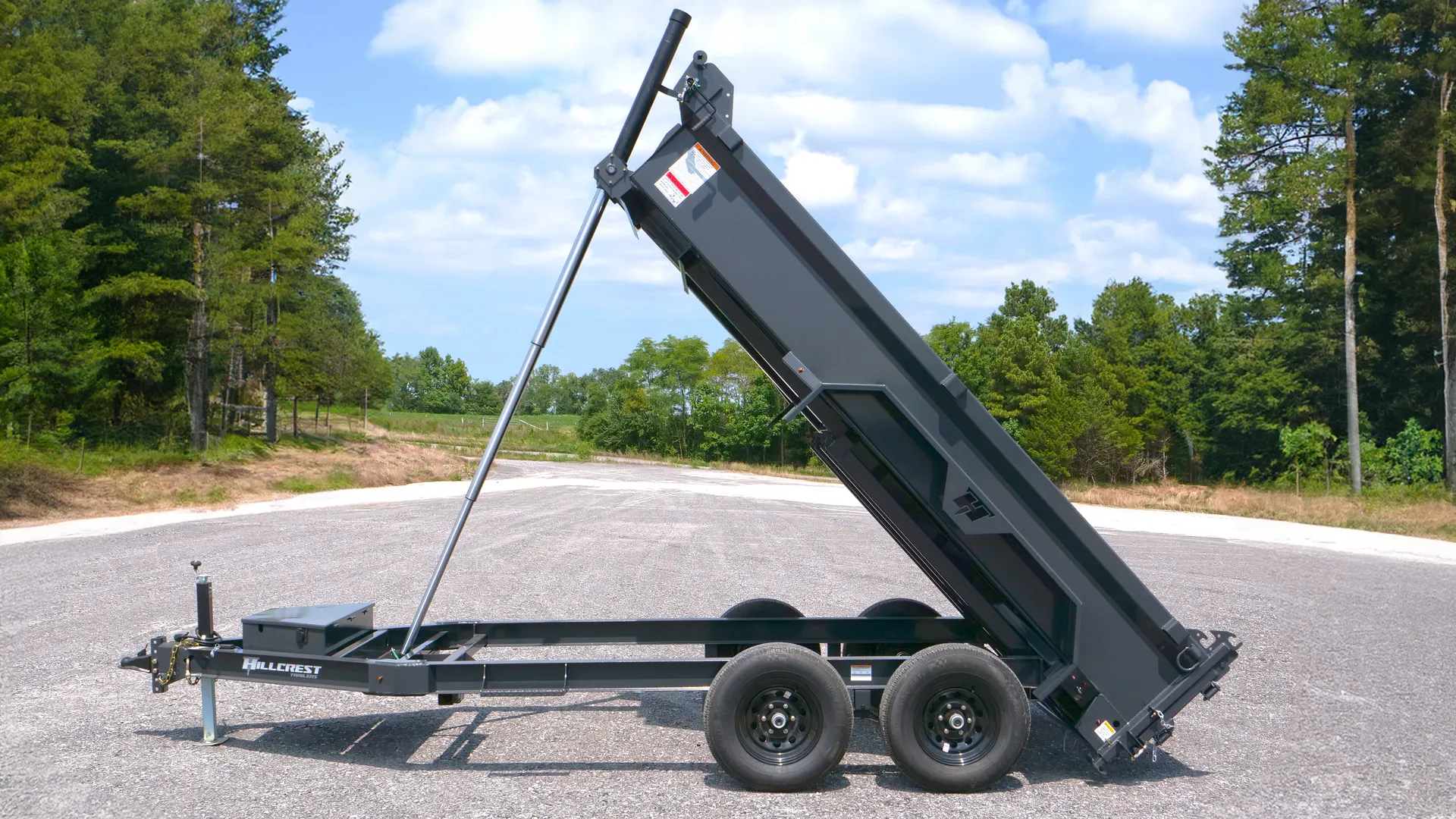

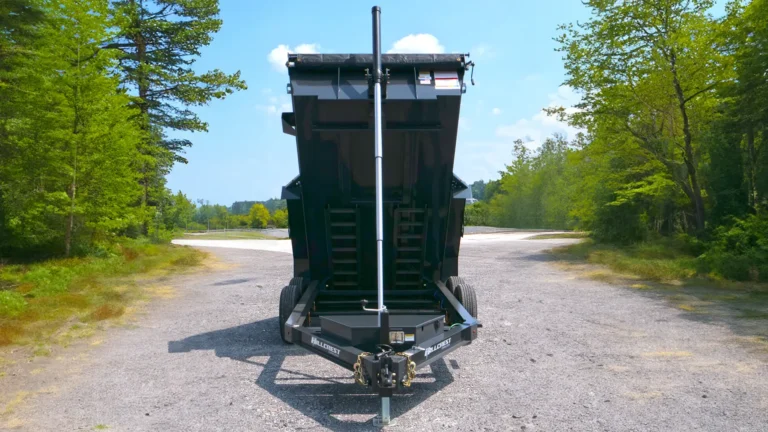

Hillcrest 10,000 GVWR Dump Trailers

The Hillcrest 10K Standard Duty Dump Trailer delivers quality and performance in a dependable, mid-duty package. Built with 2 – 6,000# premium cambered axles and quick-lube hubs, it offers a smooth ride and excellent load-handling capability. Forward self-adjusting brakes, multi-leaf slipper spring suspension with equalizer, and a 6” I-beam frame and tongue provide the strength and control you need on the job.

Available 10,000 GVWR Dump Trailer Sizes

73″ x 12′ – Empty Weight 3,150 lbs. Capacity 6,845 lbs

Standard Specifications

Frame & Structure

6″ I-Beam Tongue, 9 lbs. per foot
6″ I-Beam Frame, 9 lbs. per foot
Full Length Fabricated 10 ga Cross-Member Braces
10 Gauge Floor
20″ Tall Sides
Formed Strong Top Rail
Double Broke Fenders
Stake Pockets Along Both Sides

Axles, Suspension & Brakes

2 – 6000# Premium, Cambered Axles with Quick-Lubricating Hubs
Multi-Leaf Slipper Spring w/ Equalizer
Forward Self-Adjusting Electric Brakes on Both Axles

Coupler, Jack & Safety

2-5/16″ Adjustable Coupler
7,000# Top Wind, Drop Leg, Set-Back Jack
1/4” Grade 70 Safety Chains with Safety Latch Hooks (2 each)

Electrical & Charging

7-Way RV Trailer Plug
Sealed Modular Wiring Harness
5A 110V On-Board Battery Charger
Optional Rear Stabilizer Stands

Tires & Running Gear

ST225/75 R-15 Load Range D Tires
6-Bolt Wheel Pattern

Hydraulics

Power Up / Gravity Down Movement
12-Ton 3-Stage Telescopic Cylinder

Gates & Loading

Rear Combo Gate (Barn Doors & Spreader Gate)
6.5′ Heavy Duty Ramps

Convenience Features

(6) 5/8″ D-Rings Inside Bed for Cargo Control
J-Hooks Along Sides for Cargo Control
Convenient Side-Step for Easy Access
Lockable Pump and Battery Box Mounted in Front of Bed

Tarp & Protection

Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
