Doolittle 14,000 GVWR Dump Trailers
Doolittle 14,000 GVWR dump trailers are built with both durability and convenience in mind. They come equipped with stake pockets and tie rails, a safety prop rod for bed support, and an easy-access lockable hydraulic box. And thanks to Doolittle’s hand-prepped, acid-washed finish with 2-part epoxy primer and polyurethane paint, you’ll get a 5-year shine that resists rust and peeling—far superior to standard powder coat. Call us at (317) 743-0020

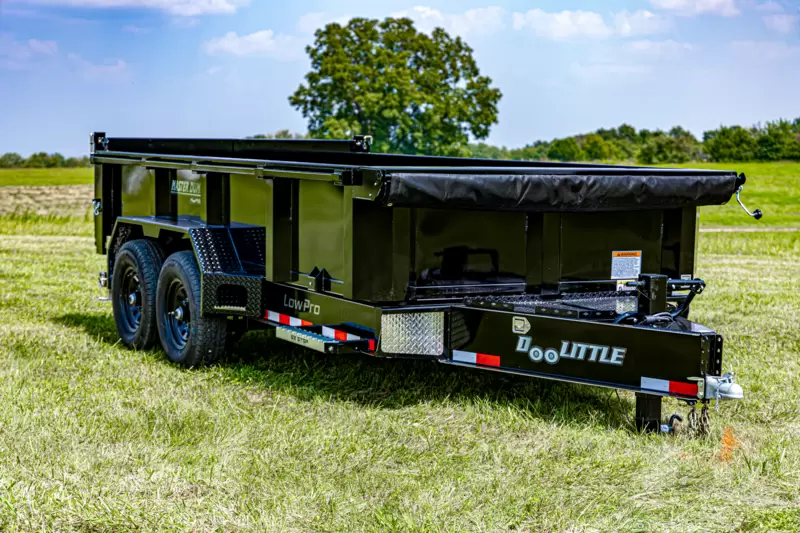

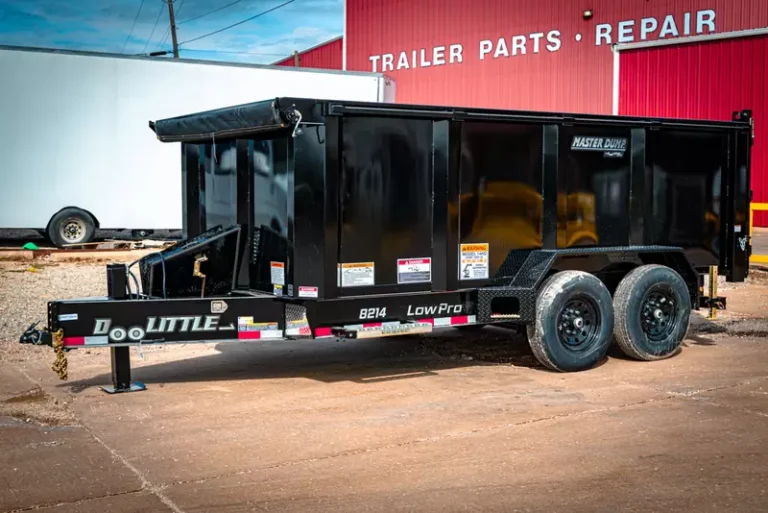

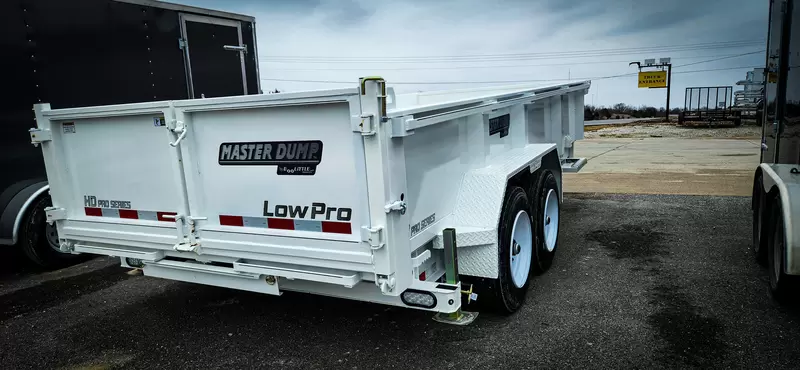

DooLittle Master Dump Trailer 8200 Series – 82″ x 14′ 14,000 GVWR
GVWR: 14,000 lb.
Capacity: 11,800 lb.
Empty Weight: 4,200 lb.
Also Available in Gooseneck and/or 16′ Long
Standard Specifications
Frame & Structure
- 10″ 12 lbs. per foot I-Beam Frame
- 6″ Structural Channel Tongue
- 3” Channel Cross Members Approx. 16” o.c.
- 7 Gauge Floor
- 24” Sides
- Stake Pockets and Tie Rails
- 1.5″ x 3/8″ Heavy Duty Tie Rail with Board Holders

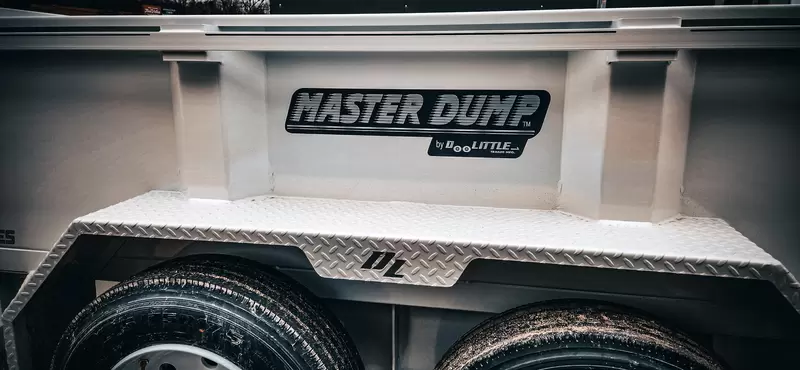

- HD Treadplate Fenders (Gusseted Front & Back)
- 4 EZ Steps
- EZ Steps on all four corners
- Zinc Plated EZ Steps Built in Front Fender Gussets
- 2 Zinc Plated Xtreme Duty EZ Steps (82″ Wide Models)

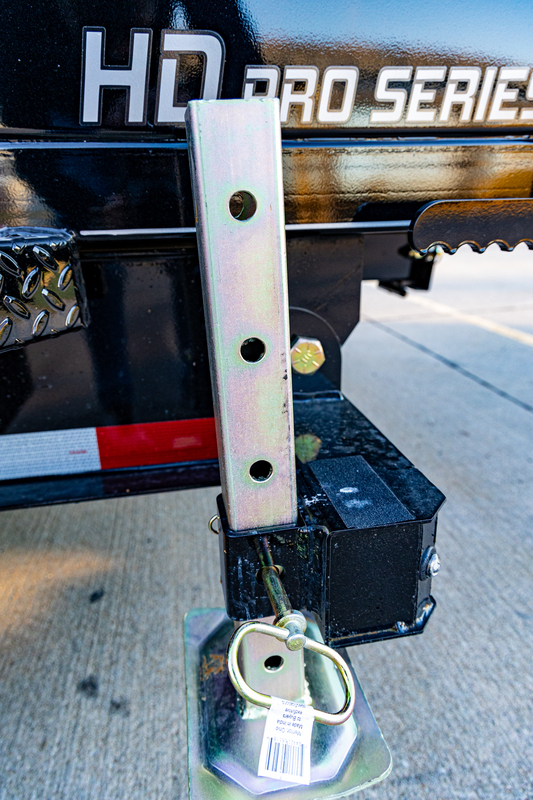

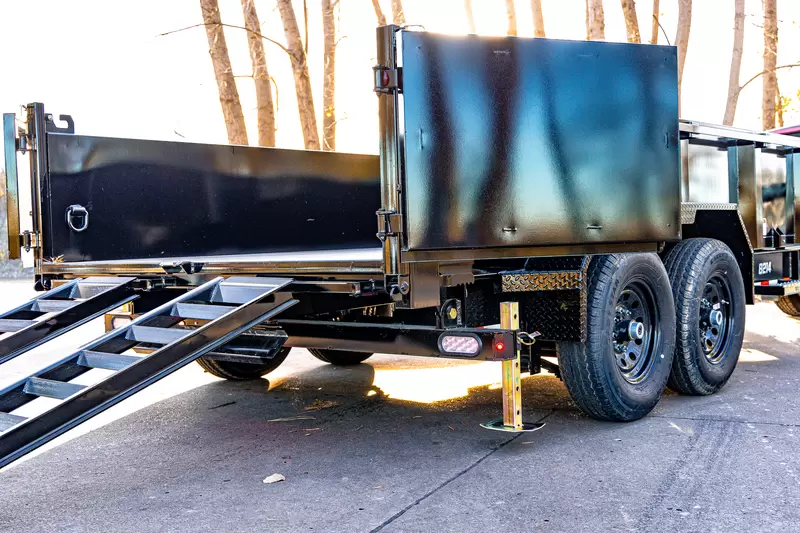

- 2 Zinc Plated Rear Stabilizer Load Supports
- 28″ Deck Height
- 4 – 6K D-Rings
Hydraulics & Electrical

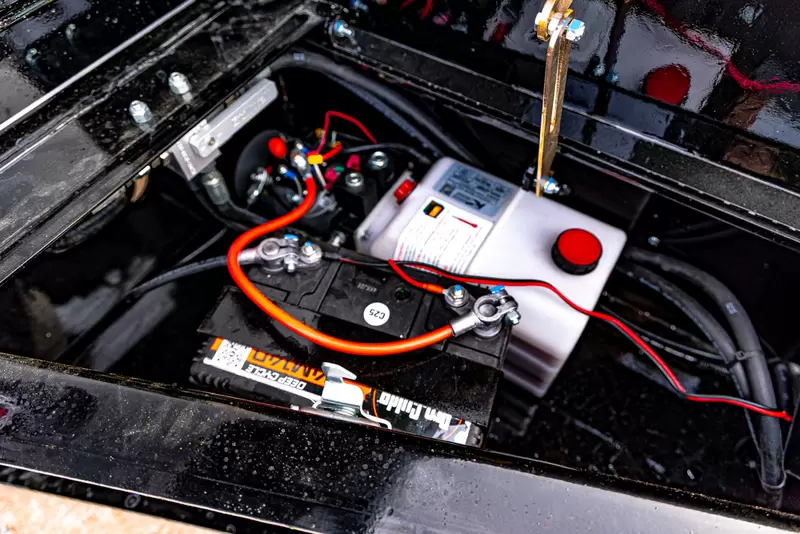

- Self-contained KTI Hydraulic Pump with 15’ Control Lead
- 3 Way KTI Pump
- Wireless Remote
- Deep Cycle Interstate Marine Battery
- Easy Access Lockable Hydraulic Box
- 5 amp, 12V Maintenance Charger/110 Hookup
- Dexter Axles – 7K EZ Lube
- 4 Wheel Electric Brakes
- 7-way RV Plug – Charges Battery When Driving
Lighting & Safety
- Fully Sealed Bumper with flush mount LED lights

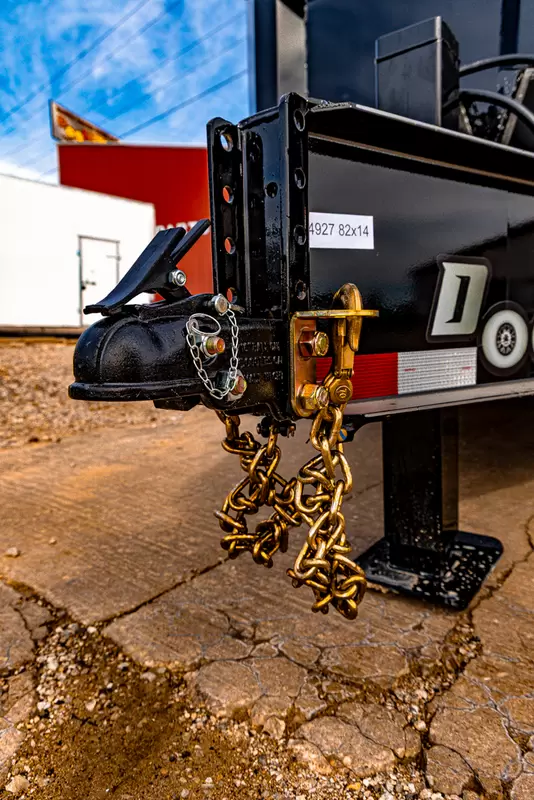

- 6 Hole Adjustable Zinc Coated Cast Coupler
- Breakaway Safety System
- Removable Safety Chains w/ Weather Hangers

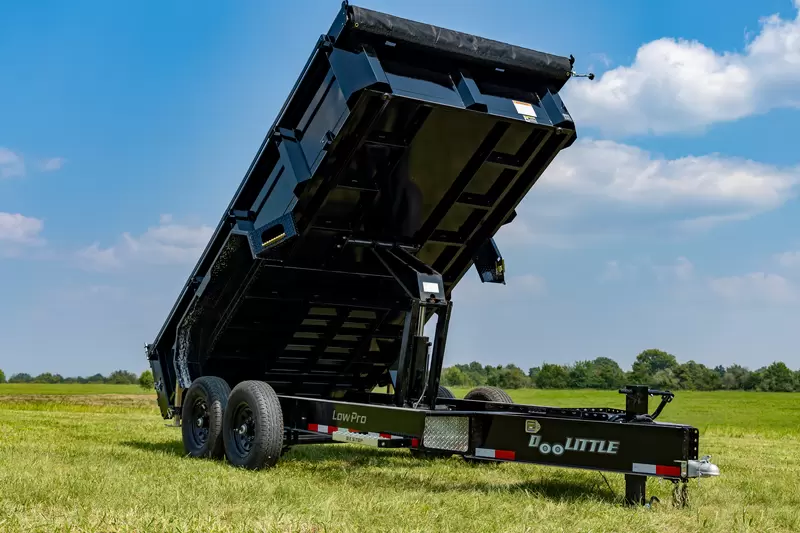

- Safety Prop Rod Bed Support
Convenience & Usability

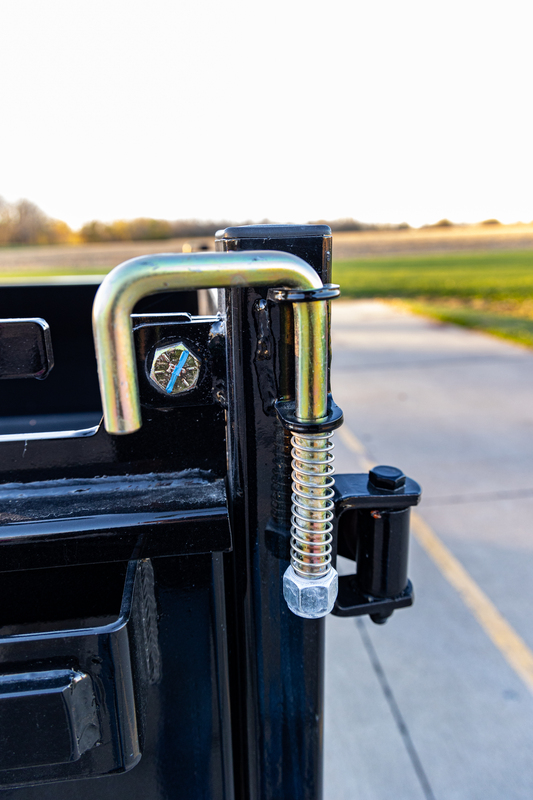

- EZ Slam Latches on Rear Tailgate
- EZ Adjust Spread Gate
- Dual Underbody Shovel & Rake Storage System

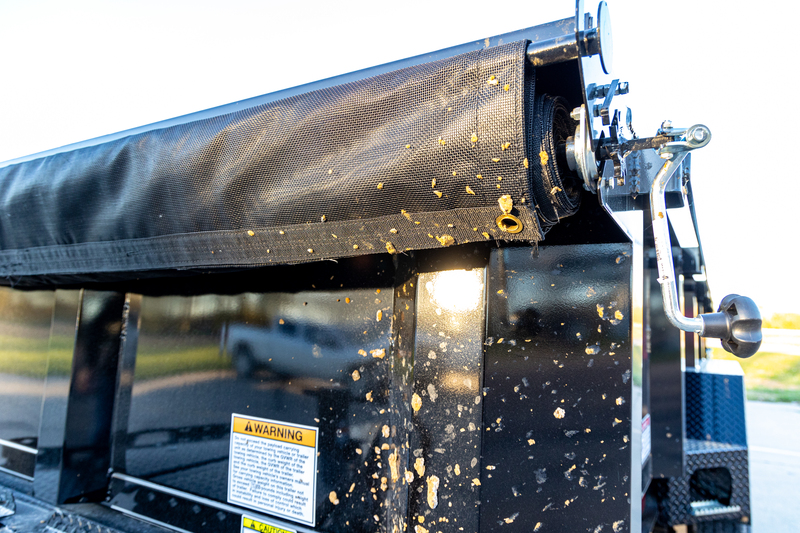

- Shielded Tarp Kit
Finish & Protection
- Hand Prepped & Acid Washed for Superior Paint Adhesion
- 2 Part Epoxy Primer and 2 Part Polyurethane Paint
TOUGHER THAN THE REST
At Doolittle Trailers, we understand the importance of durability and longevity when it comes to your trailer’s finish. That’s why we go the extra mile to ensure that our trailers are prepped and finished with top-quality materials that are built to last.
Each Doolittle trailer is prepped with a two-part Epoxy Primer, providing a strong foundation for the paint to adhere to. We then apply a two-part Polyurethane Paint finish, which has been proven to be more durable than traditional powder coat finishes. This combination of primer and paint not only enhances the appearance of your trailer but also provides superior protection against the elements, abrasion, and corrosion.
With our advanced painting process, you can trust that your Doolittle Trailer is built to handle whatever you throw at it. Whether you’re hauling heavy equipment, landscaping materials, or recreational gear, our trailers are tough enough to stand the test of time, ensuring that they look great and perform reliably for years to come.
Each Doolittle trailer is prepped with a two-part Epoxy Primer, providing a strong foundation for the paint to adhere to. We then apply a two-part Polyurethane Paint finish, which has been proven to be more durable than traditional powder coat finishes. This combination of primer and paint not only enhances the appearance of your trailer but also provides superior protection against the elements, abrasion, and corrosion.
With our advanced painting process, you can trust that your Doolittle Trailer is built to handle whatever you throw at it. Whether you’re hauling heavy equipment, landscaping materials, or recreational gear, our trailers are tough enough to stand the test of time, ensuring that they look great and perform reliably for years to come.
