Hillcrest 17,600 GVWR Dump Trailers
The Hillcrest 17.6K GVWR Dump Trailer is built for serious commercial-grade hauling. With tandem 8,000 lb premium axles, a heavy-duty 12-ton telescopic cylinder, and a robust I-beam frame, this trailer is ready for demanding loads like gravel, demolition debris, and equipment. It features a power up/gravity down hydraulic system, a rear combo gate, and optional 40” high sides for added capacity. With a fully-formed tarp shroud, sealed wiring, and lockable battery and pump box, this trailer delivers on both durability and function. For contractors who need strength, stability, and reliable performance—job after job—Hillcrest delivers. Call us today to get one for yourself. (317) 743-0020

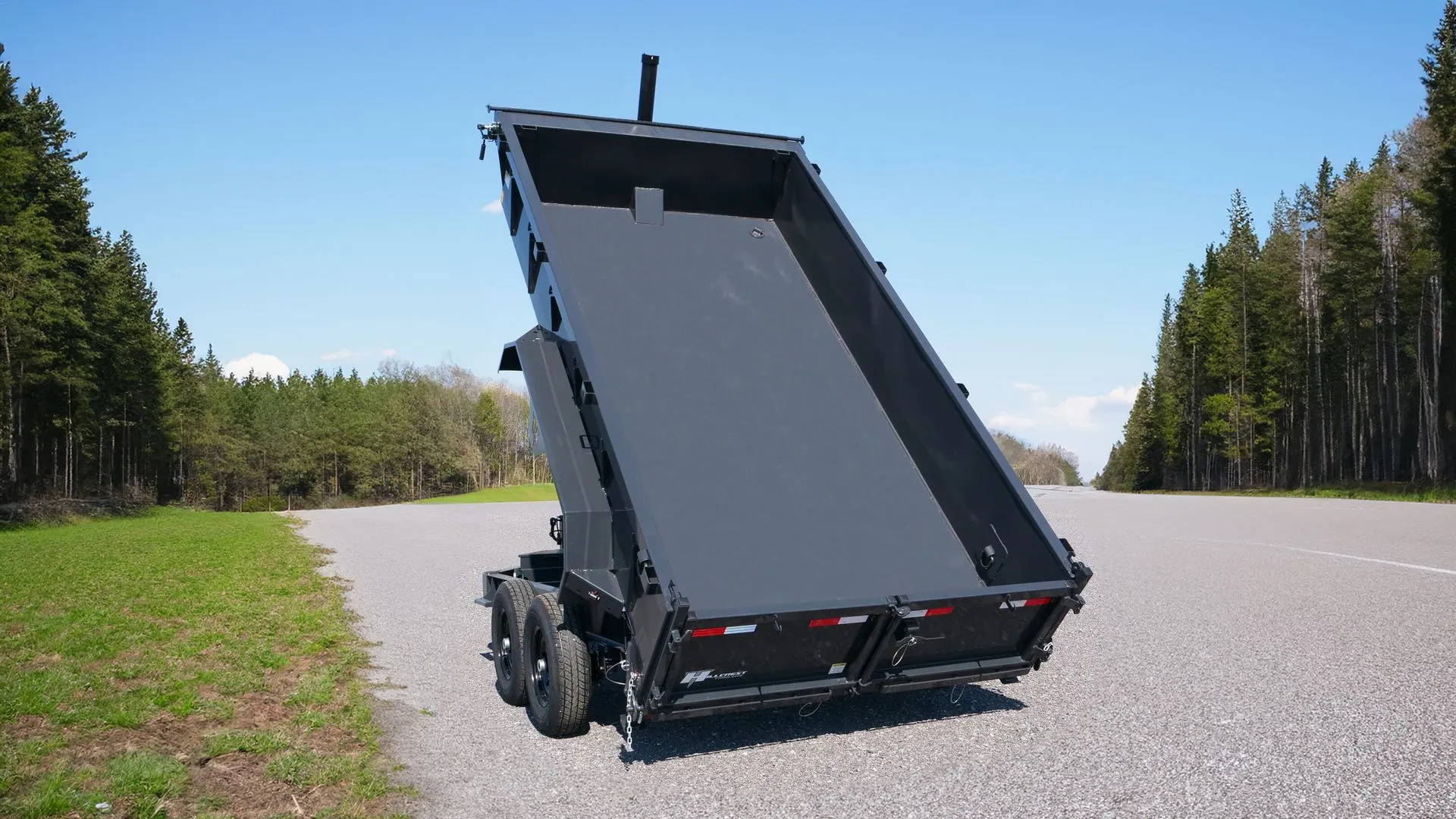

*14K Model Shown Above For Reference
Available 17,600 GVWR Dump Trailer Sizes
- 83″x14′ w/ 24″ Sides. Weight 4,755 lbs. Capacity 12,845 lbs
- 83″x14′ w/ 40″ Sides. Weight 5,482 lbs. Capacity 12,118 lbs
- 83″x16′ w/ 24″ Sides. Weight 5,030 lbs. Capacity 12,570 lbs
- 83″x16′ w/ 40″ Sides. Weight 5,880 lbs. Capacity 11,720 lbs
Standard Specifications
Frame & Structure
- 8″ I-Beam Tongue, 13LB
- 8″ I-Beam Frame, 13LB
- 3″ Channel Cross-Members on 12″ Centers
- 7 Gauge Floor
- 24″ or 40″ Sides
- Formed Strong Top Rail
- Stake Pockets Along Both Sides
- Double Broke Fenders
Axles, Suspension & Brakes
- 2 – 8000# Premium, Cambered Axles with Oil Bath Hubs
- Multi-Leaf Slipper Spring w/ Equalizer
- Forward Self-Adjusting Electric Brakes on Both Axles
Coupler, Jack & Safety
- 2-5/16″ Adjustable Coupler
- 12,000# Top Wind, Drop Leg, Set-Back Jack
- 3/8″ Grade 70 Safety Chains with Latch Hooks (2 ea)
- Rear Stabilizer Stands
Electrical & Lighting
- 7-Way RV Trailer Plug
- Sealed Modular Wiring Harness
Tires & Running Gear
- ST215/75R17.5 LRJ Tire 16 Ply (18PR) – 8 Lug
- (6) 5/8″ D-Rings Inside Bed for Cargo Control
Hydraulics
- Power Up / Gravity Down Hydraulic System
- 12-Ton 3-Stage Telescopic Cylinder
Gates & Loading
- Rear Combo Gate (Barn Doors & Spreader Gate)
- 6.5′ Standard or Heavy Duty Ramps
- Rear Stabilizer Stands
Convenience Features
- Convenient Side-Step for Easy Access
- Along-Side J-Hooks for Cargo Control
- Lockable Pump and Battery Box Mounted in Front of Bed
Tarp & Protection
- Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders
Options
- Hydraulic Jack/s
To view this trailer on Hillcrest Trailer’s Website, click here.
