Construction
Doubled 6” Channel Main Frame
3” Crosspieces on 16” Centers

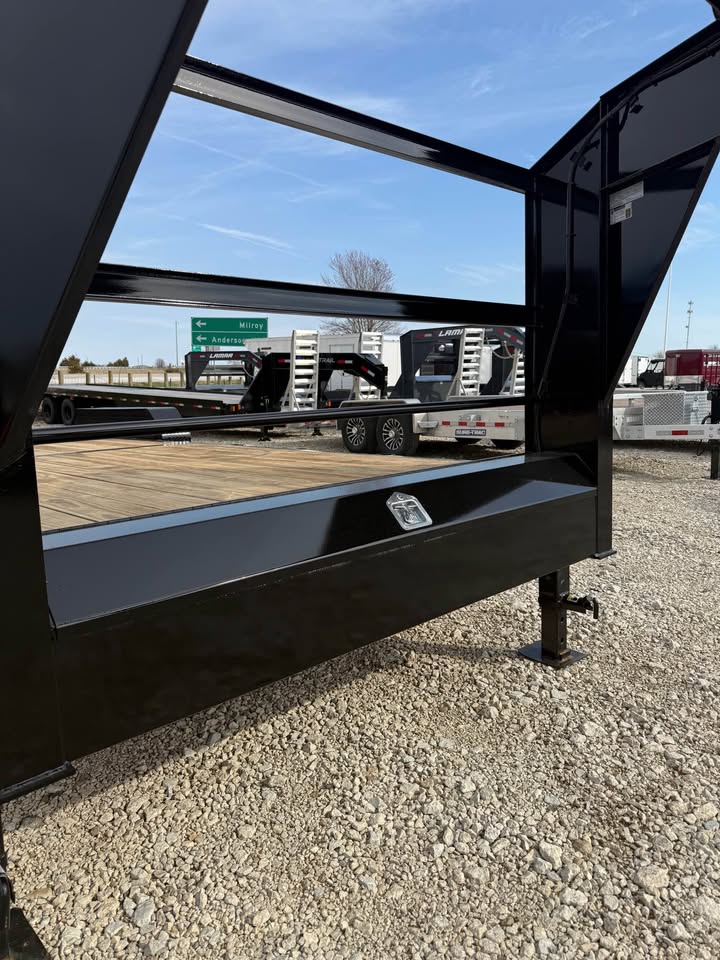

12” I-Beam Neck and Uprights

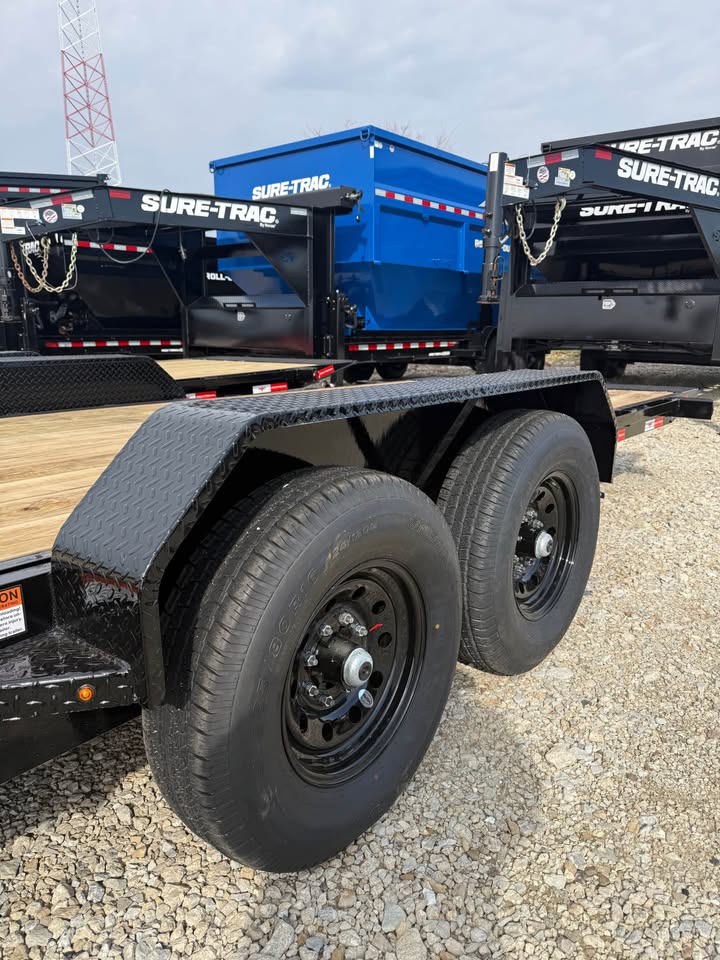

Double-Break Diamond Treadplate Fenders
Electrical
Rubber Mounted, Lifetime LED Lighting
Marker Lights on Front of Trailer & Steps
USA Made Sealed Wiring Harness
7-Way RV-Style Plug
Undercarriage
2 x 7,000 lb. EZ-Lube Axles
12” x 2” Brakes on Both Axles
Slipper Spring Suspension
8 on 6.5” Bolt Pattern, 16” x 6” Steel Wheels
4 x 235/80 R16 10 Ply Radial Tires
Dimensions
15” Knife-Edge Approach Plate
26” Approx. Deck Height

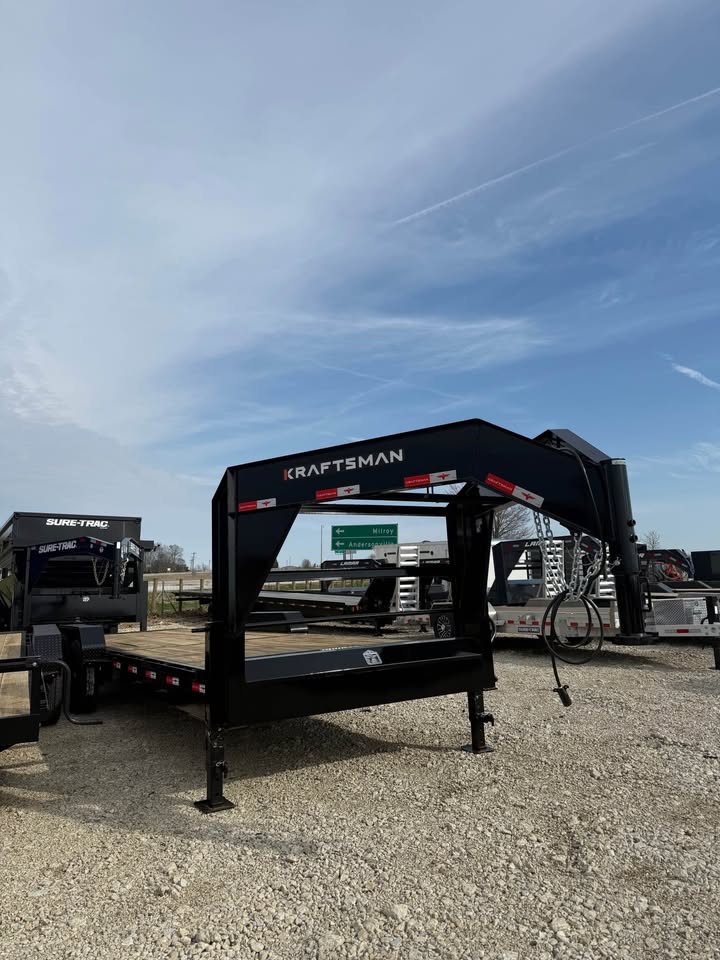

Approx. 8’ Gooseneck
Additional Features

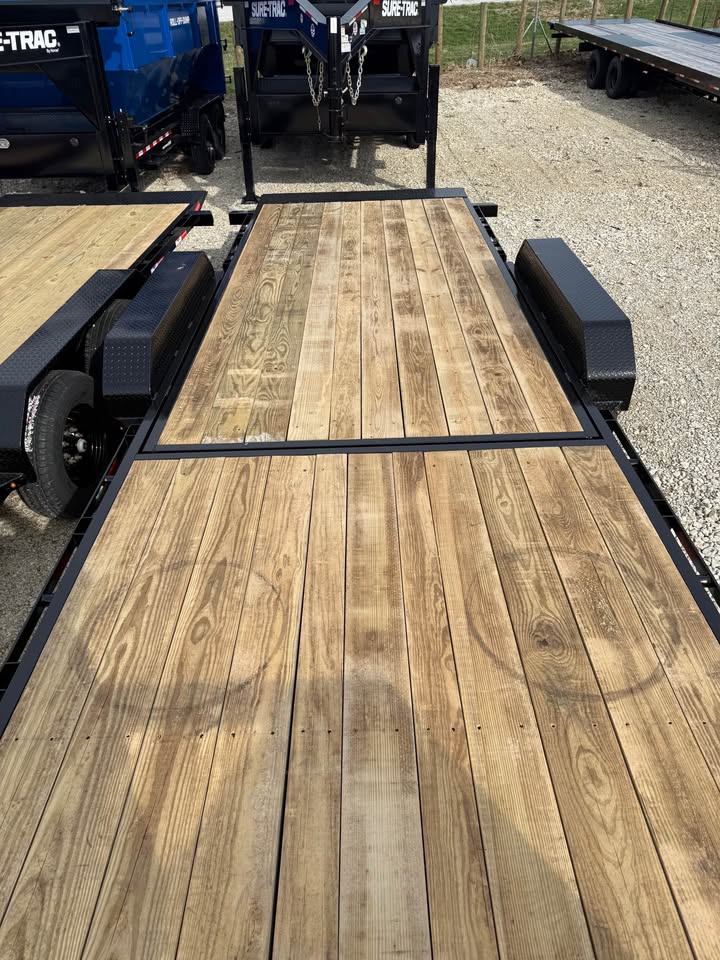

Nominal 2” Pressure Treated #1 Pine Decking
Tilt-Lock Operated from Driver’s Side of Deck
2 5/16” Adjustable Gooseneck Coupler
Stake Pockets & Rub Rails with Chain Spools
Dual 12k Drop Leg, Spring-Loaded Jacks
Finish
High Pressure Phosphate Wash
Primed Top & Bottom w/ Automotive Primer
Two Top Coats of 2-Part PPG Black Gloss
DOT Reflective Tape, Kraftsman Decals
Safety & Operational Decals
