Frame : 12", 14 lb/ft I-Beam
Frame : Low Profile Pierced Beam Frame
Frame : Side Rails - 6" Steel Channel
Frame : Undercarriage Cross Bracing
Crossmembers : 3" Steel Channel, 16" On-Center

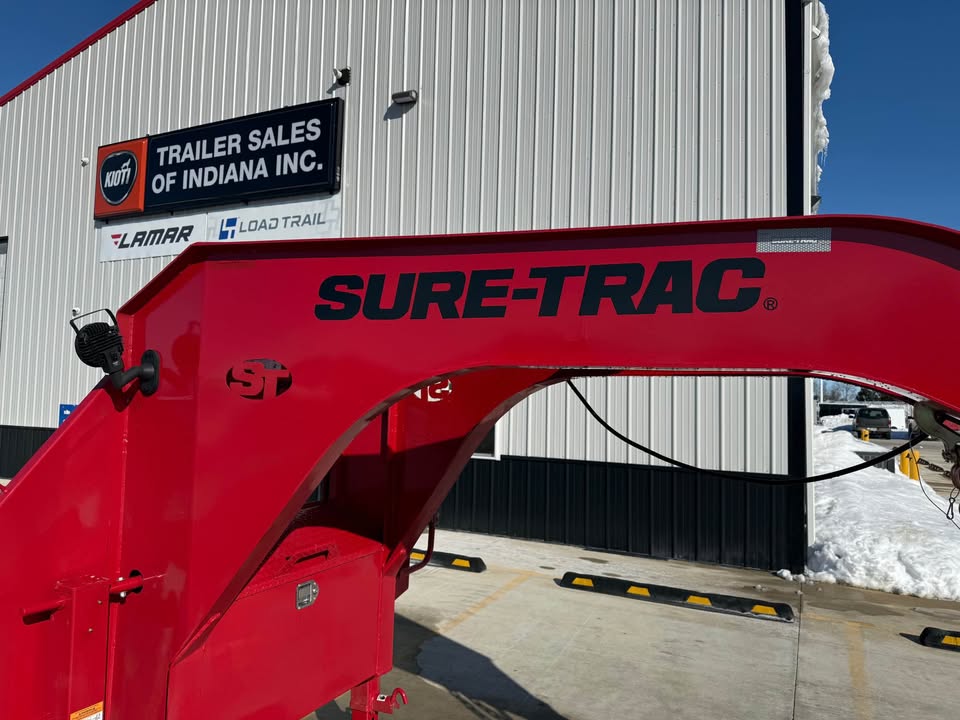

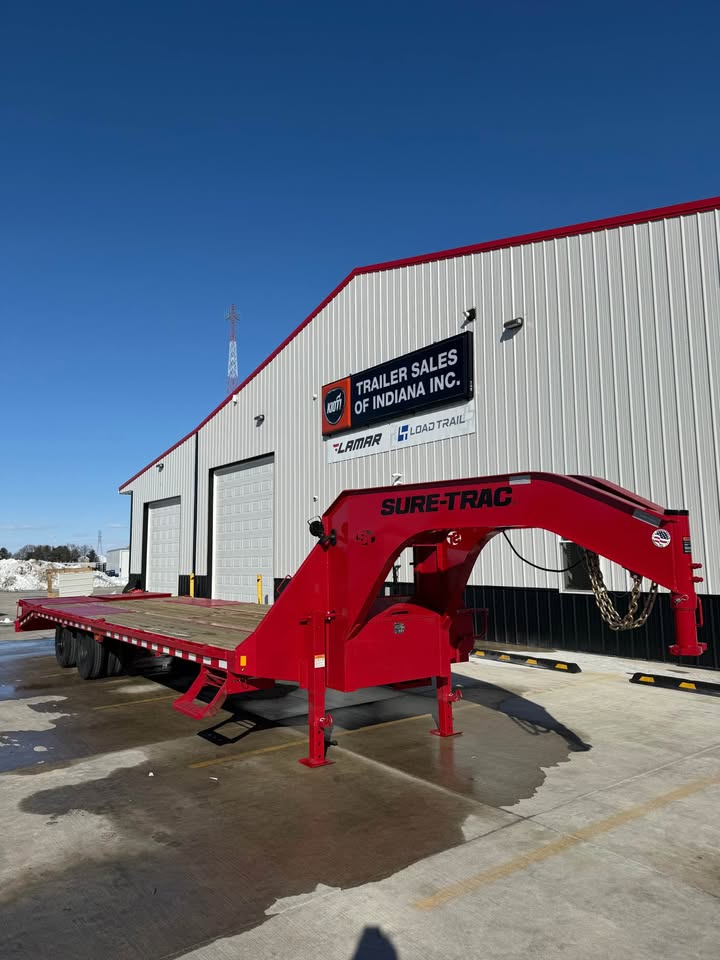

Tongue : Fabricated Single Piece Gooseneck

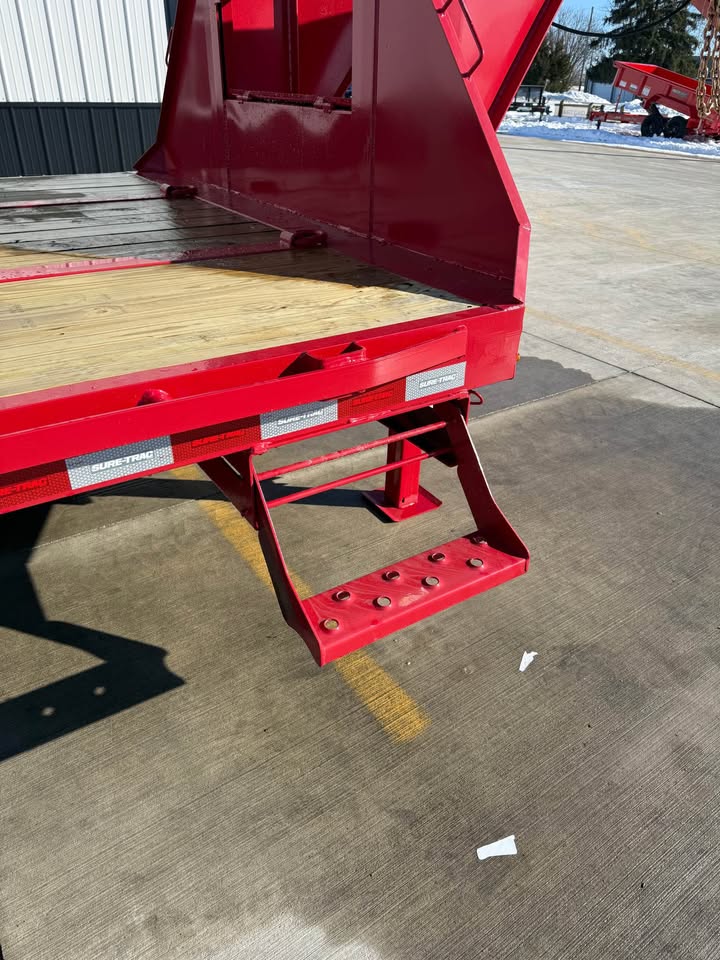

Integrated Step(s) : Drop Down Side Step (1 on each side)

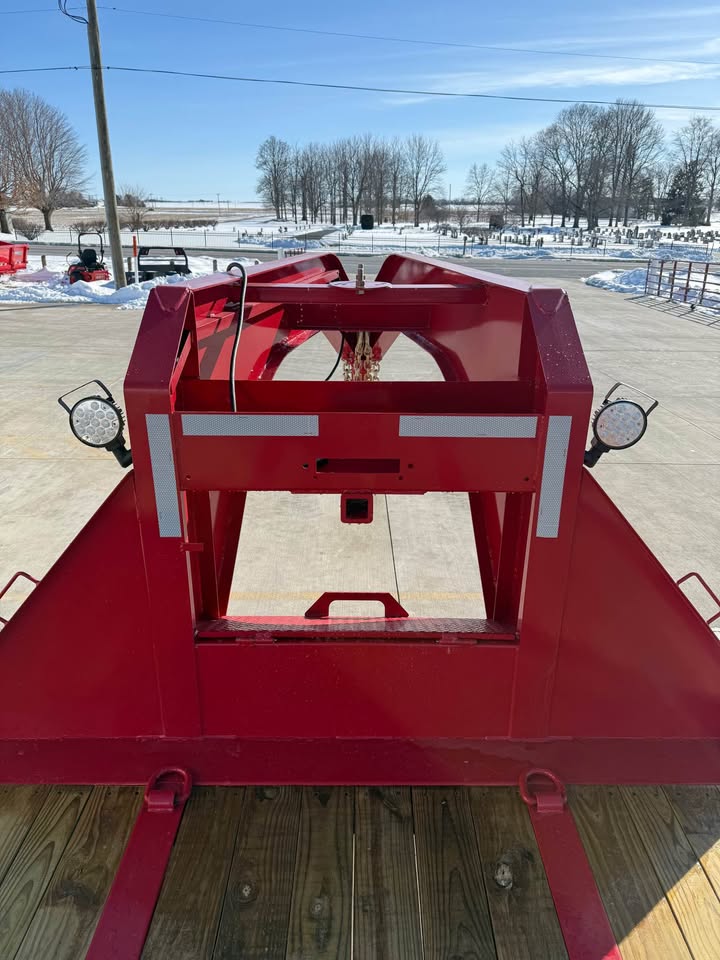

Coupler : 2-5/16" Adjustable Gooseneck
Safety Chains : DOT Compliant
Safety Chains : Holders on Tongue
Tongue Jack : Dual 12K, 2-Speed Landing Gear

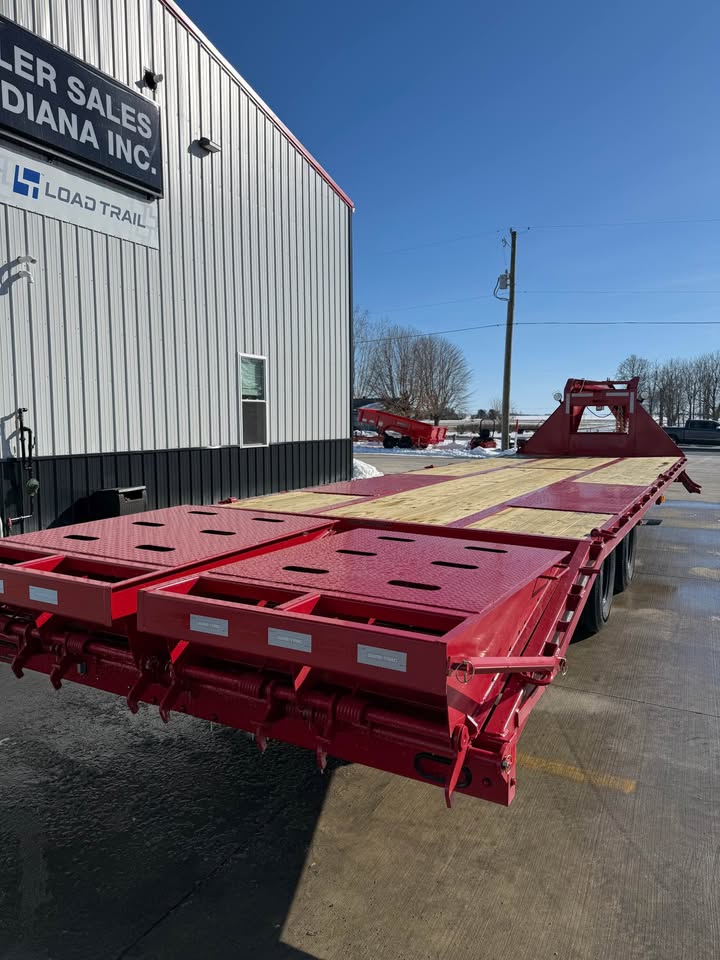

Beavertail : 5' Cleated
Ramp(s) : Full Width EZ-Lift Ramps

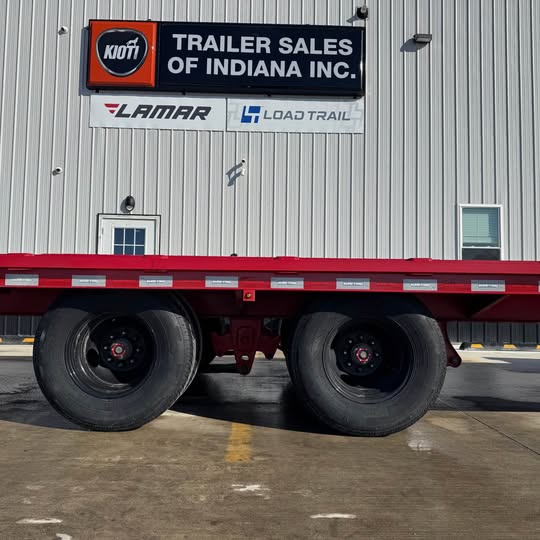

Axle : (2) 10000 lb. Slipper Spring Brake
Axle : Hutch Spring Suspension
Hubs : Oil Bath
Breakaway : Battery, Switch, and Lanyard
Tires : ST235/80R16E 10-PLY
Wheels : 16" Dual, 8-Lug Steel
Mud Flaps : Large, 20"W x 24"L
Exterior Finish : Industrial Grade Polymer Finish
Decking : Steel Tread Plate Over Wheels
Decking : 2" Pressure Treated Pine
Tie Downs : (8) 3/4" D-Rings
Tie Downs : Stake Pockets, Chain Spools, and Rub Rail
Exterior Storage : Spare Tire Carrier, Recessed In Neck
Exterior Storage : Tool Tray and Winch Receiver Tube (In Neck)
Exterior Storage : Integrated Gooseneck Toolbox
Connector Plug : Round 7-pin Blade
Connector Plug : Holder on Tongue
Exterior Lights : Full LED, DOT Compliant
Exterior Lights : (2) LED Swivel Loading Light (2,000 Lumens)
Exterior Lights : Mid Ship Turn Signals
12V Electrical : 12 Volt DC 31 Battery
