Load Trail Deckover Dump Trailers
Deckover dump trailers are designed for maximum versatility and heavy-duty performance. With a wider deck that sits above the wheels, they offer more loading space and higher ground clearance—ideal for rough terrain or large job sites. One of their standout features is the fold-down or removable sides, which make it easy to load pallets, lumber, or oversized materials from the sides with a forklift or by hand. Whether you're hauling debris, equipment, or bulky cargo, deckover dumps provide the flexibility and durability to get the job done efficiently. If you are in the market for one, we might have what you are looking for. Call us at (317) 743-0020
DZ14 Model
Standard Specifications
- G.V.W.R: 14,000 lbs
- G.A.W.R: 7,000 lbs / Axle
- Width: 83″
- Length: 12’–16′
Frame & Structure
- Tongue: 10” I-Beam
- Frame: 10” I-Beam
- Crossmembers: 4″ Channel
- Bed Frame: 2″ x 6″ Tubing
- Bed Crossmembers: 3″ Channel
Axles & Suspension
- Axles: (2) 7,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
- Suspension: Multi-Leaf Spring
Coupler & Jack
- Coupler: 2-5/16” Adjustable
- Jack: (1) 10,000 lb Drop-Leg
Wheels & Tires
- Wheels: 16” 8-Hole Wheels
- Tires: ST235/80 R16 LRE
Body
- Sides: 18″ High, 10 Gauge Fold-down
- Floor: 10 Gauge Smooth Plate
- Fenders: Steel Diamond Plate
Ramps & Gate
- Ramps: 80″ x 16″ Rear Slide-In Ramps
- Gate: 2-Way Spreader Gate
Hydraulics
- Pump: 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
- Controller: 2-Button w/12′ Control Cable
- Battery: 12v Battery w/5amp Trickle Charger
- Cylinder: 5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
Tarp & Tie Downs
- Tarp: E-Z Lock Mesh Tarp System w/Cover
- D-Rings: (4) 3″ Weld-on D-Rings
Lights & Wiring
- Lights: LED Stop, Tail, & Clearance Lights
- Wiring: 16 Ga. 5-Way Double-Insulated Wire Harness
- Plug: 7-way Cold Weather Cord
Safety
- Safety Chains: (2) 5/16″ Grade 70
Finish
- Pretreatment: Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
- Finish: (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Storage
- Storage: Tongue-mount Toolbox (hyd. storage)
Options
- Color Other Than Black
- 7 Gauge Floor Upgrade
GX24 Model

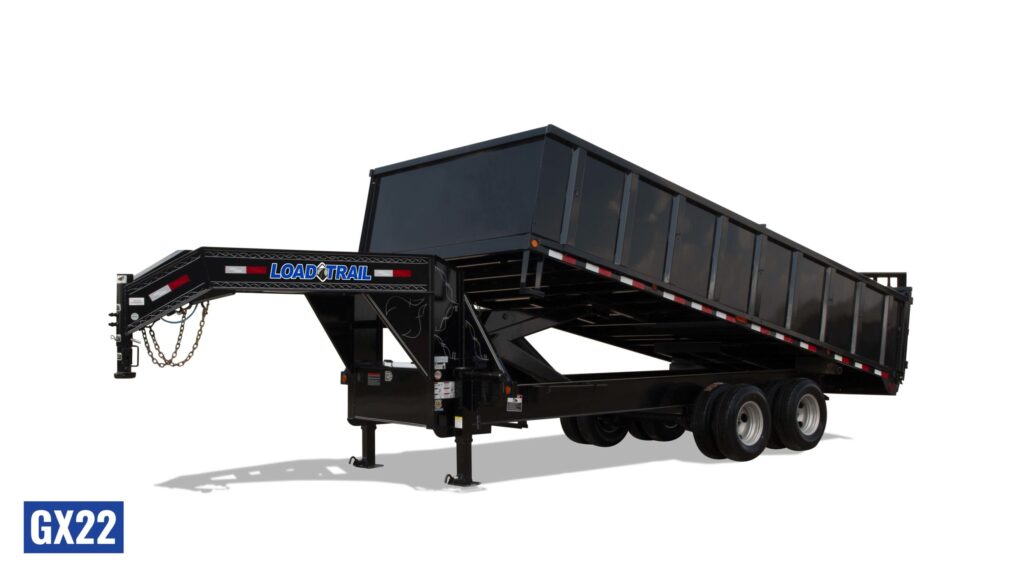

*GX22 Model Shown for Reference
Specifications are for GX24
Standard Specifications
- G.V.W.R: 24,000 lbs
- G.A.W.R: 12,000 lbs / Axle
- Width: 102″
- Length: 16′-22′
Frame & Structure
- Neck: 12” I-Beam
- Frame: 12” I-Beam
- Crossmembers: 10″ I-Beam
- Bed Frame: 2″ x 5″ Tubing
- Bed Crossmembers: 3″ Channel
Axles & Suspension
- Axles: (2) 12,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
- Suspension: Dexter Heavy-Duty Suspension System (HDSS)
- Coupler: 2-5/16″ Adjustable Round Gooseneck
- Jack: (2) 10,000 lb Drop-Leg
Wheels & Tires
- Wheels: 16” 8-Hole Wheels
- Tires: ST235/80 R16 LRE
Body
- Sides: 48″ High, 10 Gauge Removable
- Floor: 10 Gauge Smooth Plate
- Spare: Fold-down Spare Tire Mount (spare included)
- Step: 15″ MAX-Step
Ramps & Gate
- Ramps: 96″ x 16″ Rear Slide-In Ramps
- Gate: 2-Way Spreader Gate
Hydraulics
- Pump: 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
- Controller: 2-Button w/12′ Control Cable
- Battery: 12v Battery w/5amp Trickle Charger
- Cylinder: 6″ x 29″ x 2-3/4″ Cylinder w/Scissor Hoist
Tarp & Tie Downs
- D-Rings: (4) 3″ Weld-on D-Rings
Lights & Wiring
- Lights: LED Stop, Tail, & Clearance Lights
- Wiring: 16 Ga. 5-Way Double-Insulated Wire Harness
- Plug: 7-way Cold Weather Cord
Safety
- Safety Chains: (2) 3/8″ Grade 70
Finish
- Pretreatment: Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
- (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Storage
- Full-width Front Toolbox
Options
- Color Other Than Black
- 7 Gauge Floor Upgrade
