Load Trail 7,000 GVWR Dump Trailers

Load Trail 7,000 GVWR dump trailers are built for reliable, everyday hauling. Ideal for homeowners, landscapers, and small contractors, these single or tandem axle models offer easy loading, strong hydraulic lifts, and durable construction—perfect for dirt, gravel, and debris. Specifications are listed below, and if you have any questions about this dump trailer, feel free to reach out at  (317) 743-0020

Tandem Axle Mini Dump Trailer 7,000 GVWR Cylinder Lift (DE07 Model): Weight – 3,040 lbs, Payload – 3,960 lbs

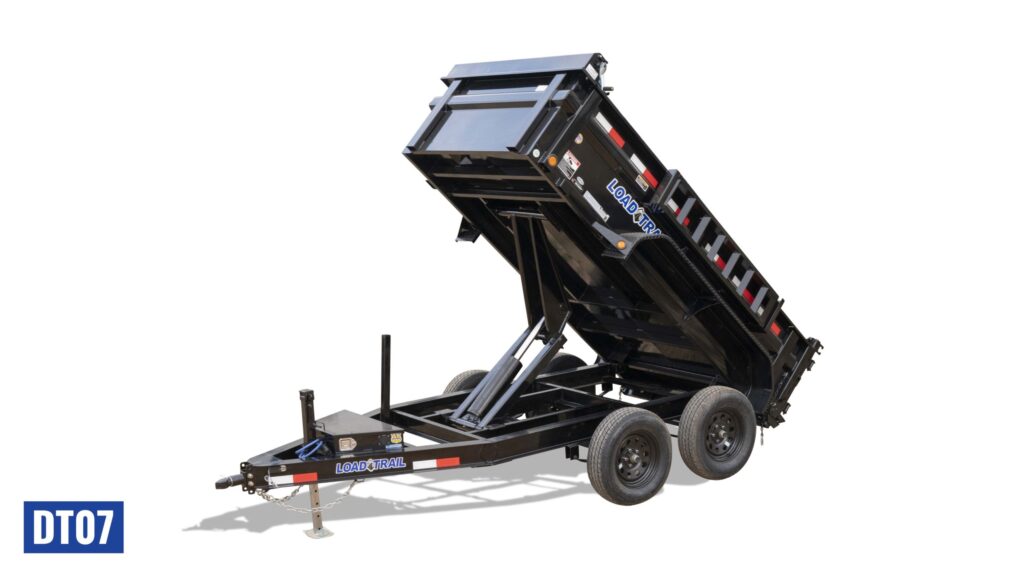

Tandem Axle Mini Dump Trailer 7,000 GVWR Scissor Lift (DT07 Model): Weight – 2,250 lbs, Payload – 4,750 lbs



Electric brake axles are forward-self-adjusting. Manual gravity-down valve included on all dual-acting hydraulic units.  This model does not come with ramps, however, a side-mount ramp option is available or ramps can be ordered. Deck height on the base model is 32″.

*Specifications are for DT07 Model. DE07 Model is similar, but uses a single cylinder to lift the dump bed instead of a scissor lift.

Standard Specifications

  • GVWR: 7,000 lb.
  • GAWR: 3,500 lb. per axle
  • Width: 60″-72″
  • Length: 10′

Frame & Structure

  • 6” I-Beam Frame
  • 6” I-Beam Tongue
  • 5″ Channel Crossmembers
  • 2″ x 4″ Tubing Bed Frame
  • 3″ Channel Bed Crossmembers
  • 10 Gauge Smooth Plate Floor
  • 18″ High, 10 Gauge Sides
  • Steel Diamond Plate Fenders

Axles & Suspension

  • (2) 3,500 lb Dexter Electric Brake Axles (NEV-R-ADJUST)
  • Multi-Leaf Spring Suspension

Coupling & Jack

  • 2” Adjustable Coupler
  • (1) 7,000 lb Drop-Leg Jack
  • (2) 1/4″ Grade 30 Safety Chains

Wheels & Tires

  • 15” 5-Hole Wheels
  • ST205/75 R15 LRC Tires

Hydraulics & Electrical

  • 12v Dual Acting Hydraulic Pump w/ Manual Gravity Down Valve
  • 5″ x 15.75″ x 2″ Cylinder with Scissor Hoist
  • 12v Battery with 5amp Trickle Charger
  • 2-Button Controller with 12′ Control Cable

Gate & Tarp

  • 2-Way Spreader Gate
  • E-Z Lock Mesh Tarp System with Cove

Storage

  • Tongue-Mount Toolbox (Hydraulic Storage)

Lighting & Safety

  • LED Stop, Tail, and Clearance Lights
  • 16 Ga. 5-Way Double-Insulated Wire Harness
  • 7-way Cold Weather Plug

D-rings & Tie Downs

  • (4) 3″ Weld-on D-rings

Finish & Protection

  • Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
  • Sherwin-Williams Powdura OneCure Finish – Primer with Polyester TGIC Gloss Powder Topcoat

Additional Option/s Available

  • Slide In Ramps  – 58″ x 12″ – Ramp Capacity: 5,000 lbs

To view this trailer on Load Trail’s website, click here.
