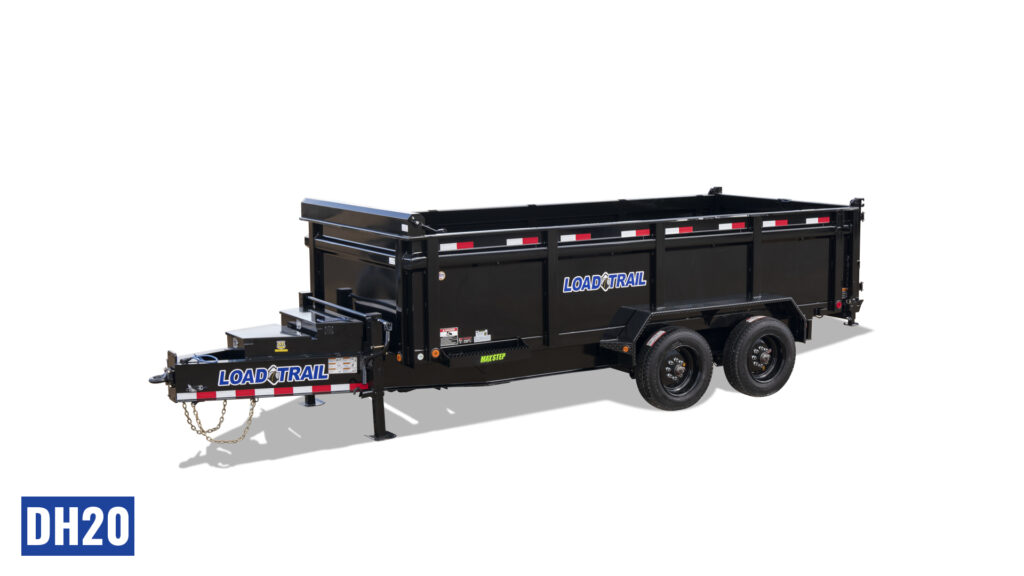

Load Trail 20,000 GVWR Dump Trailers
Load Trail 20,000 GVWR dump trailers are built for serious commercial use, offering high payload capacity and rugged construction. Featuring heavy-duty axles, reinforced frames, and scissor hoist systems, these trailers are designed to handle demanding loads like gravel, debris, or equipment with ease. Models include 24" sides and premium hydraulic components for reliable performance. Whether you're working construction, landscaping, or heavy hauling, these trailers are up to the task. Interested? Call us today (317) 743-0020
Standard Specifications
- G.V.W.R: 20,000 lbs
- G.A.W.R: 10,000 lbs / Axle
- Width: 83″
- Length: 16′-20′
Frame & Structure
- Tongue: 12” I-Beam
- Frame: 12” I-Beam
- Crossmembers: 2″ x 5″ Tubing
- Bed Frame: 2″ x 5″ Tubing
- Bed Crossmembers: 3″ Channel
Axles & Suspension
- Axles: (2) 10,000 lb Dexter Torsion, 2 Electric NEV-R-ADJUST Brake
- Suspension: Torsion
Coupler & Jack
- Coupler: 3″ Pintle
- Jack: (2) 10,000 lb Drop-Leg
Wheels & Tires
- Wheels: 17.5” 8-Hole Wheels
- Tires: ST215/75 R17.5 LRH
Body
- Sides: 24″ High, 10 Gauge w/MAX-Rail
- Floor: 7 Gauge Smooth Plate
- Fenders: Steel Diamond Plate
Ramps & Gate
- Ramps: 96″ x 16″ Rear Slide-In Ramps
- Gate: 2-Way Spreader Gate
Hydraulics
- Pump: 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
- Controller: 2-Button w/12′ Control Cable
- Battery: 12v Battery w/5amp Trickle Charger
- Cylinder: 6″ x 29″ x 2-3/4″ Cylinder w/Scissor Hoist
Tarp & Tie Downs
- Tarp: E-Z Lock Mesh Tarp System w/Cover
- D-Rings: (4) 3″ Weld-on D-Rings
Lights & Wiring
- Lights: LED Stop, Tail, & Clearance Lights
- Wiring: 16 Ga. 5-Way Double-Insulated Wire Harness
- Plug: 7-way Cold Weather Cord
Safety
- Safety Chains: (2) 3/8″ Grade 70
Finish
- Pretreatment: Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
- Finish: (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Storage
- Storage: Tongue-mount 2-Tier MAX-Storage Toolbox
