Load Trail 16,000 GVWR Dump Trailers
Load Trail 16,000 GVWR dump trailers are built for the toughest hauling demands. Featuring tandem 8K axles, heavy-duty scissor lifts, and reinforced steel beds, these trailers handle large loads of rock, concrete, or equipment with ease—perfect for commercial contractors who need maximum strength and performance. Interested? Call us today! (317) 743-0020
Standard Specifications
- G.V.W.R: 16,000 lbs
- G.A.W.R: 8,000 lbs / Axle
- Width: 83″
- Length: 10’–16′
Frame & Structure
- Tongue: 8” I-Beam
- Frame: 8” I-Beam
- Crossmembers: 3-1/2″ x 3-1/2″ Tubing
- Bed Frame: 4″ Channel
- Bed Crossmembers: 3″ Channel
Axles & Suspension
- Axles: (2) 8,000 lb Dexter 2 Electric NEV-R-ADJUST Brake
- Suspension: Multi-Leaf Spring
Coupler & Jack
- Coupler: 2-5/16” Adjustable
- Jack: (1) 10,000 lb Drop-Leg
Wheels & Tires
- Wheels: 17.5” 8-Hole Wheels
- Tires: ST215/75 R17.5 LRH
Body
- Sides: 24″ High, 10 Gauge
- Floor: 10 Gauge Smooth Plate
- Fenders: Steel Diamond Plate
Ramps & Gate
- Ramps: 80″ x 16″ Rear Slide-In Ramps
- Gate: 2-Way Spreader Gate
Hydraulics
- Pump: 12v Dual Acting Hydraulic Pump w/Manual Gravity Down Valve
- Controller: 2-Button w/12′ Control Cable
- Battery: 12v Battery w/5amp Trickle Charger
- Cylinder: 5″ x 15.75″ x 2″ Cylinder w/Scissor Hoist
Tarp & Tie Downs
- Tarp: E-Z Lock Mesh Tarp System w/Cover
- D-Rings: (4) 3″ Weld-on D-Rings
Lights & Wiring
- Lights: LED Stop, Tail, & Clearance Lights
- Wiring: 16 Ga. 5-Way Double-Insulated Wire Harness
- Plug: 7-way Cold Weather Cord
Safety
- Safety Chains: (2) 5/16″ Grade 70
Finish
- Pretreatment: Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
- Finish: (Black) Sherwin-Williams Powdura OneCure, Primer w/Polyester TGIC Gloss Powder Topcoat
Storage
- Storage: Tongue-mount Toolbox (hyd. storage)
Options

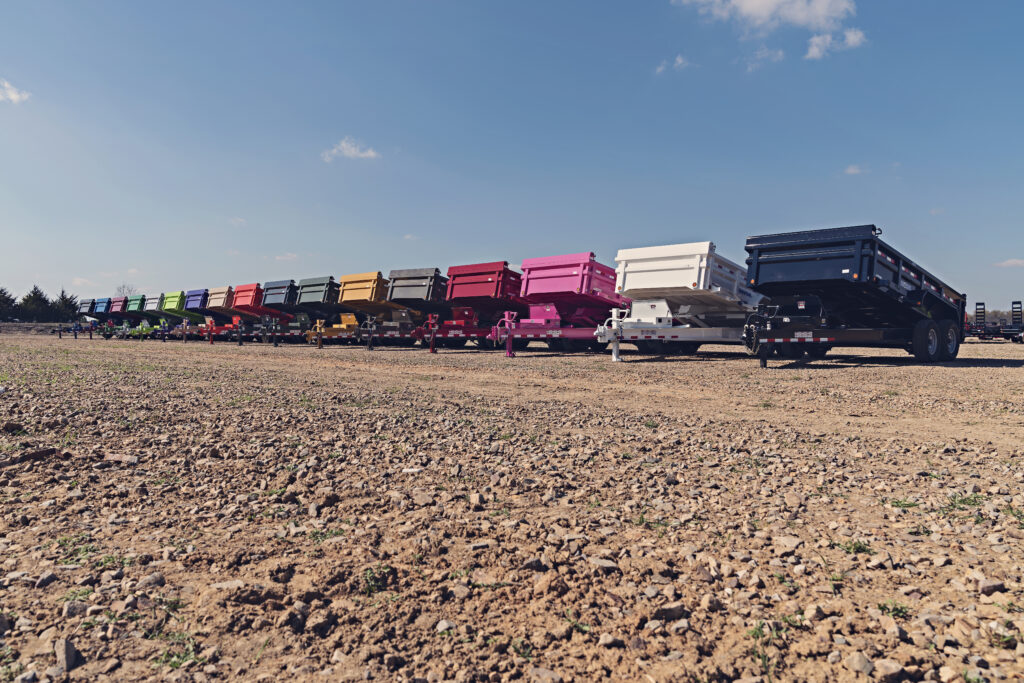

- Color Other Than Black
- 7 Gauge Floor Upgrade
- 36″ Tall Side Walls
- 48″ Tall Side Walls
