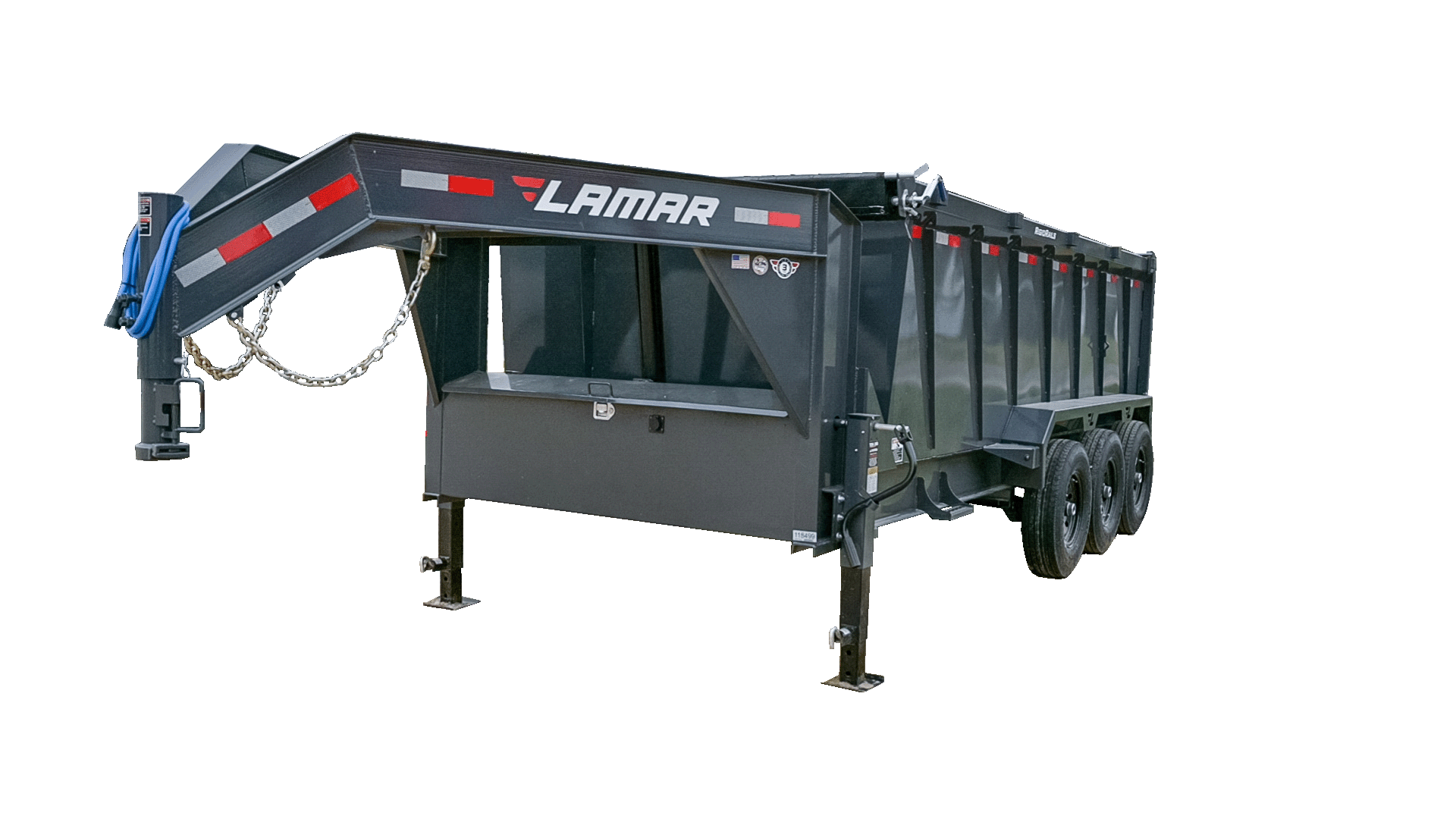

Lamar 21,000 GVWR Dump Trailers
Lamar 21,000 GVWR dump trailers are built to tackle the heaviest jobs with ease. With triple 7,000 lb axles and reinforced construction throughout, these trailers are ideal for hauling large volumes of rock, scrap, or heavy demolition debris. Designed for demanding commercial use, they deliver unmatched strength, stability, and capacity. Call us at (317) 743-0020
Scissor Dump Trailer Sizes & Payloads
-
- DL288316 – 83″x16′: Weight – 5,470 lbs; Payload – 15,530 lbs
Gooseneck Version:
-
- DL288316 – 83″x16′: Weight – 5,970lbs; Payload – 15,030 lbs
To view scissor dump trailers on Lamar’s Website, click here.
Telescopic Dump Trailer Sizes & Payloads
-
- DT288316 – 83″x16′: Weight – 6,075 lbs; Payload – 14,925 lbs
Gooseneck Version:
-
- DT288316 – 83″x16′: Weight – 6,575 lbs; Payload – 15,425 lbs
Standard Specifications
Brakes & Suspension:
- 7K Easy Lube Electric Brake Spring Axles
Tires:
- 235/80 R16 (E)10Ply Tire
- Spare Tire Mount
Frame:
- 10″ 12 lb I-Beam Frame
- 24″ Sides (6 – 8 cubic yards)
- 12″ Spaced Crossmembers
- 7 Gauge Floor
Hitch:
- 2-5/16″ 21K Demco Adjustable Cast Iron Coupler – Bumper Pull
- 2-5/16″ 25K Gooseneck Coupler – Gooseneck
Jack:
- Single 10K Drop-Leg Jack – Bumper Pull
- Dual 10K Drop-Leg Jacks – Gooseneck
Cargo Loading:
- Front Tool Box
- Spreader Gate
- Mesh Tarp with Pull Bar
- Standard Stake Pockets
- Four Weld On D-Rings
- Pair Of Heavy Duty Slide In Ramps (21° Load Angle)
Electrical:
- Led Lights
- 5 Amp Trickle Charger
- 12V Deep Cycle Battery Kit
- Weather Resistant Harness (-65°F)
- 3 Way 12V DC Pump
- 5″ Bore By 20″ Stroke Cylinder (45°) Scissor Dump
- Front Mounted Telescopic Lift (45°) Telescopic Dump
Color:
- Lamar Charcoal Gray Powder Coat
Options:
- 3′ High Sides
- 4′ High Sides
- Single Hydraulic Jack – Bumper Pull
- Dual Hydraulic Jacks – Gooseneck
To view telescopic dump trailers on Lamar’s Website, click here.
