17,600 GVWR Ultimate Dump Trailer

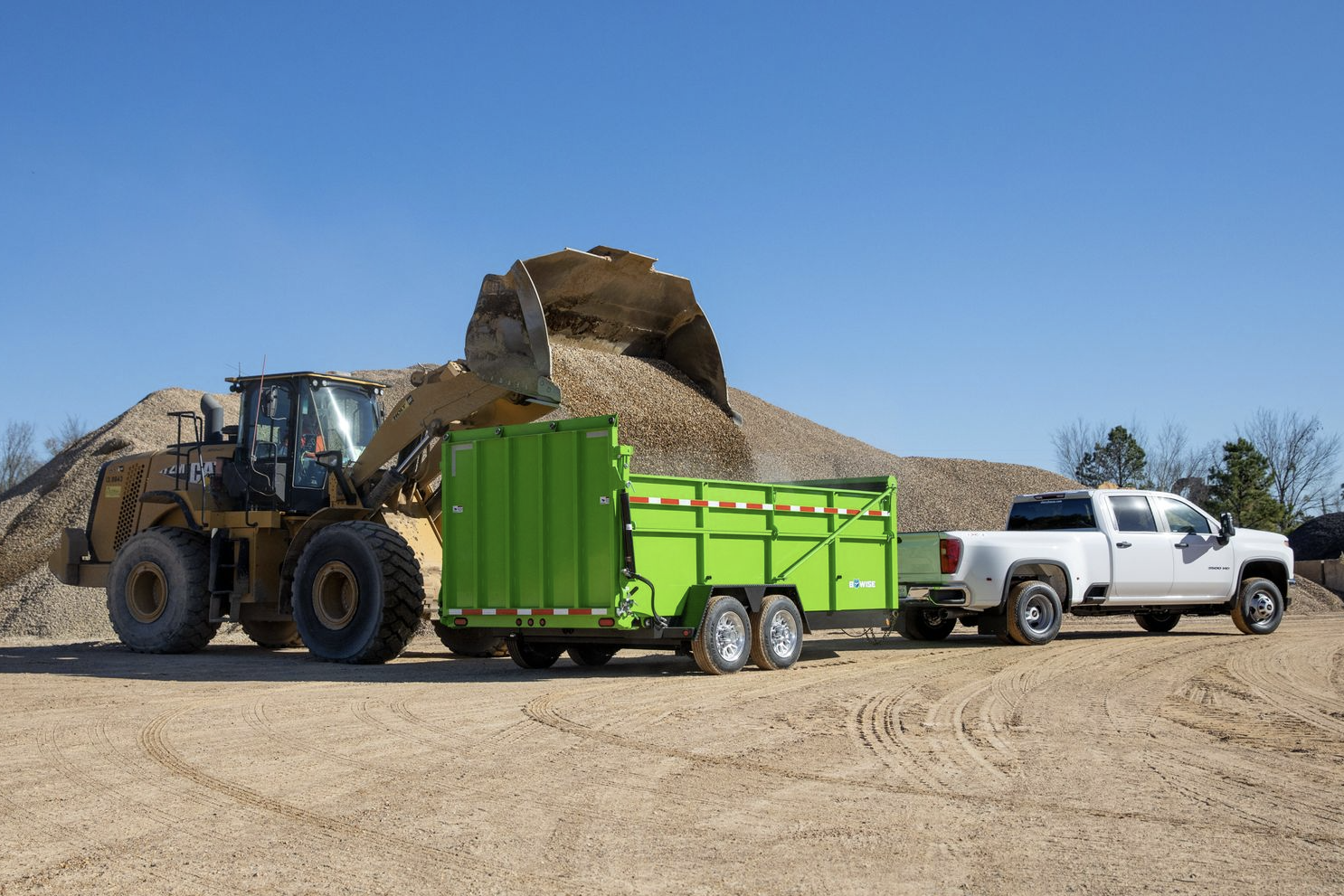

The 17.6K BWISE Ultimate Dump Trailer is designed for maximum efficiency in cargo handling and operation. Equipped with a 2 5/16" adjustable coupler, a 10K hydraulic jack, and rear stabilizer legs, these trailers ensure smooth operation. The spring-loaded tarp system with arms, lockable pump box with a gas shock, and full-height stake pockets add versatility and security. For convenience, the trailer also includes wireless control with two remote key FOBs for easy operation. Find out more about this trailer by calling us at (317) 743-0020
Standard Specifications
Size & Capacity
- Length: 14′-16′
- Width: 82″
- Weight: 5,920 – 6,210 lbs
- Payload: 11,390 – 11,680 lbs
Frame & Structure
- Frame: 8″ Tube Frame
- Crossmembers: 3″ Channel
- Fenders: Treadplate Steel
- Flooring: 10 Gauge One-Piece Steel
- Paint: Powder Coat w/ Two-Tone Options on Select Models
Key Features

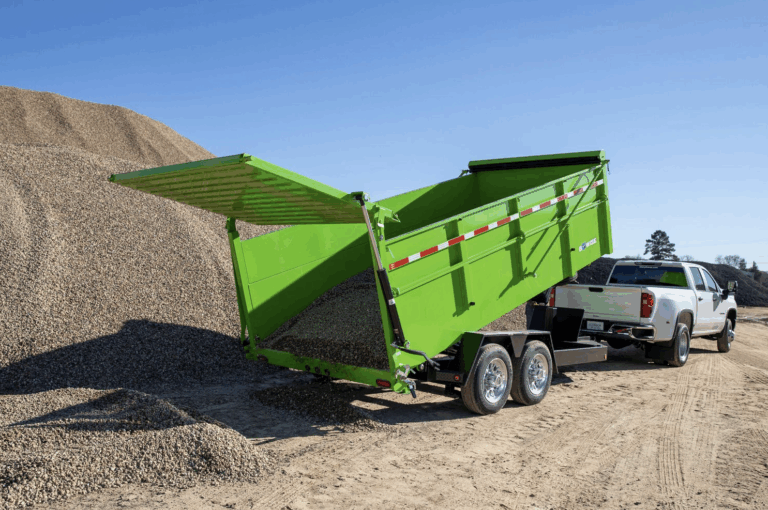

- Dump Gate: 6′ Hydraulic Gate – Acts as a Spreader Gate for Dumping and a Ramp for Loading
- Spring Loaded Tarp W/ Arms
Running Gear
- Axles: 2 – 8,000 lb. 4″ Drop Premium Axles
- Suspension: 7-Leaf Slipper
- Tires: LT215/75R17.5 16 ply Radial
- Wheels: 17.5″ Wheels
Cargo Handling
- Rear Stabilizer Legs
- 6 Side Mount Bolt-On D-Rings
- Spring Loaded Tarp W/ Arms
- Full Height Stake Pockets
- Lockable Pump Box with Gas Shock
- 2 – Remote Key FOBs for Wireless Trailer Operation
Hitch
- 2 5/16″ Adjustable Coupler
Jack
- 10K Hydraulic Jack
Electrical
- Charging: Charge Wire with Circuit Breaker
- Lighting: Rubber Mount Lifetime LED Lights
- Wiring Harness: All-Weather Wiring Harness (7-way RV)
- Battery: GR27 Deep Cycle
Additional Options
- 7 GA Floor
- Electric/Hydraulic Brakes
- Gooseneck Option
- Over 10 Different Colors to Choose From – See Below
